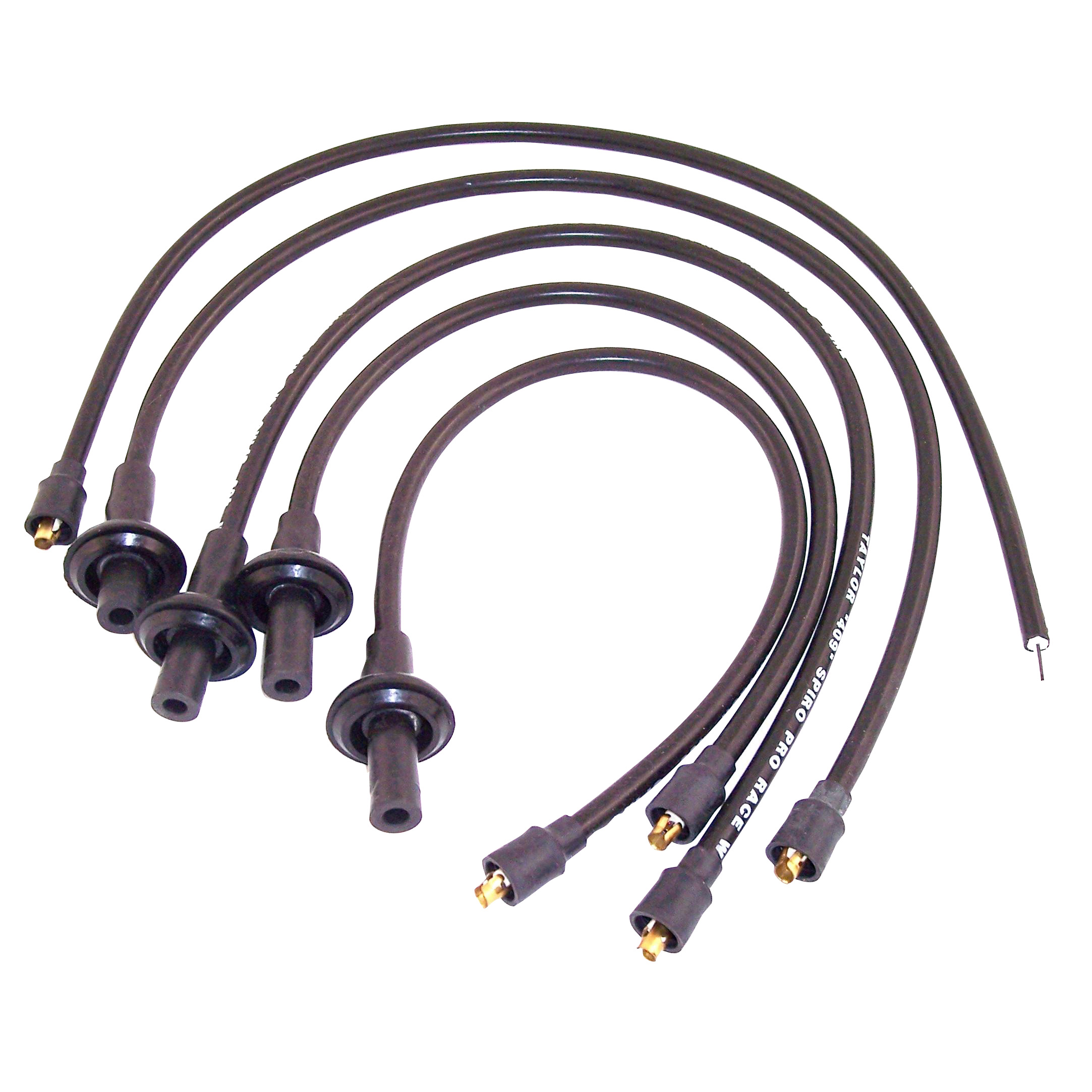

Taylor 409 Spark Plug Wires, 10.4mm, Black, for Type 1 VW

OVERVIEW

When it''s time to stop compromising on your ignition system''s potential, the Taylor 409 Spiro Pro 10.4mm Spark Plug Wires stand as the ultimate heavy-duty solution for the air-cooled Volkswagen Type 1 engine. Designed specifically for high-performance applications, these wires are far from your standard stock replacements. The 10.4mm diameter is massive, providing a level of insulation and RFI suppression that is essential for modern electronic ignition systems, high-output coils, and high-compression race builds. Whether you are running a weekend cruiser or a dedicated drag strip Beetle, the Taylor 409 series ensures that every bit of spark energy reaches the plug without leaking through thin insulation or suffering from high-resistance bottlenecks. The black finish provides a stealthy, professional look in the engine bay while the multi-layer construction protects your spark from the extreme heat cycles inherent to the VW air-cooled environment.

The secret to the Taylor 409''s dominance lies in its sophisticated three-layer construction. It begins with an 8mm silicone wire core that provides the primary path for energy, which is then wrapped in a high-strength woven fiberglass over-braid. This braid adds incredible structural integrity and heat resistance, preventing the wire from stretching or degrading over time. Finally, a thick 10.4mm silicone jacket is applied as the top layer, offering protection against temperatures up to 600 degrees Fahrenheit. This level of shielding is critical in a Type 1 engine where the spark plug wires often rest near hot tinware and exhaust components. By choosing these Taylor wires, you are investing in a product that eliminates cross-fire and voltage leaks, ensuring your VW starts faster, idles smoother, and pulls harder through the entire RPM range.

FITMENT

These Taylor 10.4mm wires are designed for Volkswagen Type 1 based engines with standard upright cooling shrouds. Fitment includes:

• VW Beetle (Sedan & Convertible): 1946 through 1979
• VW Karmann Ghia: 1956 through 1974
• VW Thing (Type 181): 1973 through 1974
• VW Bus / Transporter: 1950 through 1971 (Models equipped with Type 1 upright engines)
• Custom Applications: Dune Buggies, Sand Rails, Trikes, and Kit Cars utilizing a VW Type 1 engine configuration

SPECS

• Wire Diameter: 10.4mm (Oversized for maximum insulation)
• Core Material: 8mm Silicone core with Spiro-Pro spiral wound conductor
• Secondary Layer: Woven fiberglass over-braid for superior strength
• Outer Jacket: High-temperature 10.4mm Silicone
• Color: Satin Black
• Temperature Rating: Heat resistant up to 600 degrees Fahrenheit
• Resistance: Approximately 350 ohms per foot for low-loss energy transfer
• Boot Material: High-dielectric silicone boots for spark plug and distributor ends
• Compatibility: Works with both traditional points-and-condenser and modern electronic ignitions (Pertronix, MSD, etc.)

PRO TIPS

1. Account for the Extra Girth During Installation

It is important to remember that these 10.4mm wires are significantly thicker than the standard 7mm or 8mm wires that came from the factory. As a result, they will not fit into the stock metal wire clips or many of the aftermarket chrome wire looms designed for smaller diameters. We highly recommend using specialized 10mm-11mm plastic wire separators or "combs" to keep the wires organized and prevent them from rubbing against the sharp edges of your engine tin. Proper spacing not only looks better but also prevents inductive cross-fire between the wires, which can cause phantom misfires under high load.

2. Use Dielectric Grease for a Professional Seal

To ensure the longevity of your new Taylor 409 wires and to make future maintenance easier, always apply a small dab of dielectric grease inside the spark plug boots and the distributor cap boots before installation. This grease serves two vital purposes: it prevents the silicone boots from "vulcanizing" or sticking to the porcelain of the spark plug due to engine heat, and it creates a moisture-proof seal that prevents arcing. This is especially critical in the tight, hot confines of a VW engine bay where moisture or road grime can lead to carbon tracking and ignition failure.

3. Pair with a High-Output Coil for Maximum Benefit

While these wires will work perfectly fine with a stock ignition system, they are truly built to handle the massive voltage of high-performance coils like the Pertronix Flame-Thrower or MSD Blaster series. If you are still running a stock 12V coil, you aren''t fully utilizing the insulation capabilities of the 10.4mm jacket. By upgrading your coil and opening up your spark plug gaps slightly (check your specific ignition manufacturer''s recommendations), you can take full advantage of the Taylor 409''s low-resistance core to deliver a fatter, hotter spark that improves fuel combustion and throttle response.
