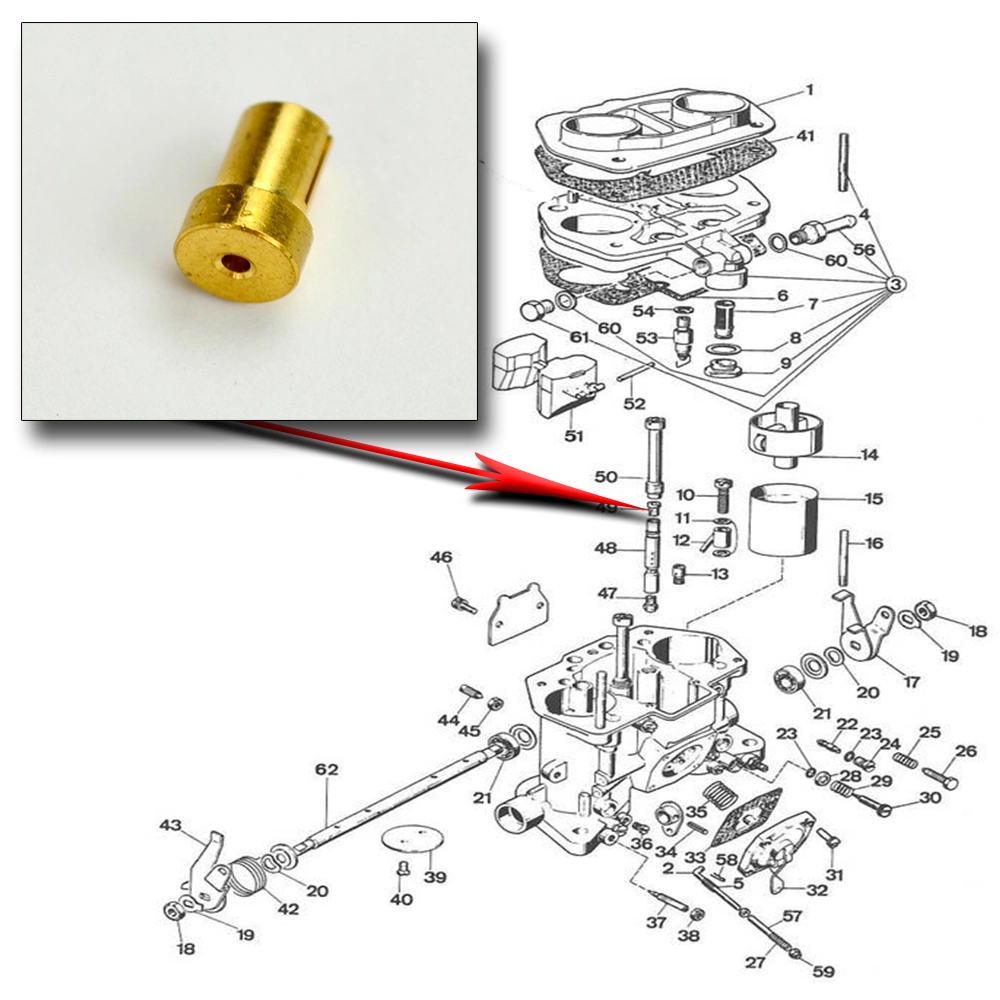

Weber IDF Air Jet 100

OVERVIEW

Precision is the hallmark of a perfectly tuned air-cooled engine, and when it comes to the legendary Weber IDF series, every component plays a vital role in achieving that crisp throttle response and optimal power band. The EMPI Weber IDF Air Jet 100 is a critical piece of the fuel-delivery puzzle, specifically designed to control the amount of air that mixes with fuel inside the emulsion tube at higher engine speeds. Whether you are running a classic 1600cc daily driver or a high-revving 2275cc stroker, the air jet acts as a fine-tuning instrument for your main circuit. By selecting the .100 size, you are targeting a specific enrichment curve that ensures your engine doesn''t lean out or stumble as the venturis reach maximum velocity. Appletree Automotive understands that "close enough" isn''t good enough for VW enthusiasts, which is why we provide genuine-spec EMPI components that offer the repeatability and accuracy required for professional-grade carburetor synchronization.

Tuning a dual-carburetor setup can be one of the most rewarding upgrades for your Volkswagen, but it requires a deep understanding of how air and fuel interact. The air jet works in inverse proportion to the main jet; while a larger main jet adds fuel, a smaller air jet (like this 100) richens the mixture by allowing less air to dilute the fuel charge at high speeds. This .100 air jet is often the "secret sauce" for engines that need a bit more punch in the upper registers or are operating at specific altitudes where air density is a factor. Crafted from high-quality brass to resist corrosion and maintain precise tolerances over years of heat cycles, this jet is a must-have for any toolbox or tuning kit. Don''t let a flat spot in your acceleration ruin your driving experience; swap in these precision-drilled EMPI jets and feel the difference that proper calibration makes in your Bug, Bus, or Ghia.

FITMENT

This air jet is designed for use with Weber IDF series carburetors and their high-quality EMPI HPMX equivalents. It is compatible with the following vehicles when equipped with these carburetor systems:

• Volkswagen Beetle: 1950 through 1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Transporter: 1950 through 1979 (Type 2)
• Volkswagen Type 3: 1961 through 1973 (Squareback, Fastback, Notchback)
• Volkswagen Thing: 1973 through 1974
• Porsche 914: 1970 through 1976 (When converted to Weber IDF carburetors)
• Custom Rail Buggies and Sand Rails: All years using Type 1 or Type 4 upright engines

SPECS

• Manufacturer: EMPI
• Carburetor Compatibility: Weber IDF 40, 44, and 48 Series
• Alternative Compatibility: EMPI HPMX Series
• Jet Size: 100 (1.00mm Orifice)
• Material: High-Quality Precision Machined Brass
• Thread Pitch: M6 x 0.75mm
• Function: Controls air volume in the high-speed/main circuit
• Quantity: Sold Individually (Sold per piece)
• Part Number: 77401.100

PRO TIPS

Tip 1: Understanding the Air-to-Fuel Relationship

When tuning your Weber IDF, remember that the air jet primarily affects the top end of the RPM range. If your engine feels like it is "falling on its face" or leaning out at high speeds, a smaller air jet like the 100 will richen the mixture by reducing the amount of air bleeding into the emulsion tube. Conversely, if the engine is "blubbery" or blowing black smoke at high RPM, you may need to go to a larger air jet. Always tune your main jets first to get the mid-range right, then use the air jets to "lean out" or "richen up" the very top of the power curve. It''s a delicate balance that requires patience and a good set of spark plug readings.

Tip 2: Handling and Installation of Brass Components

Brass is a soft metal, and these jets are precision instruments. When installing or removing the EMPI Weber IDF Air Jet 100, always use a hollow-ground screwdriver that fits the slot perfectly. Using a standard tapered screwdriver can "mar" the top of the jet or even create small brass shavings that can fall into the emulsion tube and clog your main circuit. You don''t need to over-tighten these; just a snug fit is enough to ensure they stay seated. If you are changing jets frequently while at the track or dyno, keep a small magnetic tray handy so you don''t lose these small components in the engine tin or the dirt.

Tip 3: The Importance of Clean Air and Fuel

Even the most perfectly selected air jet won''t perform if it becomes clogged with debris. Because the air jet sits at the top of the carburetor stack, it is susceptible to dust and debris if you aren''t running high-quality air filters. Periodically remove your air jets and blow them out with compressed air or carburetor cleaner to ensure the 1.00
