Weber IDF Main Jet 110

Precision Tuning with the Weber IDF Main Jet 110

When it comes to extracting every ounce of horsepower and ensuring the longevity of your air-cooled engine, precision fuel delivery is non-negotiable. The EMPI Weber IDF Main Jet 110 is a critical component for enthusiasts looking to dial in their air-fuel ratios with surgical accuracy. Whether you are running a classic Beetle, a rugged Transporter, or a sleek Karmann Ghia, your carburetor''s main jet is the heart of the high-speed circuit. A 110 main jet is often the "sweet spot" for smaller displacement engines or those operating at higher altitudes where the air is thinner. By choosing a high-quality EMPI component from Appletree Auto, you are ensuring that your Weber IDF or EMPI HPMX carburetor operates with the consistency required for both daily driving and spiritied weekend cruises. Don''t let a "close enough" tune-up hold back your performance; the right jetting prevents flat spots in acceleration and protects your air-cooled VW from the dangers of running too lean.

At Appletree Auto, we know that the difference between a trophy-winning engine and one that struggles at the stoplight is found in the details. These precision-machined brass jets are designed to provide a consistent flow rate, which is essential when balancing dual-carburetor setups. The 110 size refers to a 1.10mm orifice, meticulously drilled to meet exacting tolerances. In the world of air-cooled Volkswagens, heat is the enemy, and fuel is a primary coolant. If your main jet is too small, your combustion temperatures will skyrocket, leading to cracked heads or melted pistons. Conversely, if it is too large, you''ll foul plugs and waste fuel. This Weber IDF Main Jet 110 allows you to fine-tune your fuel curve to match your specific engine displacement, camshaft profile, and venturi size. It is a small investment that yields massive returns in throttle response, fuel economy, and overall engine reliability.

Vehicle Fitment and Compatibility

This Weber IDF Main Jet 110 is designed for use in dual-carburetor systems commonly found on the following air-cooled Volkswagen models equipped with Weber IDF or EMPI HPMX carburetors:

• Volkswagen Type 1: Beetle and Super Beetle (1950-1979)
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (1961-1973)
• Volkswagen Type 14: Karmann Ghia (1955-1974)
• Volkswagen Type 181: Thing (1973-1975)
• Porsche 356 & 912: Often retrofitted with Weber IDF series carburetors
• Custom Rail Buggies & Sand Rails: Utilizing air-cooled VW powerplants

Technical Specifications

The following technical details ensure this jet meets the rigorous demands of your performance air-cooled engine:

• Brand: EMPI

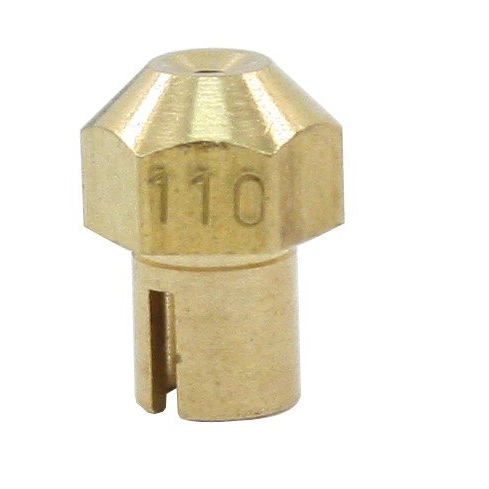

• Part Number: 73401.110
• Jet Type: Weber IDF Main Jet
• Orifice Size: 110 (1.10mm)
• Material: High-grade machined brass for corrosion resistance and flow consistency
• Compatibility: Fits Weber IDF 40, 44, and 48mm carburetors
• Secondary Compatibility: Fits EMPI HPMX 40, 44, and 48mm carburetors

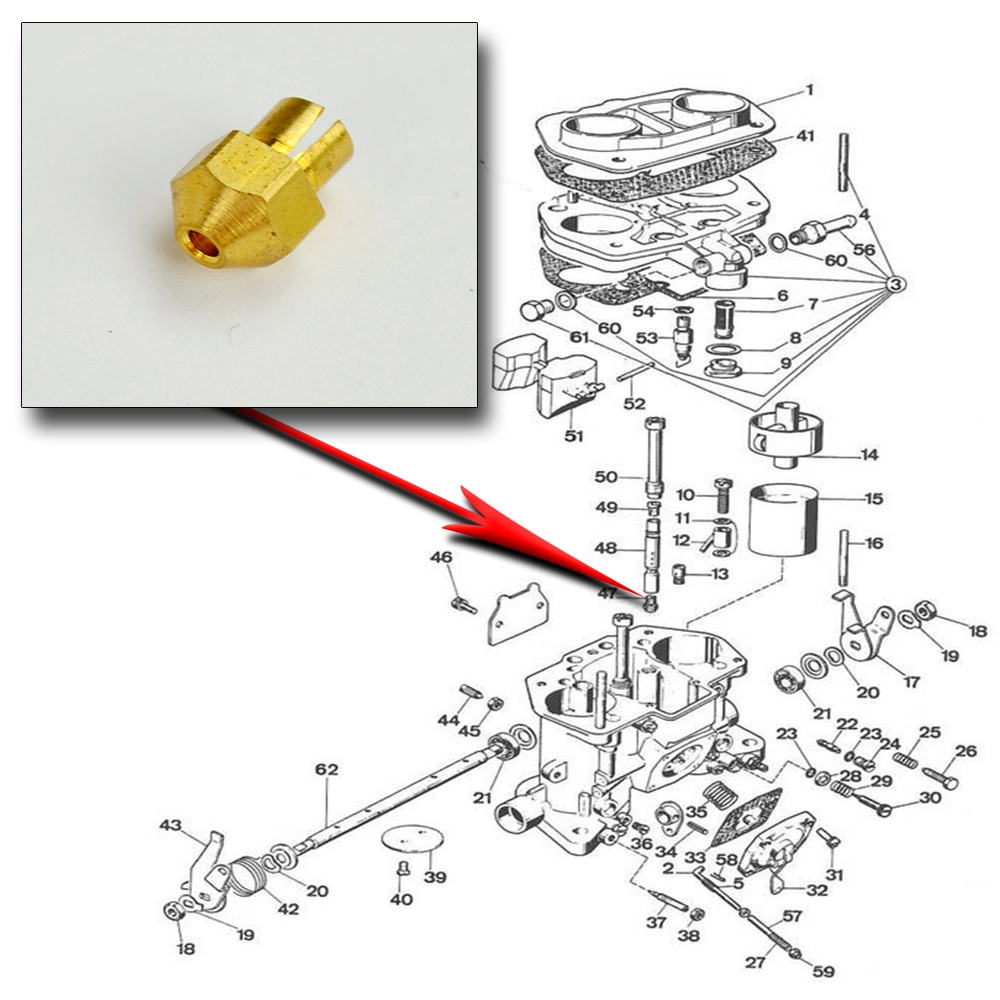

• Application: Controls fuel flow in the main/high-speed circuit
• Quantity: Sold individually (Note: Dual carb setups usually require four main jets)

Master Specialist Pro Tips for Proper Jetting

Tip 1: The Rule of Elevation and Air Density

If you are finding that your VW is "blubbering" or running rich at high altitudes, switching to a 110 main jet can be the perfect solution. As you go up in elevation, the air becomes less dense, meaning you need less fuel to maintain the ideal 12.5:1 to 13.5:1 air-fuel ratio under load. A 110 jet is significantly smaller than the standard 130 or 135 jets often found in out-of-the-box 40mm IDFs. Always remember: Leaner at the top of the mountain, richer at sea level. If you are tuning at sea level, a 110 jet is typically reserved for engines under 1600cc with small venturis.

Tip 2: Reading the Spark Plugs for Success

To verify if the 110 jet is correct for your specific engine, perform a "plug chop." Take your VW out to a safe stretch of road, accelerate through the gears, and hold a steady high-RPM load for about 10 seconds. Immediately shut off the engine and coast to a stop. Pull your spark plugs and inspect the ceramic insulator. A light tan or "coffee with cream" color indicates your 110 main jet is perfectly matched. If the plug is white or blistered, you are too lean and need to step up to a 115 or 120. If it is black and sooty, you may need to look at your air correctors or drop even lower in jet size.

Tip 3: The Synergy of the Main Jet and Air Corrector

Never view the main jet in isolation. The Weber IDF system works on a balance between the main jet (which supplies fuel) and the air corrector jet (which bleeds air into the emulsion tube). If you install this 110 main jet and find that the car runs great at 3,000 RPM but starts to lean out at 5,000 RPM, you may need to reduce the size of your air corrector. The 110 main jet sets the baseline for the fuel curve, while the air corrector "shapes" that curve as the engine speed increases. Always ensure your emulsion tubes are clean and free of debris when swapping jets to ensure the fuel atomizes correctly.
