H-Beam Connecting Rods, 5.4 Long, Chevy Journal

OVERVIEW

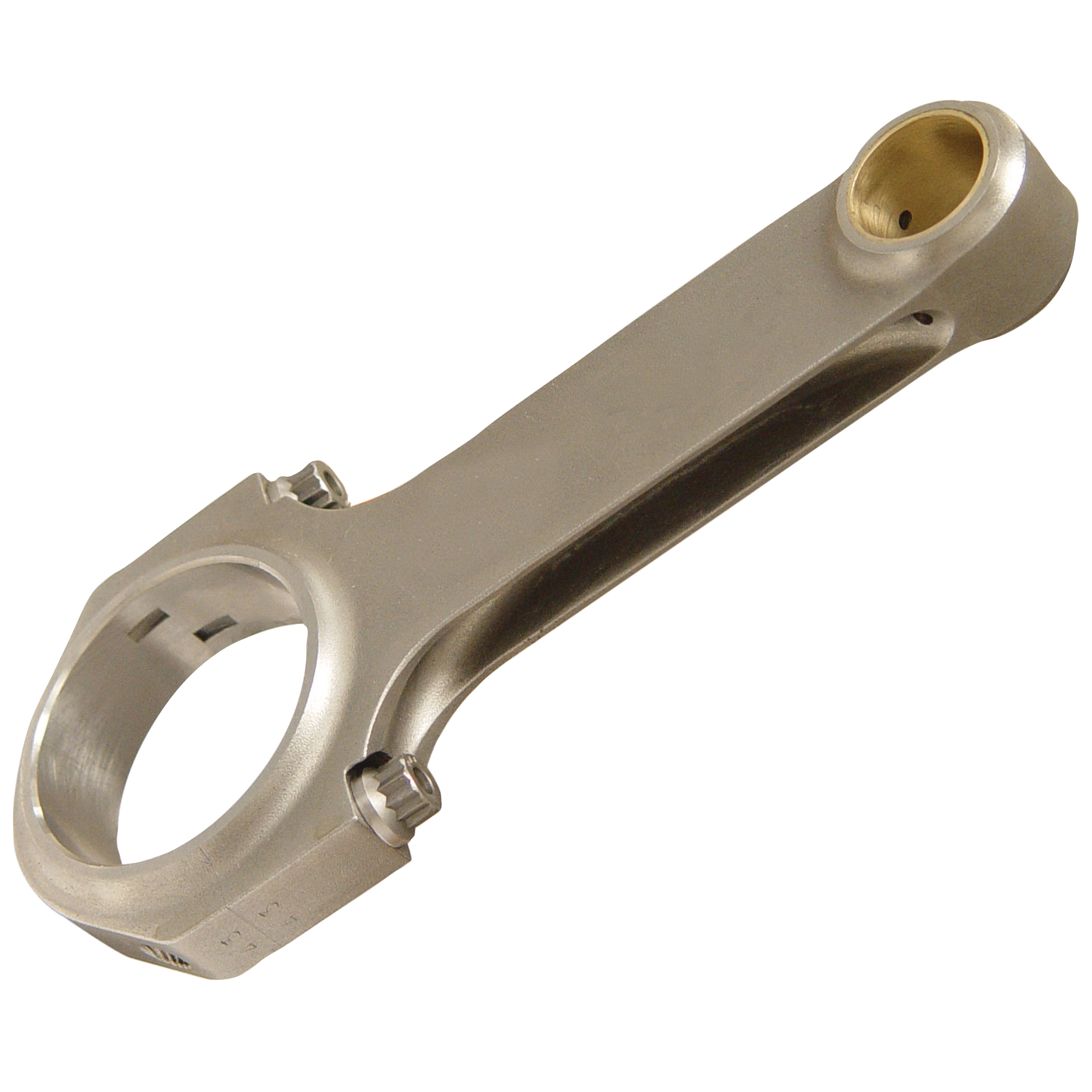

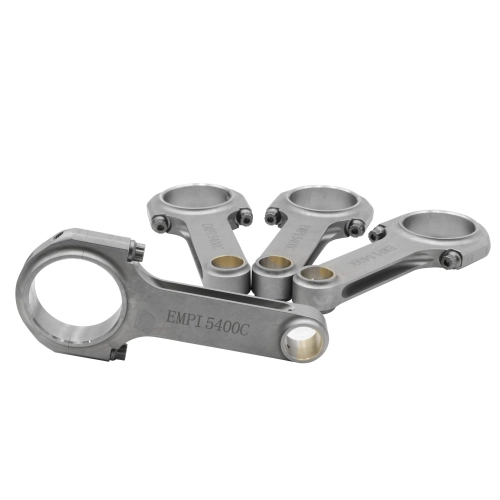

When you are building a high-performance air-cooled engine, the connecting rods are the literal backbone of your rotating assembly. These EMPI H-Beam Connecting Rods are engineered specifically for the enthusiast who demands more than what a standard I-beam can offer. Forged from high-strength 4340 chromoly steel, these rods provide an exceptional strength-to-weight ratio that is essential for high-RPM stability and turbocharged or high-compression naturally aspirated builds. The H-Beam design inherently resists the bending and twisting forces that occur at peak cylinder pressure, ensuring that your engine maintains its geometry even under the most grueling racing conditions. By utilizing a 5.400-inch length, these rods offer a slightly improved rod-to-stroke ratio over stock, which reduces side-loading on the cylinder walls and helps your engine run smoother and last longer.

One of the most significant advantages of this specific set is the Chevy 2.000-inch journal diameter combined with radiused rod caps. In the world of stroker VW engines, clearance is everything. The smaller Chevy journal allows for a larger stroke on the crankshaft while providing more room between the rod cap and the camshaft. EMPI has taken this a step further by radiusing the caps, which significantly reduces the amount of grinding and clearancing required on the engine case. This preserves the structural integrity of your magnesium or aluminum case while saving the engine builder hours of tedious labor. These rods come equipped with high-tensile 5/16-inch forged bolts, ensuring that the big-end stays round and secure even when you are winding the needle past 7,000 RPM. Whether you are building a weekend canyon carver or a dedicated drag strip contender, these rods deliver the peace of mind that only professional-grade hardware can provide.

FITMENT

These connecting rods are designed for high-performance VW Type 1 based engines. Please note that these require a crankshaft with Chevy 2.000-inch journals.

• Volkswagen Beetle: 1950 through 1979 (Sedan and Convertible)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Type 2: 1950 through 1971
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• Volkswagen Thing: 1973 through 1974
• Custom Applications: Ideal for Sand Rails, Dune Buggies, and Baja Bugs using Type 1 engine cases.

SPECS

• Material: Forged 4340 Chromoly Steel
• Rod Design: H-Beam High Performance
• Rod Length: 5.400 Inches (Center-to-Center)
• Crankshaft Journal: Chevy 2.000 Inch
• Wrist Pin Diameter: 22mm (Standard VW)
• Bolt Size: 5/16 Inch High-Tensile Forged Bolts
• Cap Style: Radiused for Stroker Clearance

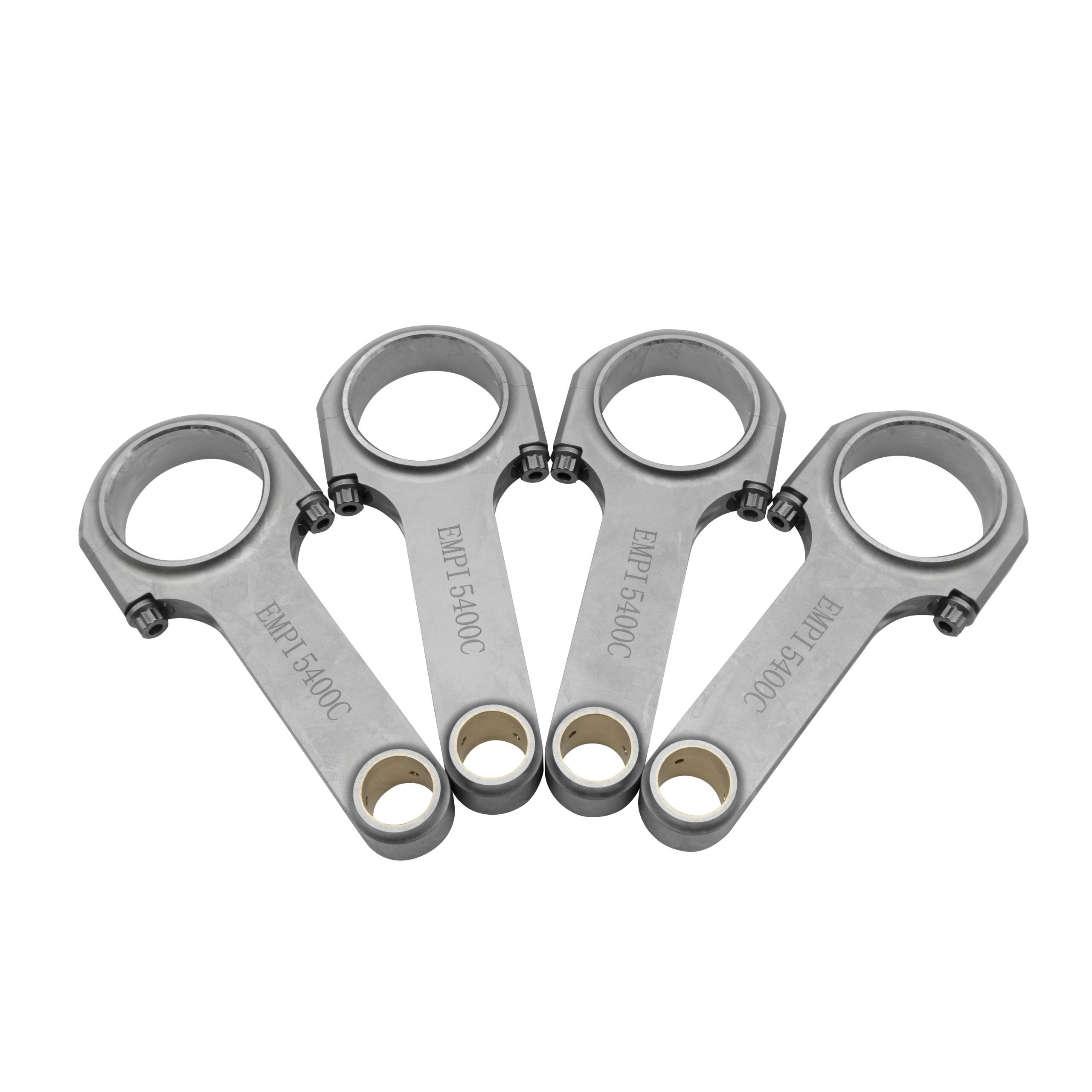

• Weight: Balanced in matched sets of four
• Finish: Shot-peened for fatigue resistance

PRO TIPS

1. Always Verify Rotational Clearance

Even though these EMPI rods feature radiused caps designed to minimize clearancing, you must never assume they will clear your camshaft or engine case automatically. During the long-block mock-up phase, install the crankshaft and rods without the pistons or rings and rotate the assembly slowly. Check the distance between the rod bolts and the camshaft lobes, especially if you are running a high-lift cam. We recommend a minimum clearance of .060 inches. If things are too tight, you may need a small-base circle camshaft or additional clearancing on the case webs. Taking the time to dry-fit now prevents a catastrophic failure later.

2. Proper Torque and Lubrication is Non-Negotiable

The 5/16-inch forged bolts included with these rods are the primary fasteners holding your engine together. To achieve accurate clamping force, you must use a high-quality assembly lubricant like ARP Ultra-Torque on the threads and the underside of the bolt head. Do not use standard engine oil, as it leads to inconsistent friction and improper stretch. For these 5/16-inch bolts, the standard torque spec is typically 28 to 30 ft-lbs, but always check the specific instructions included with your set. If you have access to a rod stretch gauge, that is the preferred method for ensuring the bolt is in its elastic power-band.

3. Match Your Components Correctly

Remember that these are Chevy Journal rods, not standard VW Journal rods. A standard VW rod journal is approximately 2.165 inches (55mm), whereas these are 2.000 inches. You cannot install these on a stock VW crankshaft. When ordering your crankshaft, you must specify a Chevy Journal option. Using the Chevy journal is a pro-level move because it allows for a more aggressive stroke while keeping the rotating mass lighter and providing more clearance inside the case. Ensure your rod bearings are also spec''d for Chevy 2.000-inch journals to match this set perfectly.
