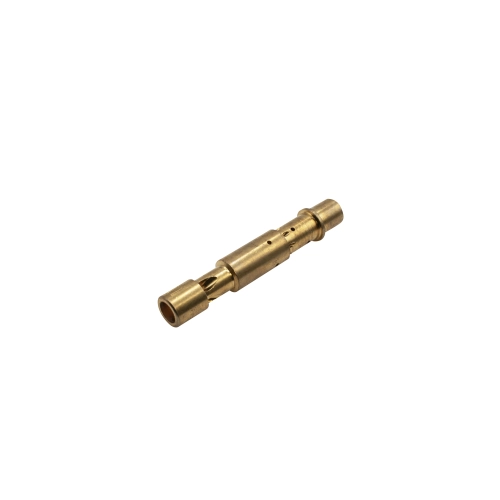

Emulsion Tube, F11, for IDF, HPMX, DCOE DCO, EPC Carbs

Product Overview: Precision Tuning for Your Dual Carburetor Setup

When it comes to dialing in the performance of your air-cooled VW, the emulsion tube is often the most misunderstood yet critical component in your fuel delivery system. The EMPI F11 Emulsion Tube is engineered to provide the perfect bridge between your main jet and your air corrector jet, ensuring that the transition from the idle circuit to the high-speed circuit is seamless and stutter-free. Whether you are running a set of Weber IDF carburetors on a street-prowling Beetle or EMPI HPMX units on a high-revving sand rail, the F11 profile is widely considered the industry standard for most performance applications. It works by mixing air into the fuel stream to create a finely atomized froth, which allows the engine to respond instantly to throttle inputs without the dreaded mid-range flat spot that plagues poorly tuned engines. By choosing a high-quality EMPI component, you are ensuring that your venturi receives a consistent mixture, regardless of the atmospheric conditions or engine load.

At Appletree Automotive, we know that serious engine builders demand precision, and these F11 emulsion tubes deliver exactly that. Precision-machined from high-grade brass, these tubes feature the exact hole patterns and diameters required to meet the original Weber specifications. The F11 series is particularly favored in the air-cooled community because it delays the enrichment of the main circuit just enough to prevent a rich "gulp" of fuel, providing a linear power curve that feels smooth from 2,500 RPM all the way to redline. If you find your engine "hunting" for the right mixture during cruising speeds or if you''re struggling to get your dual-carb setup balanced, swapping to a fresh set of F11 tubes can often be the "silver bullet" for your tuning woes. Don''t settle for "close enough" when it comes to your fuel calibration; equip your IDF, HPMX, or DCOE carburetors with the components designed to handle the unique demands of the Volkswagen flat-four engine.

Vehicle and Carburetor Fitment

This F11 Emulsion Tube is designed for use in a wide variety of performance carburetors commonly found on air-cooled Volkswagens, Porsches, and custom kit cars. It is compatible with the following carburetor models and vehicle applications:

• Compatible Carburetor Models: Weber IDF (40, 44, 48), Weber DCOE, Weber DCO, EMPI HPMX (40, 44, 48), and EMPI EPC (48, 51) series.
• Volkswagen Type 1: Beetle, Super Beetle, and Karmann Ghia (typically 1600cc to 2332cc performance builds).
• Volkswagen Type 2: Bus, Transporter, and Westfalia (Dual carb conversions for improved torque).
• Volkswagen Type 3: Squareback, Fastback, and Notchback.
• Volkswagen Type 181: The Thing.
• Off-Road Applications: Dune Buggies, Sand Rails, Baja Bugs, and Manx-style shells.
• Porsche Applications: 356 and 912 models utilizing Weber or Solex-to-Weber conversions.

Technical Specifications and Materials

Every EMPI F11 Emulsion Tube is manufactured to strict tolerances to ensure uniformity across all cylinders of your engine. Consistency is the key to a balanced dual-carburetor synchrony.

• Material: Heavy-duty, corrosion-resistant 360 series brass.
• Tuning Profile: F11 (Optimized for mid-range transition and high-speed stability).
• Part Number: 43-5678-0.
• Application Type: Main circuit emulsion.
• Compatibility: Interchangeable with original Weber part numbers.
• Hole Pattern: Precision-drilled lateral ports for optimal air-to-fuel emulsification.
• Sold As: Individually (Sold Each).
• Installation Location: Sits directly beneath the air corrector jet in the carburetor body.

Pro Tips from the Appletree Tech Bench

Pro Tip 1: Avoid Wire Cleaning Tools

When cleaning your carburetors, never use a steel wire or a welding tip cleaner to clear the holes in your F11 emulsion tube. Brass is a relatively soft metal, and even a tiny scratch or an infinitesimal enlargement of a port can completely change the flow characteristics of the tube. This leads to an unbalanced engine where one cylinder runs richer or leaner than the others. Always use pressurized aerosol carb cleaner and compressed air to clear obstructions. If a tube is heavily corroded or the holes are gummed up beyond the reach of chemicals, it is always cheaper and more effective to replace the tube entirely rather than trying to "save" it with mechanical scraping.

Pro Tip 2: Matching Your Air Corrector Jets

The F11 emulsion tube works in a "tug-of-war" relationship with your air corrector jets. If you are experiencing a lean stumble at high RPMs even with the correct main jet, don''t immediately assume the emulsion tube is at fault. Check that your air corrector jet is properly seated on top of the F11 tube. A loose air corrector can allow "unmetered" air to bypass the tube, leaning out the mixture and causing potential engine damage. When installing, ensure the tube drops freely into the well and that the air corrector is snug, creating a perfect seal that forces all air to travel through the calibrated ports of the F11.

Pro Tip 3: The Importance of Synchronization

If you are replacing an emulsion tube in a dual-carburetor setup, we strongly recommend replacing the tubes in all barrels at the same time. Over years of use, fuel additives and heat cycles can slightly tarnish the interior of the tubes. By installing a fresh, matched set of EMPI F11 tubes across both carburetors, you eliminate one more variable when you go to synchronize your carbs with a Uni-Syn or a snail-style flow meter. A balanced engine runs cooler, lasts longer, and provides the crisp exhaust note that air-cooled VW enthusiasts live for. Don''t cut corners by replacing just one; treat your engine to a complete set for the best possible results.
