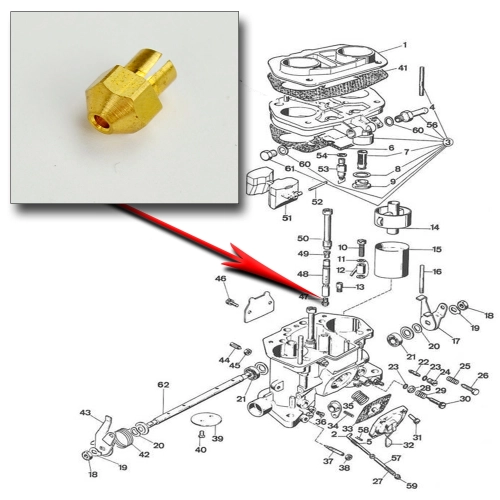

Weber IDF Main Jet 160

OVERVIEW

Precision tuning is the heartbeat of a high-performance air-cooled engine, and the EMPI Weber IDF Main Jet 160 is a critical component for achieving that perfect stoichiometric balance. When you are pushing your flat-four to its limits, the main jet takes over from the idle circuit to manage fuel delivery during mid-to-high RPM operation and wide-open throttle transitions. A 160 main jet provides a substantial fuel flow, making it a popular choice for larger displacement engines or those running aggressive camshaft profiles where a leaner jet might cause dangerous cylinder head temperatures. At Appletree Automotive, we know that "close enough" isn''t good enough for your VW''s longevity; these precision-machined brass jets ensure that your fuel curve remains consistent, preventing the lean-out conditions that lead to burnt valves and melted pistons.

Whether you are running a classic set of Italian Webers or the modern EMPI HPMX equivalents, these jets are engineered for exact calibration and repeatability. The 160 sizing refers to a 1.60mm orifice, meticulously drilled to ensure that every jet in your dual-carb setup flows identical volumes of fuel. This consistency is vital for balancing your banks, ensuring that cylinder number three isn''t running hotter than cylinder number one. Integrating these jets into your Weber 40, 44, or 48 IDF carburetors allows you to fine-tune your air-fuel ratio based on altitude, humidity, and engine load. Don''t settle for a generic tune-up when you can dial in your engine with the same parts used by professional VW engine builders across the globe.

FITMENT

The Weber IDF Main Jet 160 is compatible with a wide range of air-cooled Volkswagen models and performance carburetor configurations, including:

• Volkswagen Type 1: Beetle and Super Beetle (1946-1979)
• Volkswagen Type 2: Bus, Transporter, and Kombi (1950-1979)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (1961-1973)
• Volkswagen Karmann Ghia: (1955-1974)
• Volkswagen Thing: Type 181 (1973-1975)
• Carburetor Compatibility: Weber IDF 40, Weber IDF 44, and Weber IDF 48
• Alternative Compatibility: EMPI HPMX Series Carburetors

SPECS

Technical specifications for the 73401.160 Main Jet:

• Jet Size: 160 (1.60mm Orifice)
• Material: High-Quality Machined Brass
• Thread Type: Standard Weber IDF Main Jet Pitch
• Application: Main Fuel Circuit (High Speed)
• Quantity: Sold Individually
• Manufacturer: EMPI
• SKU: 73401.160

PRO TIPS

Tip 1: The Venturi Correlation

When selecting your main jet, a master-level rule of thumb is to start with a main jet size that is approximately 4 to 4.5 times the size of your venturi (carburetor throat) diameter. For example, if you are running 36mm venturis in a Weber 44 IDF, a 160 main jet is an excellent starting point for a performance 1914cc or 2110cc engine. However, always remember that air corrections and emulsion tubes will also influence the final requirements of your main jet circuit.

Tip 2: Reading the "Plug" for High-Speed Tuning

To verify if the 160 main jet is the correct choice for your specific build, perform a "plug chop." Accelerate through third gear until you reach the high RPM range, hold it for a few seconds, then safely kill the ignition and coast to a stop. Pull your spark plugs and inspect the porcelain. A light tan color indicates a perfect 160 fitment, while a white, blistered appearance suggests you might need to jump up to a 165 or 170 to prevent a lean condition under load.

Tip 3: Cleanliness During Installation

Even the smallest microscopic burr or piece of debris can partially clog a 1.60mm orifice, wreaking havoc on your engine''s synchronization. When swapping jets, always use a dedicated jet driver or a properly sized flat-head screwdriver to avoid marring the soft brass. Before installation, blast the jet with a quick shot of carb cleaner and compressed air. Never use a wire or a drill bit to clean a jet, as this will alter the flow characteristics and ruin the precision calibration of the 160 sizing.
