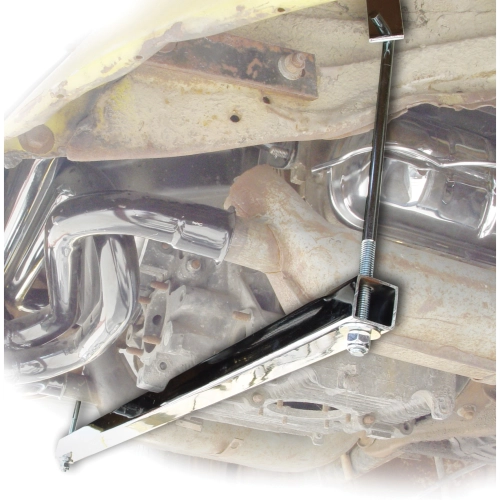

Chrome Rear Engine Brace, for All Type 1 Beetle Application

OVERVIEW

The EMPI Chrome Rear Engine Brace is an essential performance upgrade designed to solve one of the most common structural weaknesses in the air-cooled Volkswagen drivetrain. In a stock configuration, the VW engine and transaxle are suspended by rubber mounts, which allows for significant movement under load. When you launch hard or shift aggressively, this assembly twists, leading to the dreaded wheel hop that can snap axles, shatter transaxle cases, and cause inconsistent shifting. By triangulating the rear of the chassis, this brace ties the frame horns together and provides a secondary support path for the engine''s weight, effectively locking the drivetrain in place. This results in a much more planted feel during acceleration and ensures that every bit of horsepower is transferred to the pavement rather than being lost to parasitic drivetrain movement.

Beyond the functional performance gains, this engine brace serves as a high-impact visual upgrade for any show-quality engine bay. Finished in a deep, mirror-like chrome plating, it provides a brilliant contrast against colored sheet metal or polished aluminum components. The kit is engineered for a universal fit across the Type 1 platform, featuring adjustable threaded ends that allow you to fine-tune the tension and fitment to your specific vehicle''s tolerances. Whether you are building a high-performance street sleeper, a weekend drag racer, or a meticulously detailed show Beetle, this brace offers the perfect blend of structural rigidity and aesthetic appeal. It is a "must-have" for any engine producing more than stock horsepower, as it protects your expensive transaxle and engine case from the stress of torque-induced flex.

FITMENT

This engine brace is designed for universal application across the Volkswagen Type 1 chassis. Please note that some aftermarket exhaust systems or custom bodywork may require slight adjustments for clearance.

• Volkswagen Type 1 Beetle: 1950 through 1977 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 181 Thing: 1973 through 1975
• Custom Applications: Fits most Dune Buggies, Sand Rails, and Kit Cars utilizing a Type 1 upright engine and transaxle configuration.

TECHNICAL SPECIFICATIONS

• Product Part Number: 00-9526-0
• Material: Heavy-duty tubular steel construction for maximum rigidity.
• Finish: High-luster triple-chrome plating for corrosion resistance and show-quality shine.
• Adjustment Type: Dual threaded rod ends with locking jam nuts for precision tensioning.
• Mounting Hardware: Includes high-grade bolts, washers, and necessary clevis attachments.
• Function: Prevents frame horn flex and stabilizes the engine/transaxle assembly.
• Weight: Approximately 6 lbs, providing strength without unnecessary bulk.
• Installation Style: Bolt-on application (some drilling may be required depending on specific model year and chassis condition).

PRO TIPS FROM THE SHOP

1. Neutral Tensioning is Key: When installing the EMPI Rear Engine Brace, it is vital to adjust the tension while the vehicle is sitting on its own weight on level ground. You do not want to "pre-load" the brace so tightly that it pulls the frame horns inward or pushes them out. Instead, adjust the threaded ends until the bar is snug and the pins slide in easily, then give it a half-turn of tension before tightening the jam nuts. This ensures the brace is ready to react to torque without putting constant stress on your chassis welds when the car is at rest.

2. Combine with Urethane Mounts: For the ultimate "planted" feel, we highly recommend pairing this chrome engine brace with a set of high-durometer urethane engine and transaxle mounts. While the brace handles the macro-movement of the frame horns, the urethane mounts minimize the micro-vibrations and initial torque twist at the source. This combination drastically improves shift precision, especially in high-performance Type 1s where the stock rubber mounts tend to turn into "mush" under the heat and stress of a larger displacement engine.

3. Chrome Maintenance and Clearance: Because this brace sits at the rear of the engine, it is susceptible to road grime and heat cycles. To keep that show-quality shine, wipe the bar down with a high-quality chrome polish every few months to prevent pitting. Additionally, during the initial mockup, double-check your clearance against your exhaust header and heater boxes. If you are running a large competition merge collector, you may need to rotate the brace slightly or use spacers to ensure that thermal expansion of the exhaust doesn''t cause it to rattle against the new brace.
