Carburetor Rebuild Kit, 40 & 44 Weber IDF & HPMX

Restore Precision Performance with the EMPI Weber IDF and HPMX Rebuild Kit

When your air-cooled engine starts to hesitate off the line, stumbles during acceleration, or suffers from a rough idle that simply won''t smooth out, the culprit is often a tired, leaking carburetor. Over time, the internal gaskets of your Weber IDF or EMPI HPMX units can dry out and shrink, leading to vacuum leaks that wreak havoc on your air-fuel ratios. This EMPI carburetor rebuild kit is the professional-grade solution for enthusiasts looking to restore the crisp throttle response and reliable idling that these dual-throat carburetors are famous for. Whether you are running a street-driven 1776cc Beetle or a high-revving 2332cc monster, maintaining the integrity of your fuel delivery system is paramount to engine longevity and peak horsepower output.

This comprehensive kit is specifically engineered to provide a perfect seal for both 40mm and 44mm IDF-style carburetors. It includes the essential high-quality fiber gaskets, Viton O-rings, and precision-machined needle and seat assemblies required to overhaul a single carburetor. By replacing worn-out components with these fresh, fuel-resistant materials, you eliminate the risk of external fuel weeping and internal "bleeding" that leads to flooding. Don''t let a simple torn accelerator pump diaphragm or a sticking needle valve ruin your weekend cruise; this kit provides the peace of mind that comes with a completely refreshed fuel system, ensuring your VW is always ready for the open road.

Detailed Fitment and Compatibility

This rebuild kit is designed for vehicles equipped with aftermarket Weber IDF or EMPI HPMX dual-carburetor setups. While these are commonly found on the following models, please verify your carburetor type before ordering:

• Volkswagen Type 1: Beetle and Karmann Ghia (All years with IDF/HPMX conversions).
• Volkswagen Type 2: Bus, Transporter, and Kombi (1950-1979).
• Volkswagen Type 3: Squareback, Fastback, and Notchback.
• Volkswagen Type 181: The Thing.
• Custom Applications: Dune Buggies, Sand Rails, and Trikes using 40 or 44 IDF/HPMX series carburetors.
• Carburetor Models: Fits Weber 40 IDF, Weber 44 IDF, EMPI 40 HPMX, and EMPI 44 HPMX.

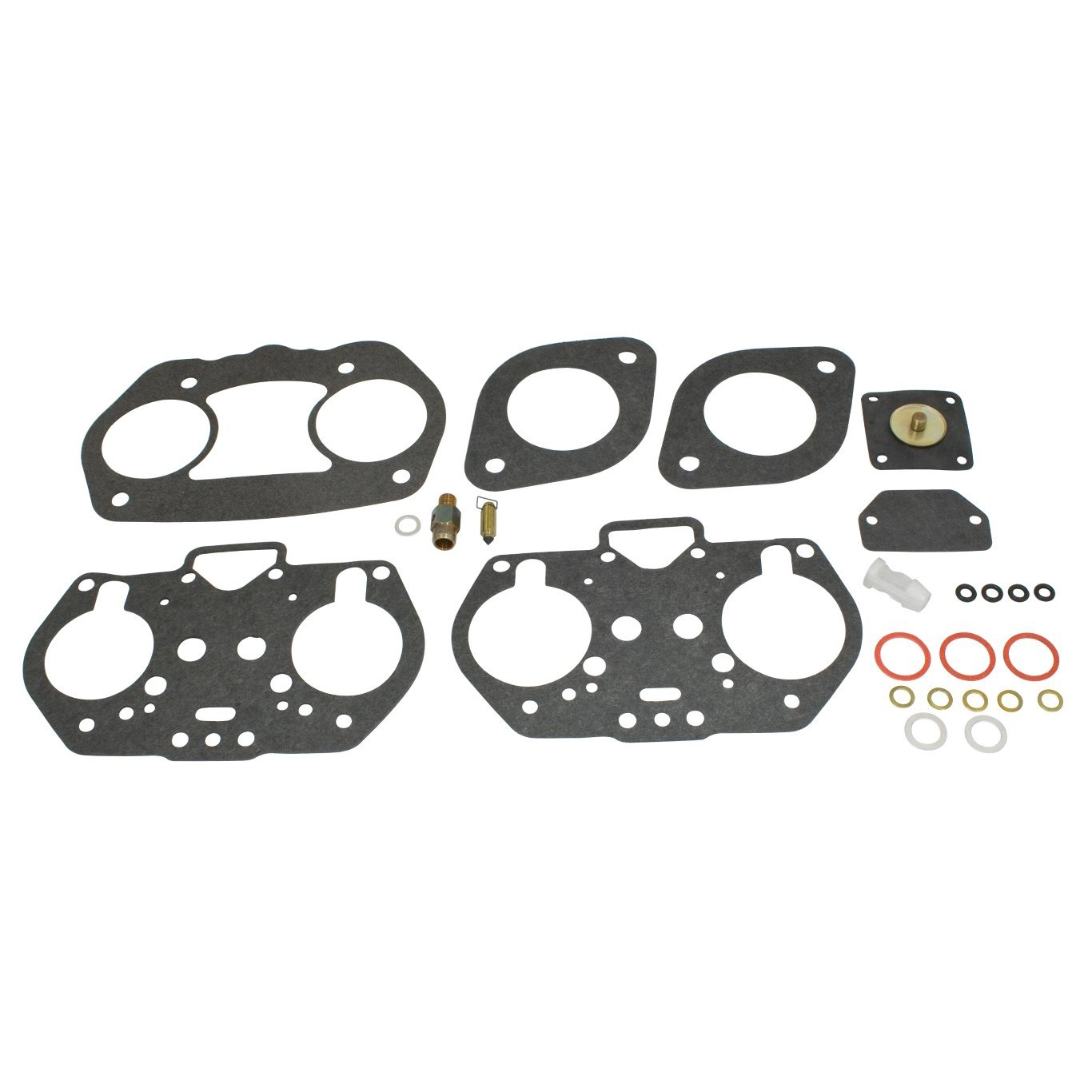

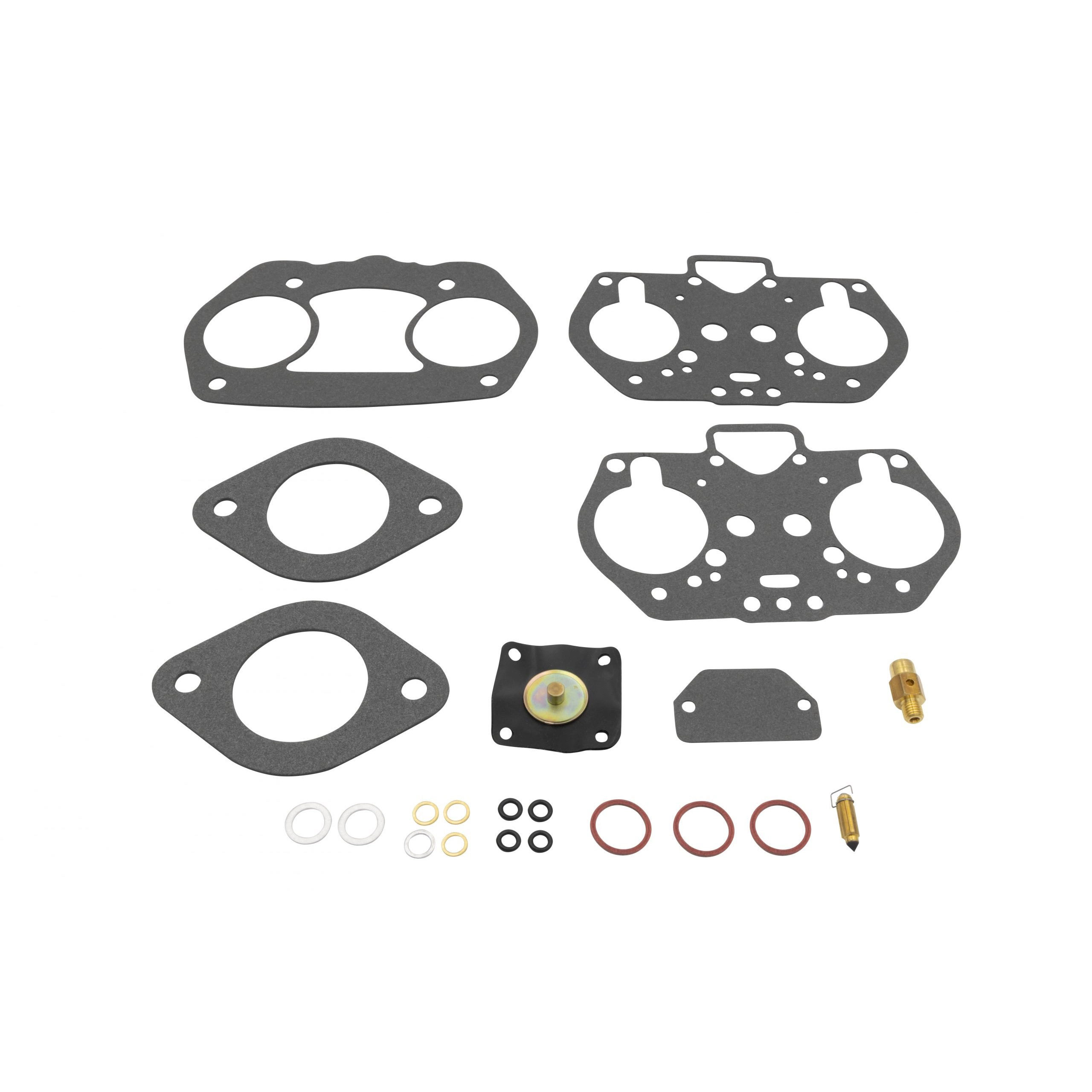

Technical Specifications and Kit Contents

Every component in this kit is manufactured to meet or exceed original equipment standards to handle modern ethanol-blended fuels without premature degradation.

• Kit Coverage: Completes one (1) Carburetor (Order two kits for a dual-carburetor engine).
• Gasket Material: High-density, fuel-resistant fiber for the top cover and base.
• Accelerator Pump: Includes one (1) high-quality diaphragm with spring.
• Needle & Seat: Precision-ground needle valve assembly for consistent float bowl levels.
• O-Rings: Various Viton O-rings for mixture screws and jet holders.
• Hardware: Includes necessary copper and fiber crush washers for fuel inlet bolts.
• Compatibility: Optimized for 40mm and 44mm bore sizes.

Pro Tips for a Successful Weber/HPMX Overhaul

Pro Tip 1: The Importance of the "Deep Clean"

Before installing your new EMPI gaskets, the carburetor body must be surgically clean. Disassemble the unit entirely and soak the metal components in a dedicated carburetor dip for at least 4 hours. However, never soak the new rubber O-rings or the accelerator pump diaphragm in these harsh chemicals. After soaking, use compressed air to blow through every internal passage, including the idle circuits and progression holes. If you can''t see light through a jet or feel air passing through a circuit, the new rebuild kit won''t fix your performance issues. A clean body is the foundation of a successful rebuild.

Pro Tip 2: Precise Float Leveling is Non-Negotiable

The single most common mistake during an IDF rebuild is ignoring the float height. Even with a brand-new needle and seat, if your float level is too high, the engine will flood; if it''s too low, the engine will lean out during high-speed cornering or hard acceleration. For most Weber IDF applications, the "closed" position (with the gasket in place) should be set to approximately 10mm to 10.5mm, and the "drop" or open position should be set to 32.5mm. Use a precision caliper to measure this. Ensuring both carburetors have identical float levels is the secret to getting a dual-carb setup to sync perfectly.

Pro Tip 3: The Accelerator Pump Identification Warning

It is vital to inspect your existing accelerator pump diaphragm before installation. While this kit fits the vast majority of modern 40/44 IDF and HPMX carburetors, some very early Italian-made Weber IDF units utilized a different pump diaphragm design. Before you tear the old one out, compare the "stem" length and the bolt pattern of your existing pump to the one provided in the kit. Additionally, when installing the new diaphragm, always pre-load the pump arm slightly before tightening the four cover screws; this prevents the rubber from tearing or "bunching" when the throttle is first snapped open.
