Dual Port Intake Gaskets, for All Aircooled VW, Pair

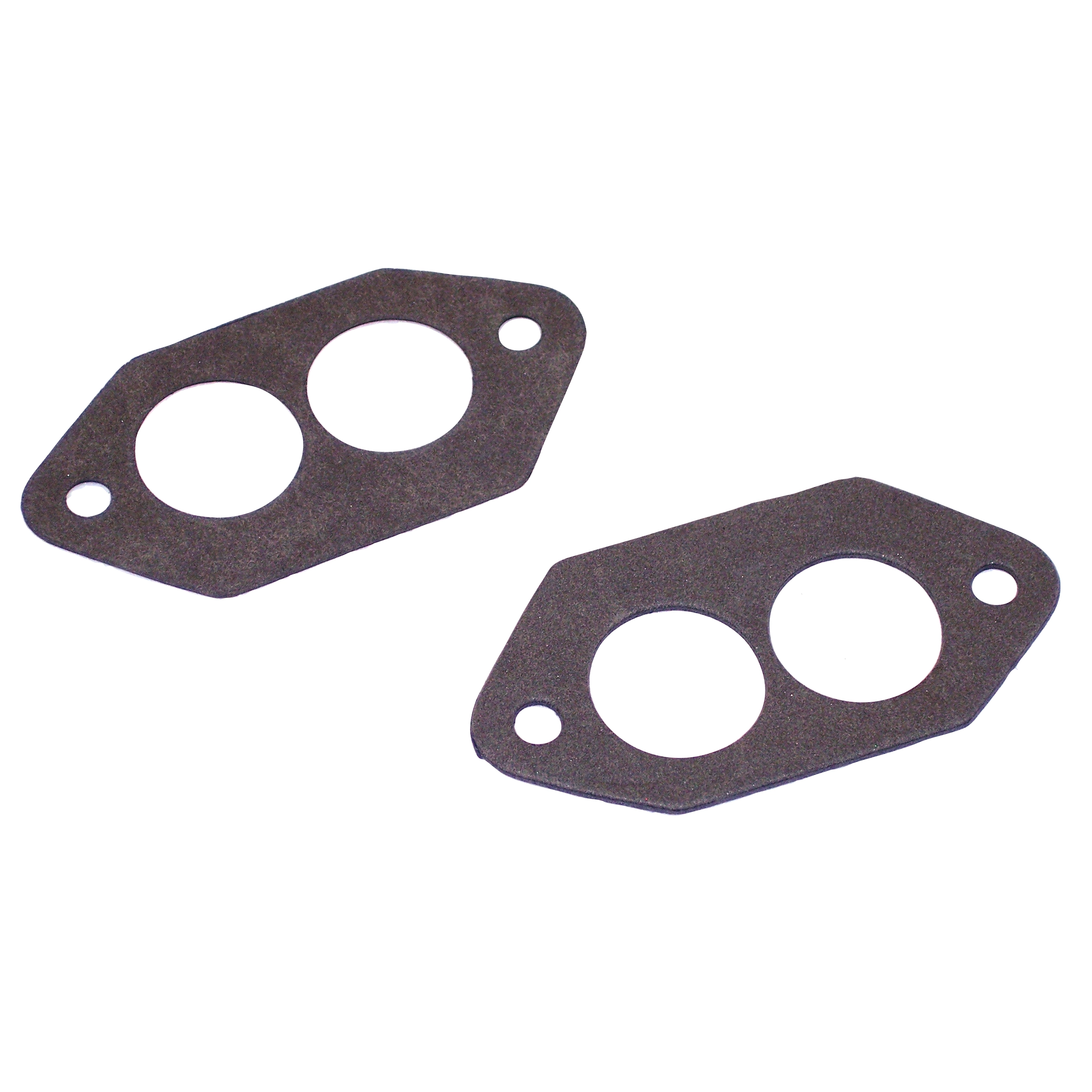

EMPI Dual Port Intake Gaskets for Aircooled VW - Pair (Part #1553)

Vehicle Fitment & Compatibility

These EMPI Dual Port Intake Manifold Gaskets are precision-engineered for Type 1 based dual port engines. They are designed to fit the following aircooled Volkswagen models:

• 1971-1974 VW Beetle and Super Beetle
• 1971-1974 VW Karmann Ghia
• 1971 VW Type 2 Bus (1600cc Dual Port)
• 1973-1974 VW Thing

Product Overview

Ensure a leak-free seal with these precision die-cut gaskets. Manufactured from high-quality gasket board, these thick paper gaskets provide a reliable barrier between the intake manifolds and the cylinder heads. Whether you are performing a routine tune-up or building a performance engine, these gaskets are easily adapted to stock or modified applications to prevent vacuum leaks and maintain optimal engine performance.

Pro Tech Tips for Installation

1. Surface Preparation is Key: Before installing your new gaskets, ensure that both the cylinder head intake port surface and the intake manifold flange are perfectly clean. Use a gasket scraper or a scotch-brite pad with a bit of solvent to remove any old gasket residue or carbon buildup. A clean surface is essential for a vacuum-tight seal.

2. Check for Flange Flatness: Over time, intake manifold flanges can become slightly warped from heat and over-tightening. Lay the manifold flange on a known flat surface (like a piece of glass) to check for gaps. If it is not flat, you can lightly sand the flange surface until it is level to ensure the gasket can do its job effectively.

3. Avoid Excessive Sealants: While it may be tempting to use RTV silicone, these paper gaskets are designed to be installed dry or with a very light coating of high-tack gasket spray. Using too much silicone can cause the gasket to "squish" out of place or, worse, allow bits of dried silicone to be sucked into your intake valves.
