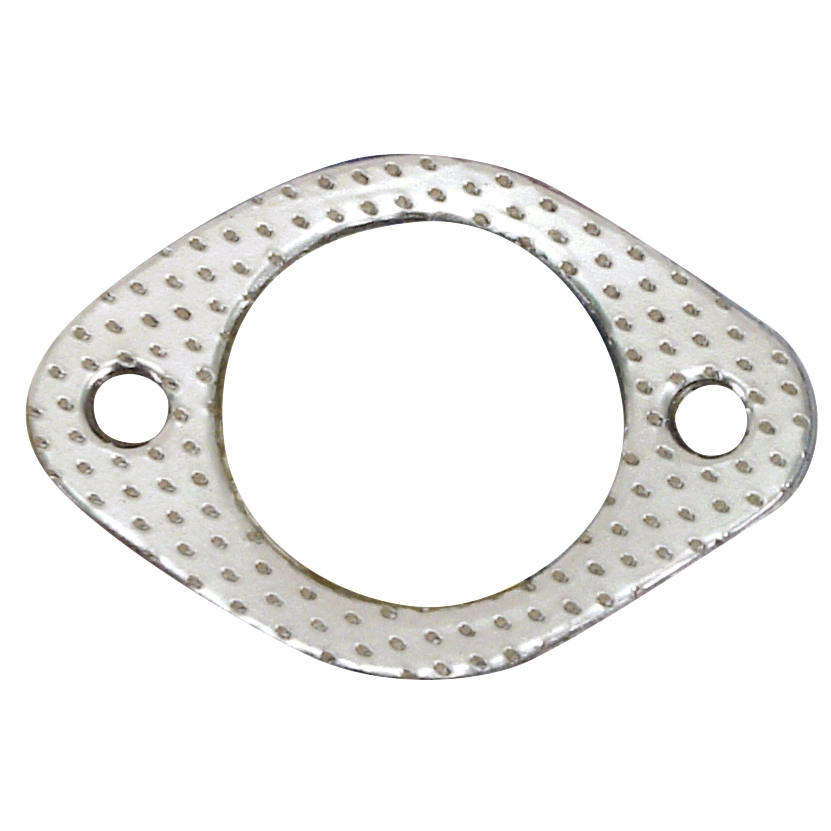

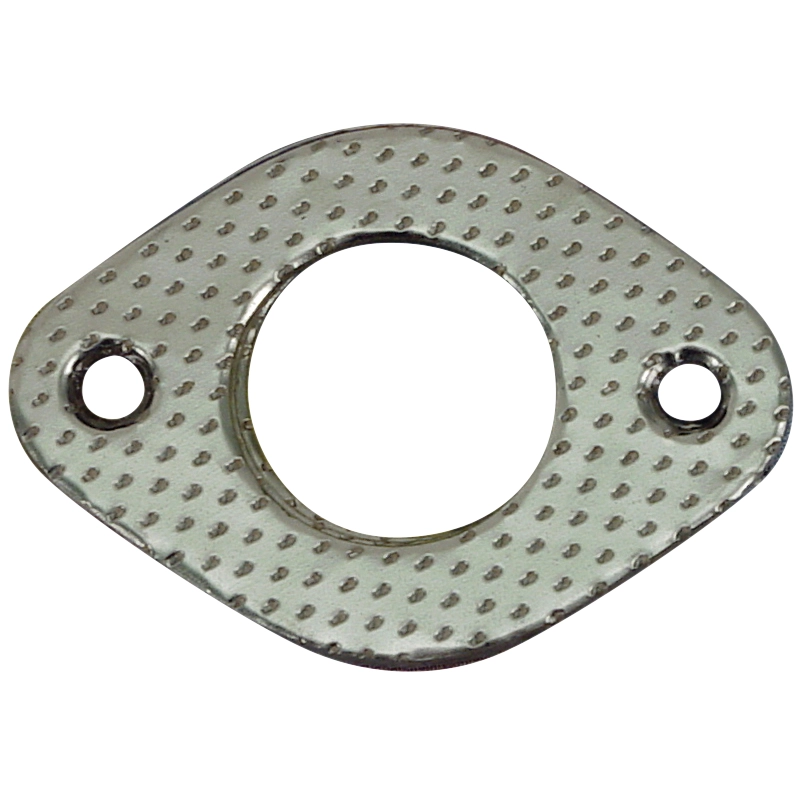

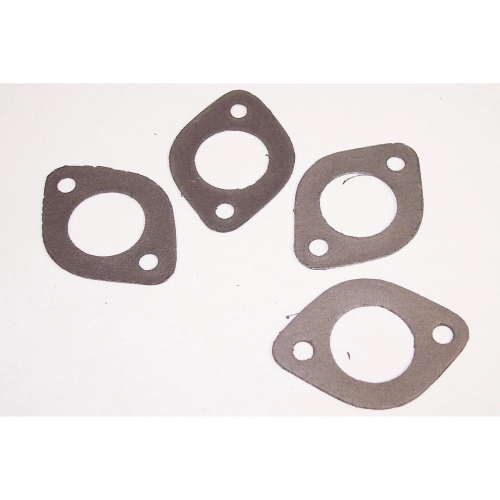

Exhaust Gaskets, 1-1/2 Steelbestos, 4 Pack

OVERVIEW

When it comes to maintaining the peak performance of your air-cooled Volkswagen, the exhaust system is often where horsepower is either made or lost. These EMPI 1-1/2 inch Steelbestos exhaust gaskets are engineered specifically for enthusiasts who demand a reliable, leak-free seal that can withstand the extreme thermal cycles of a high-performance flat-four engine. Unlike standard paper or thin composite gaskets that tend to char, shrink, and eventually blow out under pressure, these Steelbestos units feature a rugged steel core reinforcement. This internal metal skeleton ensures the gasket maintains its structural integrity even when subjected to the intense heat generated by merged headers and high-compression builds. If you have ever experienced the annoying "tick-tick-tick" of an exhaust leak or noticed a drop in backpressure and tuning consistency, you know that a quality seal at the cylinder head is non-negotiable. These gaskets provide the necessary compression and resilience to bridge minor imperfections in the header flange, ensuring that every bit of exhaust pulse is directed exactly where it needs to go.

Upgrading to a 4-pack of these premium EMPI gaskets is a smart move for any DIY mechanic or professional engine builder working on a VW Type 1, 2, or 3 based powerplant. The 1-1/2 inch sizing is the industry standard for performance street and off-road exhaust systems, making these a perfect match for enlarged heater boxes or competition headers. Because air-cooled engines rely so heavily on consistent operating temperatures and proper exhaust scavenging, an airtight seal is critical for preventing lean conditions and protecting your valves from premature wear. These gaskets are designed for a "crush" fit, allowing the material to conform to the mating surfaces of the exhaust port and the header flange for a permanent bond that won''t vibrate loose over time. Whether you are refreshing a daily driver Beetle or prepping a sand rail for a weekend at the dunes, these Steelbestos gaskets offer the durability of industrial-grade materials with the precision fitment that EMPI is known for across the globe. Don''t settle for inferior seals that will have you pulling your exhaust system apart again in six months; do the job once and do it right with the best materials available.

FITMENT

• VW Beetle: 1954-1977 (Sedan & Convertible)
• VW Super Beetle: 1971-1979
• VW Karmann Ghia: 1956-1974
• VW Bus / Transporter: 1950-1971 (Type 1 Engine Applications)
• VW Type 3: 1962-1973 (Squareback, Fastback, Notchback)
• VW Thing: 1973-1974
• Custom Applications: Fits all Dune Buggies, Sand Rails, and Trikes utilizing Type 1 VW based engines with 1-1/2 inch exhaust tubing.

SPECS

• Product Type: High-Performance Exhaust Flange Gaskets
• Inner Diameter: 1.50 Inches (1-1/2")
• Material Composition: Steelbestos (Steel-reinforced fiber composite)
• Quantity: 4 Pieces Per Pack
• Flange Style: Standard 2-Bolt VW Exhaust Pattern
• Temperature Rating: High-Heat Resistance for Air-Cooled Environments
• Manufacturer: EMPI
• Part Number: 2512-30
• Thickness: Optimized for compression and sealing of warped flanges

PRO TIPS

1. Surface Preparation is Paramount

Before installing your new Steelbestos gaskets, it is absolutely vital to ensure that both the cylinder head exhaust ports and the header flanges are perfectly clean and flat. Use a gasket scraper or a fine wire brush to remove any carbon buildup or remnants of the old gasket material. If you notice that your header flange is slightly warped from previous heat cycles, you can use a large, flat file to "true" the surface. A flat mating surface ensures that the steel core of the gasket can compress evenly, which is the secret to preventing blowouts during high-RPM operation. Never "double up" gaskets to fix a gap; instead, fix the flange or the head surface for a professional, long-lasting seal.

2. The Heat Cycle Re-Torque

Exhaust components expand and contract significantly as they go from ambient temperature to several hundred degrees. After you install these gaskets and tighten your exhaust nuts to the factory specifications, we highly recommend running the engine until it reaches full operating temperature and then letting it cool down completely. Once the engine is cold, go back and check the torque on your exhaust nuts. You will often find that the gasket has "settled" and the nuts may require a slight additional turn. Performing this heat-cycle re-torque is the single best way to ensure your exhaust system stays quiet and leak-free for thousands of miles, especially on off-road vehicles that endure heavy vibration.

3. Use High-Quality Hardware

When installing these premium gaskets, don''t ruin the job by using old, rusty, or rounded-off nuts and studs. We strongly suggest using copper-plated exhaust nuts or stainless steel hardware. Copper-plated nuts are particularly effective because they are "self-lubricating" to a degree, which prevents them from seizing onto the studs due to extreme heat and moisture. This makes future maintenance much easier and prevents the nightmare of snapping a stud off inside your cylinder head. Additionally, ensure you are using the correct 13mm or 11mm small-head nuts if your header clearance is tight, as this allows you to get a socket or wrench squarely on the fastener for even pressure across the gasket face.
