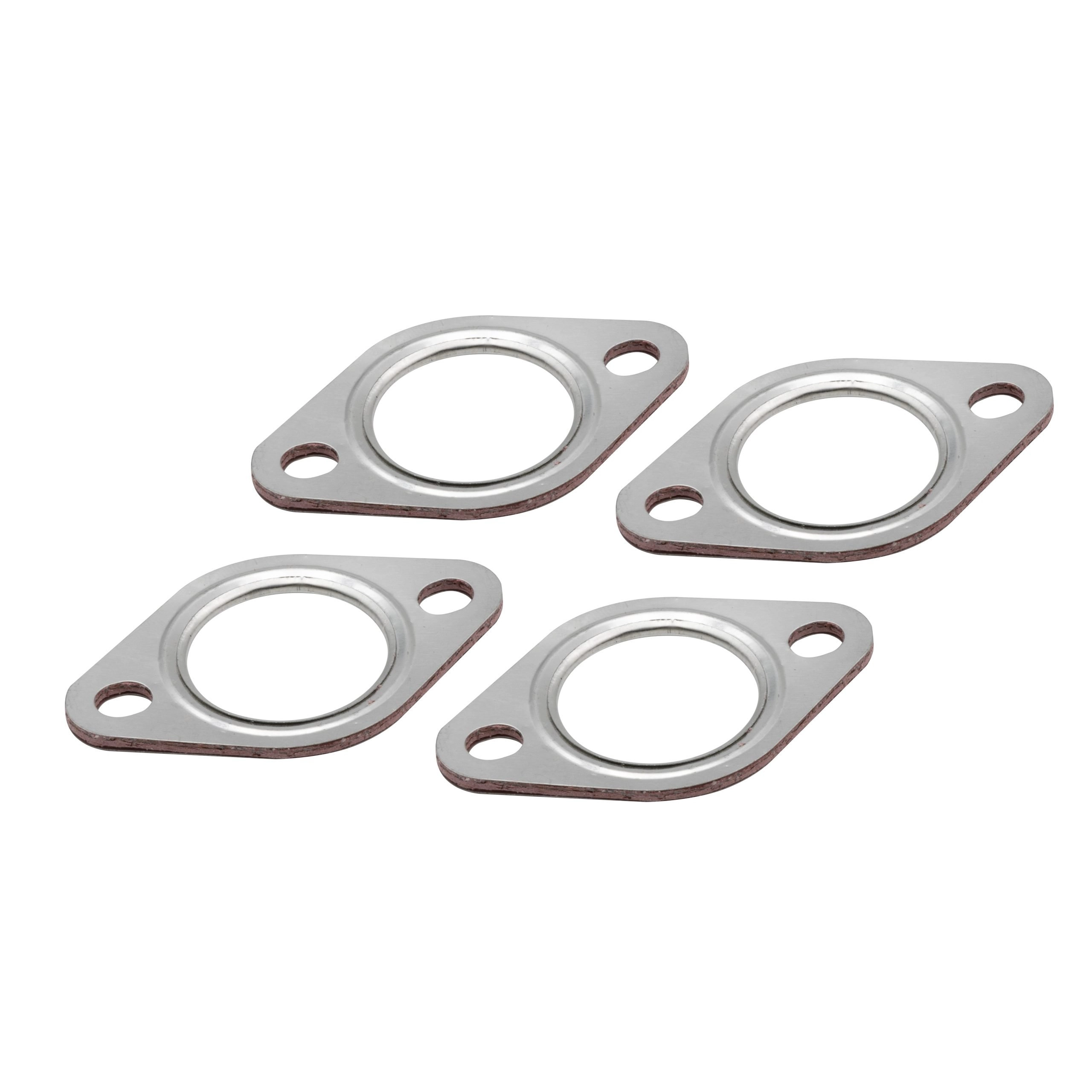

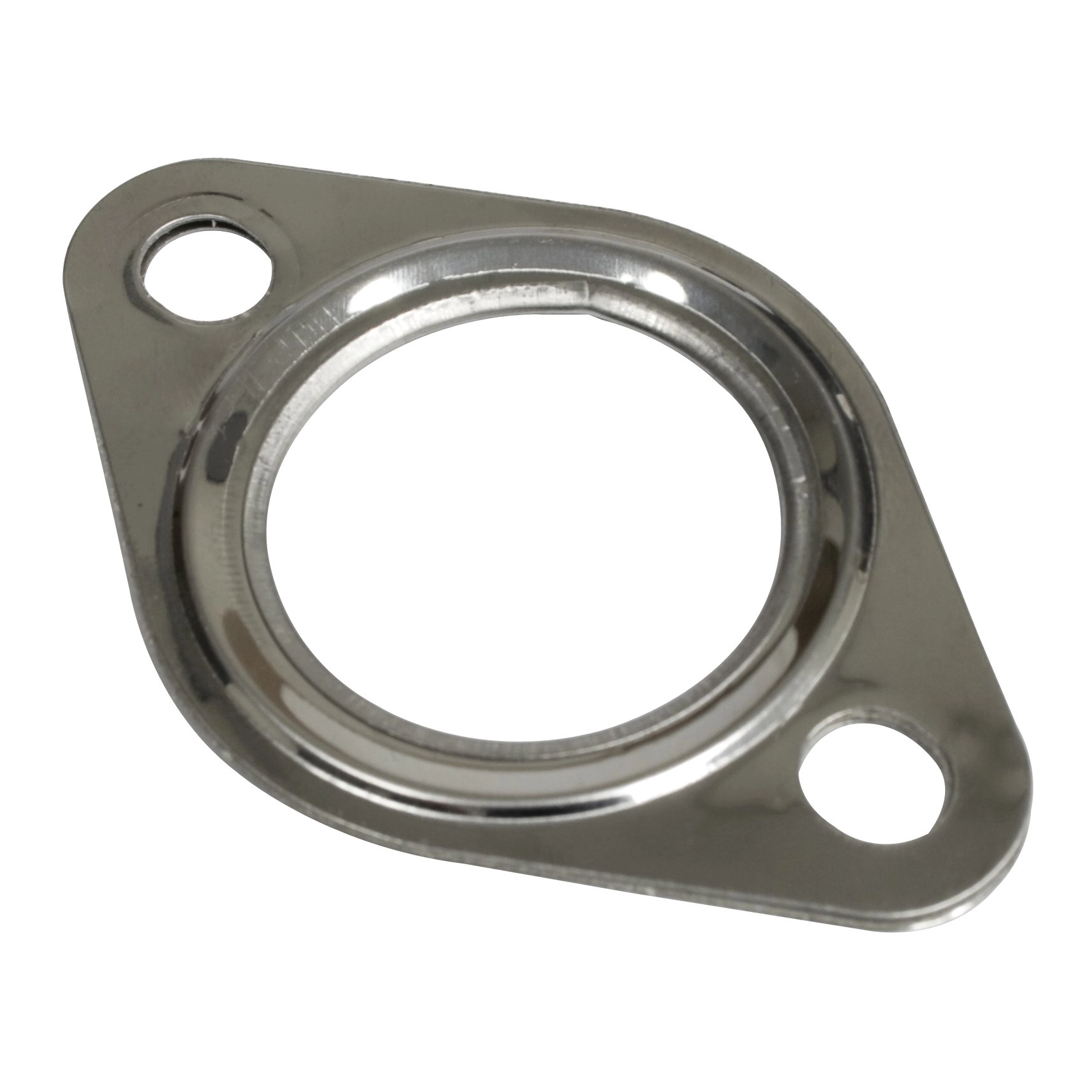

Exhaust Gaskets, Oem Steel Replacement for Beetle, 4 Pack

OVERVIEW

When it comes to maintaining the peak performance and iconic sound of your air-cooled Volkswagen, the importance of a high-quality seal cannot be overstated. These EMPI OEM-style steel exhaust gaskets are engineered to provide a robust, leak-free connection between your engine''s cylinder heads and the exhaust manifold. Exhaust leaks aren''t just an annoyance; they can lead to dangerous carbon monoxide entry into the cabin, erratic engine idling, and a significant loss in backpressure that robs your Beetle or Bus of its torque. By utilizing a multi-layered steel construction, these gaskets offer superior resistance to the extreme heat cycles inherent in an air-cooled environment, ensuring that once you bolt your exhaust down, it stays sealed through every mile of your journey.

At Appletree Automotive, we know that restoration and maintenance are all about the details, and this 4-pack of steel gaskets provides the professional-grade solution that every VW enthusiast needs in their garage. Unlike inferior fiber gaskets that tend to char, brittle, and eventually blow out under pressure, these steel replacements are designed to crush slightly upon installation, creating a precision-mated surface that compensates for minor imperfections in the exhaust flange. Whether you are performing a routine muffler replacement or a complete engine rebuild, having a fresh set of 111-251-261B gaskets on hand is the best way to prevent the dreaded "exhaust tick" and keep your vintage Volkswagen running as smooth as the day it left the factory.

FITMENT

• Volkswagen Type 1 Beetle: 1961 - 1974 (1200cc, 1300cc, 1500cc, and 1600cc engines)
• Volkswagen Type 2 Bus / Transporter: 1960 - 1971 (Up to 1600cc Dual Port)
• Volkswagen Karmann Ghia: 1961 - 1974
• Volkswagen Thing (Type 181): 1973 - 1974
• Custom Applications: Fits most aftermarket headers and mufflers utilizing the standard small 2-bolt flange.

SPECS

• Part Number: 111-251-261B
• Manufacturer: EMPI
• Material: High-grade layered steel for maximum thermal durability
• Quantity: Pack of 4 gaskets
• Configuration: Standard 2-bolt exhaust flange
• Inner Diameter: Approximately 33mm (Standard VW small port)
• Design: OEM replacement style with embossed sealing rings
• Compatibility: Compatible with both Single Port and Dual Port cylinder heads

PRO TIPS

1. Preparation is Key to a Permanent Seal

Before installing your new steel gaskets, it is absolutely vital to ensure that both the cylinder head exhaust port and the exhaust manifold flange are perfectly clean and flat. Use a gasket scraper or a wire brush to remove any old carbon deposits or leftover fiber material from previous gaskets. If the exhaust flange on your header is slightly warped, you can use a flat file to carefully level the surface. A clean, flat mating surface allows the steel gasket to crush evenly, which is the secret to preventing future leaks and ensuring you don''t have to do the job twice.

2. Use High-Temp Anti-Seize on Your Hardware

Whenever you are working on a VW exhaust system, you should always apply a small amount of high-temperature copper anti-seize to the exhaust studs or bolts. The extreme heat of the exhaust system, combined with road moisture, often leads to rusted and snapped studs during future maintenance. By protecting the threads now, you ensure that the nuts can be torqued accurately to achieve the proper gasket crush, and you will thank yourself years down the road when you can remove the exhaust without the need for a torch or a drill-out kit.

3. The Heat Cycle Re-Torque Routine

Steel gaskets are incredibly durable, but they do require a "set" period to perform at their best. After installing your exhaust and tightening the nuts to the factory specification, take your Volkswagen for a 15 to 20-minute drive to bring the engine up to full operating temperature. Once the engine has completely cooled back down, go back in with your wrench and check the tightness of the exhaust nuts. Metal expansion and contraction during that first heat cycle can often cause the hardware to settle; a quick re-torque ensures the seal remains airtight for the long haul.
