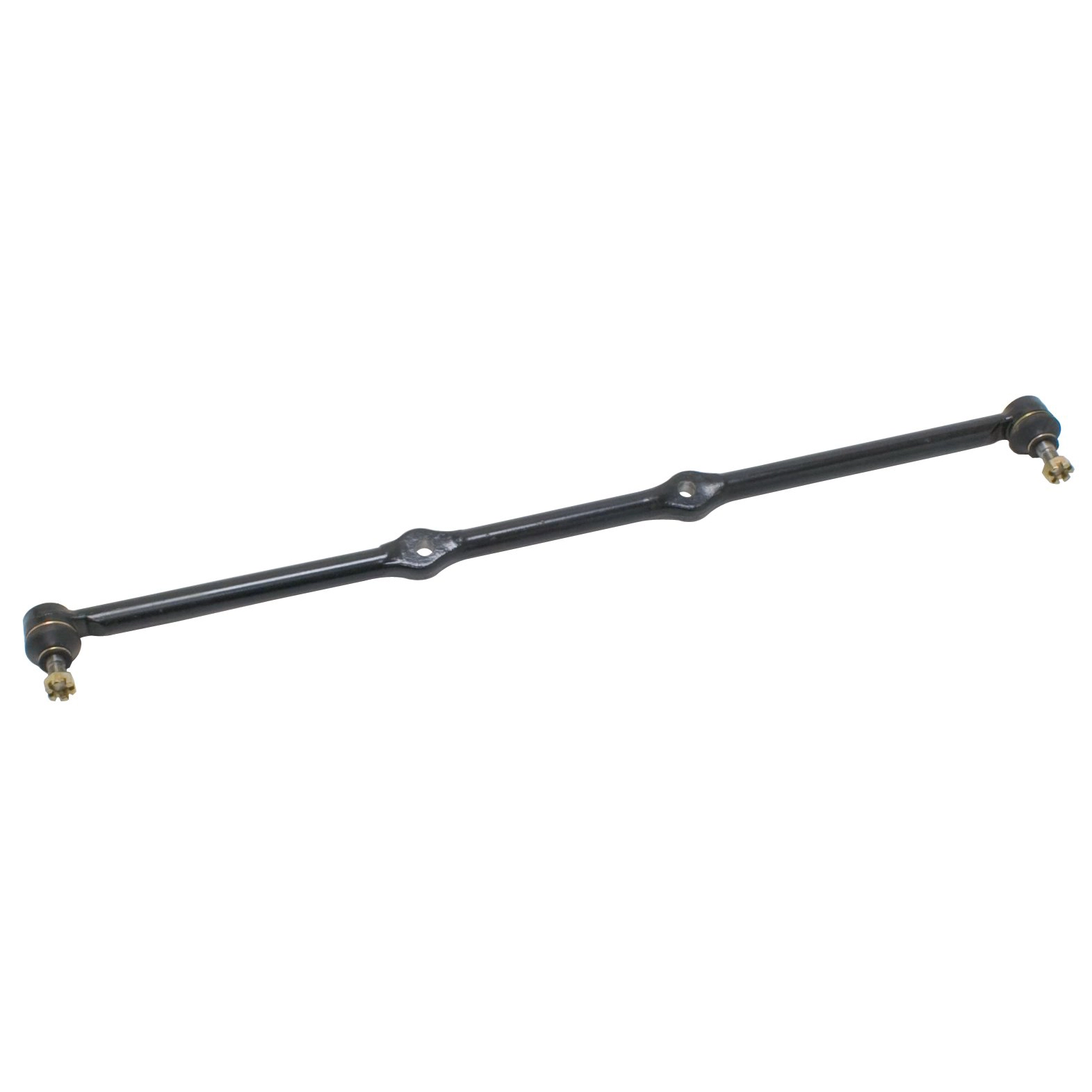

Tie Rod, Center with Ends for Super Beetle 71-74

Restore Precision to Your Super Beetle Steering

When it comes to the unique MacPherson strut front end of the 1971-1974 Super Beetle, the center tie rodoften referred to as the drag linkis the backbone of your steering geometry. Over decades of service, the ball joints at either end of this center rod develop play, leading to the dreaded ""death wobble"" and a vague, wandering sensation at highway speeds. This IAP Center Tie Rod assembly is engineered to meet or exceed original equipment specifications, providing a direct-fit solution that eliminates the slop in your steering linkage. By replacing the entire unit rather than attempting to swap individual ends, you ensure that the rod itself is straight and that the integrated joints are perfectly seated, restoring the tight, responsive handling that Volkswagen intended for the 1302 and 1303 models.

Safety and durability are paramount when maintaining a classic air-cooled VW, and this center tie rod assembly delivers on both fronts. Constructed from high-strength forged steel with a corrosion-resistant finish, it is built to withstand the rigors of daily driving and the stresses of the Super Beetle''s steering box and idler arm configuration. The assembly comes complete with high-quality rubber dust boots that seal out moisture and road grime, protecting the internal grease and ensuring a long service life. Whether you are performing a full front-end restoration or simply trying to pass your local safety inspection, this center tie rod is an essential component for maintaining proper toe-in and preventing premature tire wear on your prized Volkswagen.

Comprehensive Vehicle Fitment

• 1971-1974 Volkswagen Super Beetle (1302 & 1303): All models equipped with a steering box.
• Note: This part is specific to the Super Beetle and will not fit Standard Beetles, which utilize a different two-rod steering configuration.
• Note: Not for 1975 and later Super Beetles equipped with rack and pinion steering.

Technical Specifications and Details

• OEM Part Number: 133-415-303
• Product Type: Center Tie Rod (Drag Link) Assembly
• Components Included: Tie rod, two pre-installed tie rod ends, castle nuts, and cotter pins.
• Material: Heavy-duty forged steel rod for maximum rigidity.
• Finish: Black oxide or paint coating for superior rust prevention.
• Boot Material: Durable, oil-resistant neoprene rubber.
• Weight: Approximately 4.95 lbs.
• Installation Position: Connects the steering box pitman arm to the passenger-side idler arm.

Pro Tips from the Appletree Garage

Pro Tip 1: Diagnose the "Death Wobble" Thoroughly. While a worn center tie rod is a frequent culprit for front-end vibration, it often works in tandem with worn idler arm bushings and steering damper failure. Before you tear down the front end, have an assistant wiggle the steering wheel back and forth while you observe the center tie rod ends from underneath. If you see vertical movement or "popping" in the joints, it is time for a replacement. Always check your idler arm for play at the same time, as a loose idler arm will ruin a brand-new tie rod in short order.

Pro Tip 2: Alignment is Mandatory. Never assume that you can "eye-ball" the length of the new rod to match the old one and drive away. Even a fraction of a millimeter difference in the seat of the ball joint can throw your toe-in settings out of spec. After installing the 133-415-303 center tie rod, you must take your Super Beetle to a professional alignment shop that understands the specific requirements of the MacPherson strut VW front end. Proper alignment ensures the car tracks straight and prevents you from scrubbing the tread off your expensive new tires.

Pro Tip 3: Never Back Off a Castle Nut. When installing the new tie rod ends into the pitman arm and idler arm, always torque the castle nuts to the factory recommended specification. If the hole for the cotter pin does not line up with the slots in the nut, never loosen the nut to make it fit. Instead, always tighten the nut further until the next slot aligns with the hole. Backing off the nut to align the pin can lead to a loose fitment that will eventually wallow out the tapered hole in your steering arms, requiring much more expensive repairs down the road.
