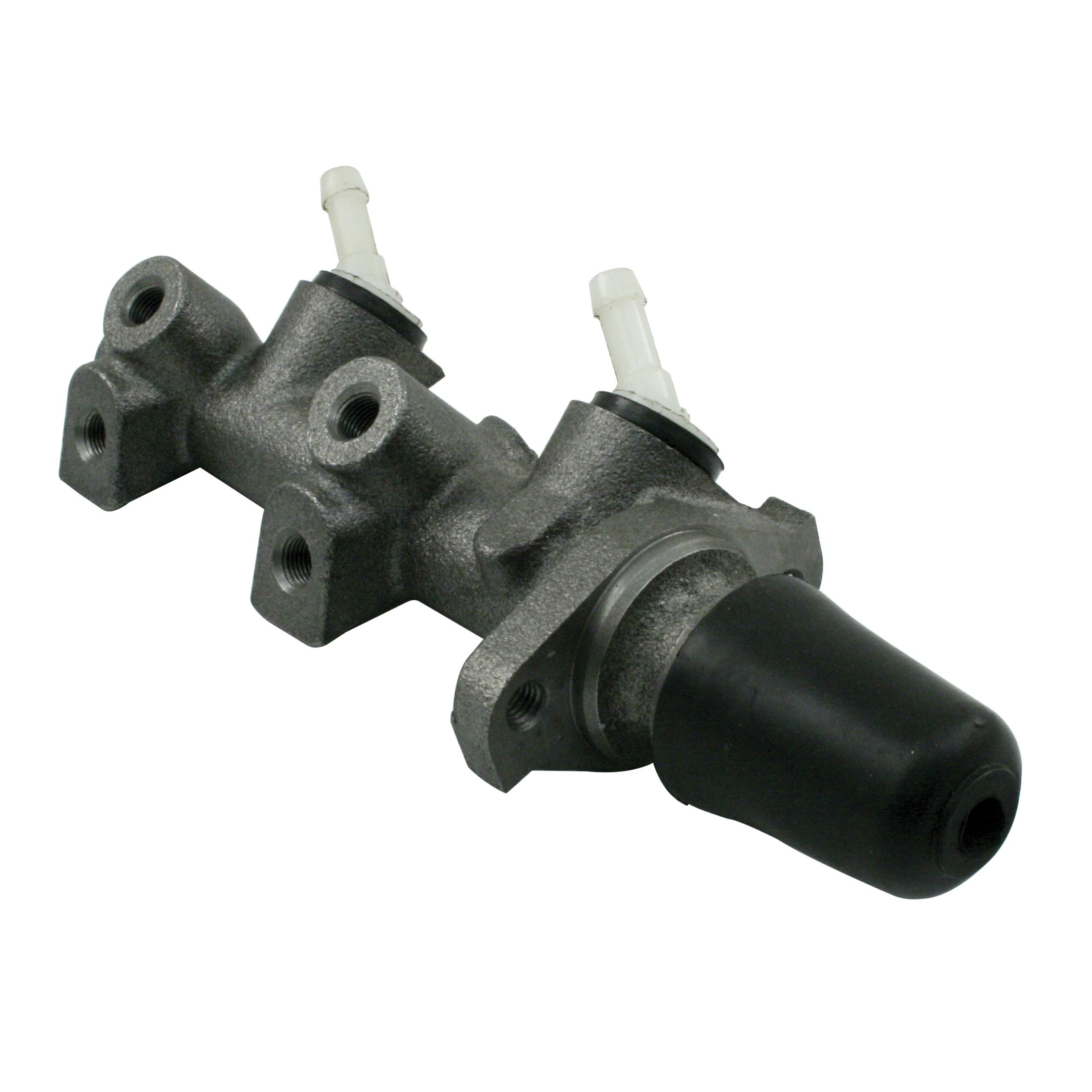

Master Cylinder, Fits Super Beetle 71-79

Master Your Stopping Power with the Ultimate Super Beetle Brake Upgrade

When it comes to the safety and performance of your classic air-cooled Volkswagen, there is no component more critical than the master cylinder. For the 1971 to 1979 Super Beetle, this dual-circuit master cylinder serves as the heart of your hydraulic system, ensuring that every time you press the brake pedal, you get a firm, consistent response. Over decades of service, original master cylinders suffer from internal pitting, seal degradation, and moisture contamination, leading to a spongy pedal or, worse, a complete loss of braking pressure. This high-quality EMPI replacement is engineered to meet or exceed original equipment specifications, providing you with the peace of mind that your vintage VW will stop as reliably as it did the day it left the factory. Don''t gamble with aged components when a fresh, precision-machined unit can restore your vehicle''s braking integrity instantly.

This specific unit is designed exclusively for the Super Beetle chassis (1302 and 1303 models), which utilizes a unique mounting configuration and port orientation compared to the standard Beetle. It features a precision-honed 19mm bore that maintains the correct hydraulic ratio for your factory brake setup, whether you are running a front disc conversion or the original four-wheel drum configuration. Many enthusiasts make the mistake of trying to "hone out" an old cylinder, but internal corrosion often runs deeper than the eye can see, leading to premature seal failure. By installing a brand-new EMPI master cylinder, you eliminate the guesswork and ensure that your hydraulic fluid remains pressurized and free from internal leaks. Invest in the longevity of your brake system and ensure that your Super Beetle remains a joy to drive with a firm, responsive pedal that inspires confidence on modern roads.

Detailed Fitment and Vehicle Compatibility

This master cylinder is specifically engineered for the Super Beetle platform. Please note that it will NOT fit standard (Torsion Bar) Beetles. Confirm your model year and suspension type before ordering.

• 1971-1972 VW Super Beetle (1302): All Sedan and Convertible models.
• 1973-1979 VW Super Beetle (1303): All Sedan and Convertible models.
• Note: Specifically designed for LHD (Left Hand Drive) configurations.

Technical Specifications and Build Materials

Appletree Auto ensures that every part meets the rigorous demands of the air-cooled community. Below are the technical details for the 113-611-015HBR:

• Bore Diameter: 19.05mm (Standard VW Hydraulic Ratio).
• Circuit Type: Dual Circuit (Safety redundant system for front and rear).
• Port Thread Size: M10 x 1.0 Metric (Standard for VW brake lines).
• Housing Material: High-strength cast iron for maximum heat dissipation and durability.
• Internal Seals: High-grade EPDM rubber resistant to glycol-based brake fluids.
• Finish: Protective coating to resist external corrosion and road grime.
• Compatibility: Works with DOT 3 or DOT 4 brake fluid.

Pro Tips from the Appletree Specialist

Pro Tip 1: Always Bench Bleed Before Installation

One of the most common mistakes VW owners make is installing a "dry" master cylinder directly onto the car. Air trapped inside the cylinder bores is incredibly difficult to remove once the lines are attached. Always use a bench bleeding kit to cycle brake fluid through the master cylinder on a workbench or in a vise before mounting it to the firewall. This ensures the internal pistons are fully primed and will significantly reduce the time spent bleeding the wheel cylinders and calipers later. If you skip this step, you may struggle with a "spongy" pedal for weeks, regardless of how much fluid you flush through the lines.

Pro Tip 2: Verify Your Pushrod Clearance

When installing a new master cylinder, it is vital to check the clearance between the brake pedal pushrod and the master cylinder piston. There should be approximately 1mm of free play (air gap) before the rod makes contact with the piston. If the pushrod is too long or adjusted too tightly, it will prevent the internal piston from returning to its "home" position. This blocks the compensation ports, causing your brakes to "drag" and eventually lock up as the fluid heats up and expands. Always double-check your pedal linkage adjustment to ensure a full release after every stop.

Pro Tip 3: Flush the Entire System and Use Fresh Fluid

A new master cylinder should never be introduced to old, contaminated brake fluid. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time, which leads to internal rust and boiling points that are dangerously low. Before connecting your new EMPI unit, we recommend blowing out your hard lines with compressed air or flushing them with fresh fluid to remove any sediment. Use only high-quality DOT 3 or DOT 4 fluid from a sealed container. Never use silicone-based DOT 5 fluid unless your entire system has been specifically converted and cleaned for it, as mixing the two will lead to seal swelling and catastrophic brake failure.
