Swing Axle Boot, for Beetle & Ghia 48-68 Sold Each, Premium

OVERVIEW

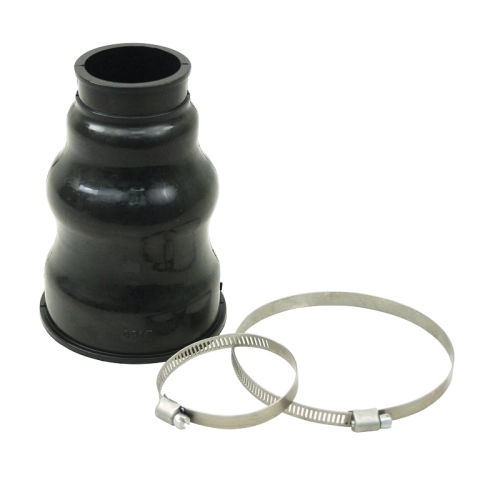

When it comes to maintaining the integrity of your air-cooled Volkswagen''s drivetrain, few components are as critical yet overlooked as the swing axle boot. This premium-grade IAP swing axle boot is engineered to provide a robust, leak-proof seal between the transaxle case and the axle tubes. In a swing axle setup, the axle tubes must pivot constantly as the suspension travels up and down; this movement puts immense stress on the rubber boot. Our premium replacement is manufactured from a high-density rubber compound that resists the corrosive effects of gear oil and environmental ozone, ensuring that your precious transmission fluid stays inside the gearbox where it belongs. Unlike inferior, thin-walled boots that dry rot and crack within a single season, this premium version is built to withstand the rigors of daily driving and the extreme articulation found in off-road dune buggies and lowered street cruisers alike.

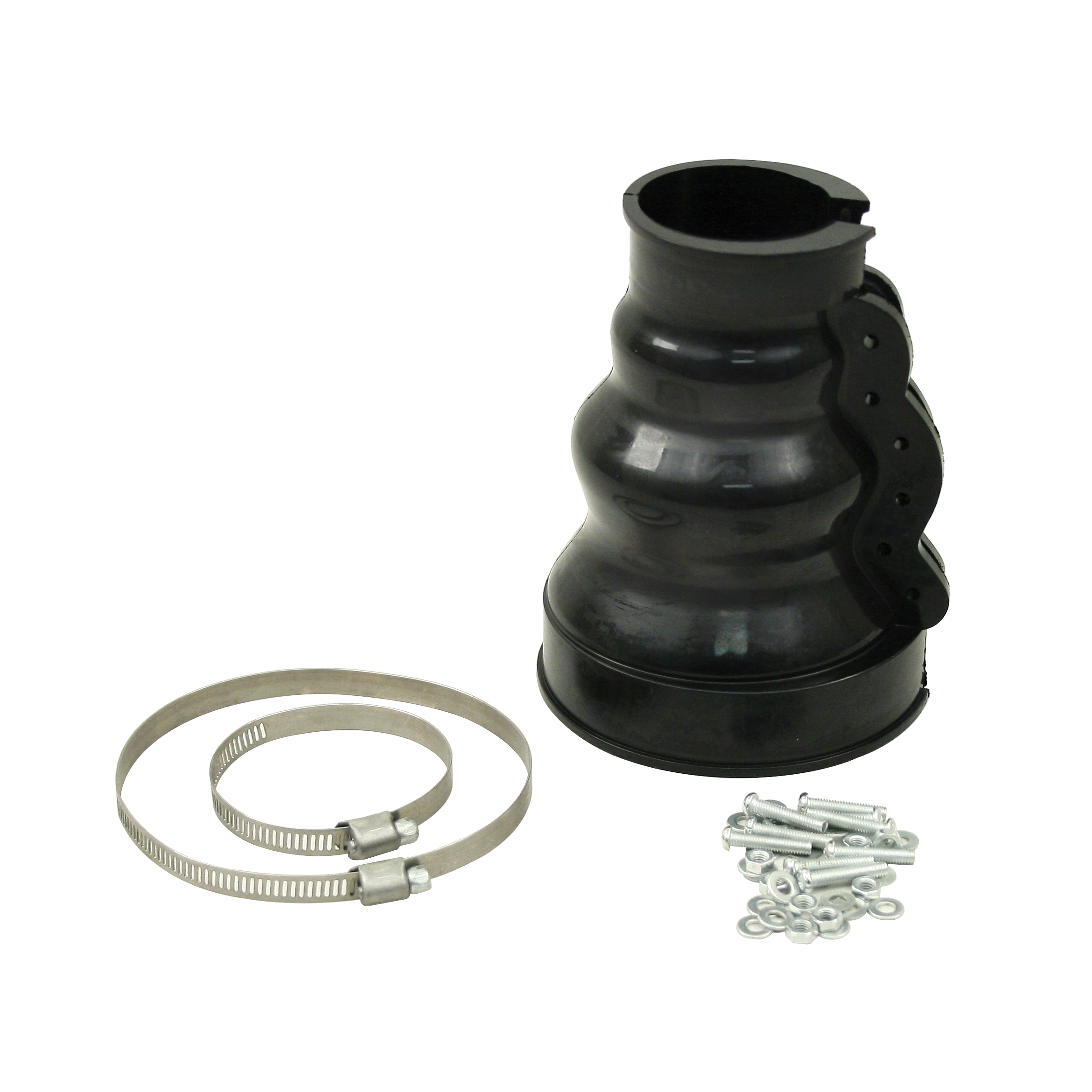

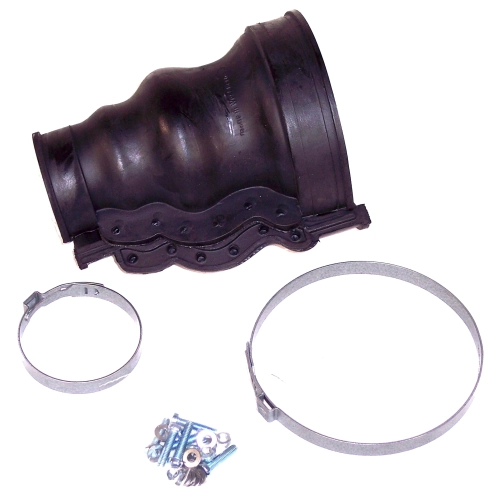

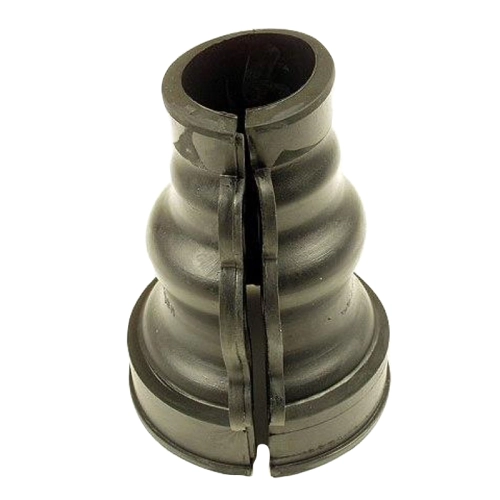

The genius of this specific swing axle boot lies in its "split" design, which is a lifesaver for the vintage VW enthusiast. Traditionally, replacing an axle boot required a complete teardown of the rear suspension, including removing the brake drums, backing plates, and sliding the axle tubes out of the transmission. This premium split boot allows you to perform the replacement without the labor-intensive disassembly, saving you hours of shop time while still providing a factory-quality seal. Each kit comes complete with a high-quality hardware set, including the necessary screws, nuts, and crimp-style clamps to ensure a tight fit. Whether you are restoring a showroom-quality 1956 Karmann Ghia or keeping a 1960s Beetle on the road, this boot offers the perfect balance of OEM fitment and modern material durability. Don''t risk a catastrophic transaxle failure due to oil starvationupgrade to a premium seal that is designed to last.

FITMENT

• VW Beetle (Type 1): 1946 through 1968 (Swing Axle models only)
• VW Karmann Ghia: 1956 through 1968
• VW Bus (Type 2): 1952 through 1967 (Split Window models)
• VW Type 3 (Squareback, Fastback, Notchback): 1961 through 1968 (Swing Axle models)
• VW Thing (Type 181): Early European swing axle variants
• Custom Applications: All Dune Buggies, Sand Rails, and Trikes utilizing a VW Swing Axle transaxle

SPECS

• OEM Part Number Reference: 111-598-021A / 111-598-021AP
• Material: Heavy-duty Nitrile-infused rubber for superior oil and UV resistance
• Design Type: Split-boot configuration for "on-car" installation
• Hardware Included: Zinc-plated assembly screws, nuts, and heavy-duty crimp-style clamps
• Color/Finish: Matte Black
• Fitment Diameter: Standard 80mm flange fitment
• Quantity: Sold Each (Two required per vehicle)

PRO TIPS

1. Proper Seam Orientation is Critical

One of the most common mistakes when installing a split swing axle boot is positioning the seam at the 6 o''clock or 12 o''clock position. For maximum longevity and a leak-free seal, you must "clock" the seam to either the 10 o''clock or 2 o''clock position. Positioning the seam at 12 o''clock subjects it to excessive stretching during suspension compression, while 6 o''clock puts the seam in constant contact with the gear oil pool, increasing the risk of seepage. The 10 or 2 o''clock position allows the rubber to flex naturally as the axle moves through its arc without putting undue tension on the hardware or the rubber flange.

2. Surface Preparation and Degreasing

Before installing your new premium boot, it is absolutely vital to clean the mounting surfaces on both the transmission nose and the axle tube. Any residual gear oil or road grime will prevent the rubber from "biting" onto the metal, which can lead to the boot sliding out of place or leaking under pressure. Use a high-quality brake cleaner or degreaser to ensure the surfaces are bone-dry. Additionally, when assembling the split seam, ensure the mating surfaces of the rubber are clean; a tiny amount of silicone-based sealant on the seam itself can provide an extra layer of insurance against leaks, but do not over-apply it.

3. Use the Correct Tooling for Crimp Clamps

This kit includes high-quality crimp-style clamps (Oetiker style) which provide a much more uniform 360-degree seal than traditional worm-gear hose clamps. To install these correctly, we highly recommend using a pair of CV Boot Clamp Pliers. Using standard side cutters or needle-nose pliers can result in an uneven crimp or, worse, can tear the metal band, leading to a loose fit. A proper crimp ensures that the boot remains stationary even during high-speed rotation and extreme suspension travel. When tightening the small screws along the seam, ensure they are snug but do not over-torque them, as you don''t want to distort the rubber mounting holes.
