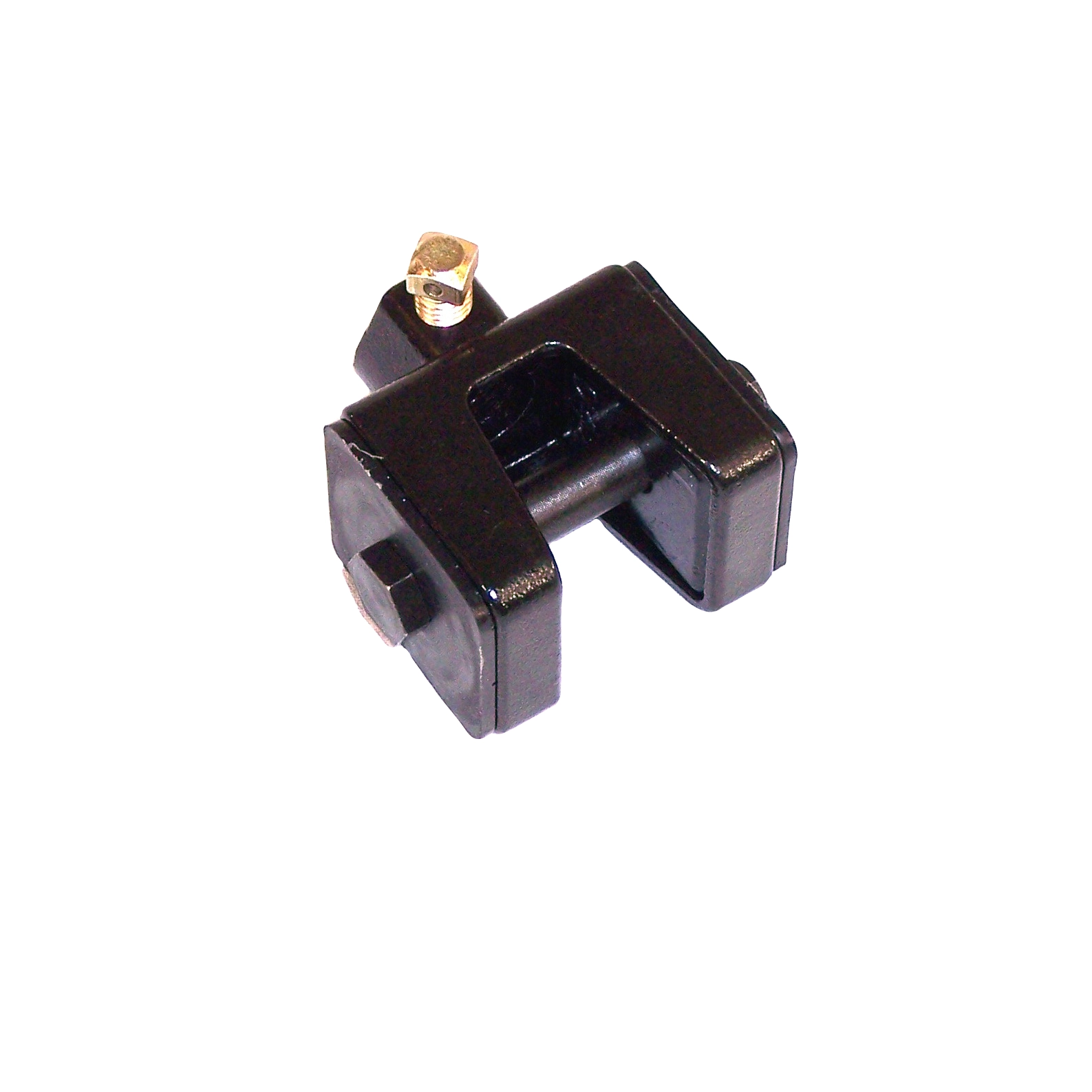

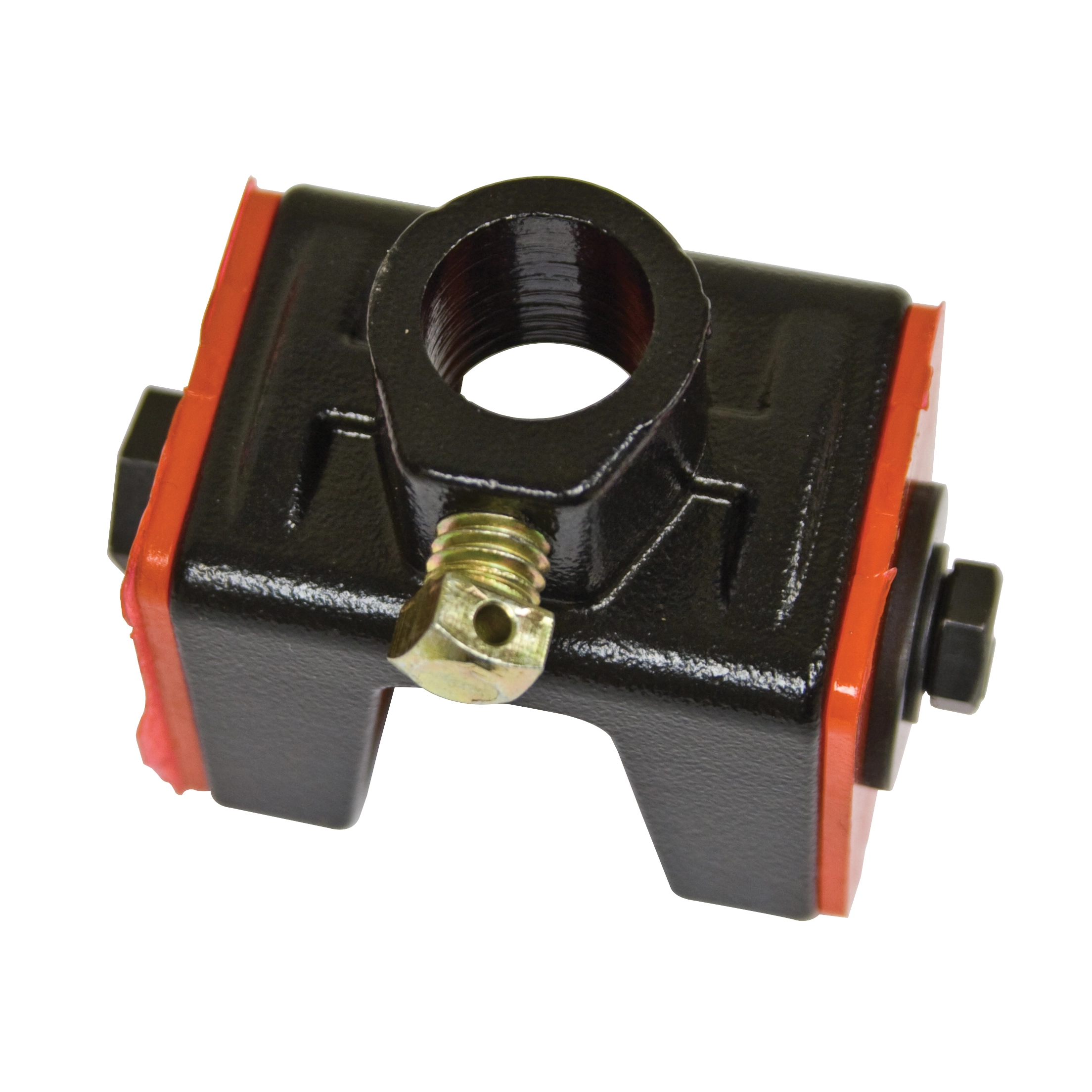

Shift Coupler, Late Style Heavy Duty

The Ultimate Upgrade for Precise Gear Engagement

When it involves the soul of your air-cooled Volkswagen, few things are as critical yet as frequently overlooked as the shift coupler. If you have ever felt like you were stirring a pot of soup instead of selecting a gear, your factory coupler is likely the culprit. This Heavy Duty Late Style Shift Coupler from Latest Rage is engineered to eliminate the vague, "rubbery" feeling associated with aging OEM components. By utilizing a more robust construction and tighter tolerances, this coupler ensures that every movement of your shift lever is translated directly to the transmission nose cone. Whether you are navigating tight city streets in a restored Beetle or slamming through gears in a high-performance dune buggy, this heavy-duty unit provides the structural integrity needed to maintain consistent shifting patterns under load. It is the definitive solution for drivers who demand a mechanical connection that feels as solid as the day the car left the factory, if not better.

What sets this heavy-duty version apart from standard replacements is the sheer density and precision of its manufacturing. Designed specifically for the late-style shift rod adjusters, this coupler features a reinforced cage and high-durometer inserts that resist the flex and distortion common in stock rubber units. It is important to note that because this is a high-performance part designed with "zero-play" in mind, the gap for the shift adjuster is intentionally tight. This ensures that once installed, there is no lateral movement to degrade your shift quality. While this may require a bit of clearancing or light filing during the installation process to accommodate your specific shift rod, the result is a shifting experience that is remarkably crisp and reliable. Don''t settle for a soft, mushy gear change when you can bolt in a component that is built to handle the rigors of both daily driving and off-road abuse.

Late Style Fitment and Compatibility

This shift coupler is designed for "Late Style" Volkswagen shift linkages. Generally, this applies to the following models and year ranges:

• VW Beetle (Type 1): 1964 through 1979 (Standard and Super Beetle).
• VW Karmann Ghia: 1964 through 1974.
• VW Type 3 (Squareback, Fastback, Notchback): 1964 through 1973.
• VW Thing (Type 181): 1973 through 1975.
• Custom Applications: Ideal for Dune Buggies, Sand Rails, and Baja Bugs utilizing a late-style Type 1 transaxle and shift rod.

Technical Specifications and Dimensions

Every Appletree Auto part is vetted for quality. Here are the technical details for the AC710001 Heavy Duty Coupler:

• Part Number: AC710001 (Cross-reference: 16-5105-0).
• Overall Length: 2 1/4 inches.
• Overall Width: 2 inches.

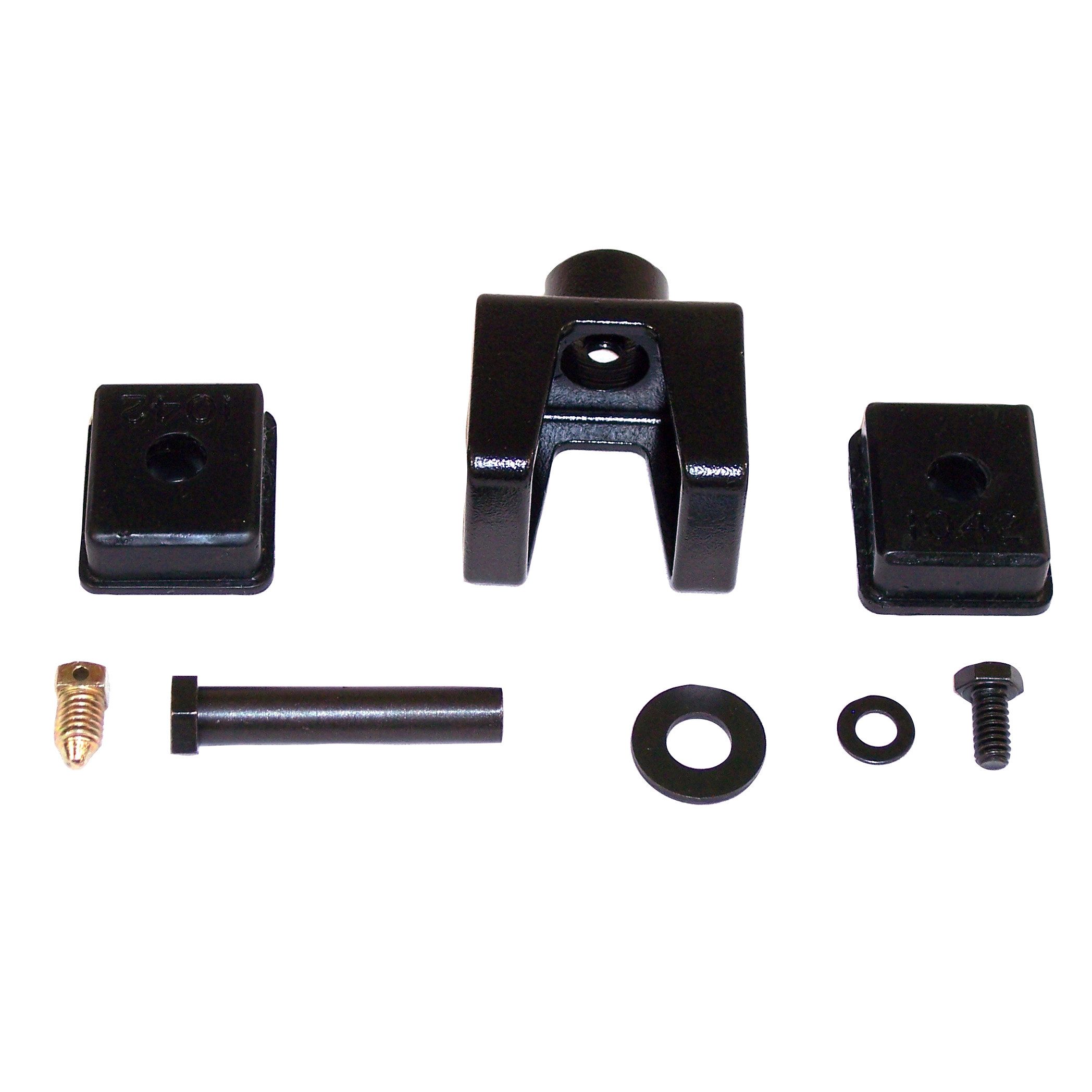

• Material: Reinforced steel outer cage with heavy-duty dampening inserts.
• Hardware: Includes necessary square-head set screw and safety wire holes (where applicable).
• Design: Late-style interface for square-end shift rod adjusters.
• Performance Grade: Heavy Duty / Off-Road & Street High Performance.

Expert Pro Tips from the Shop Floor

Pro Tip 1: Precision Clearancing for a Perfect Fit

Because these are heavy-duty units, the internal gap for the shift rod adjuster is manufactured to very tight tolerances. It is common to find that the coupler won''t immediately slide over the end of your shift rod. Don''t force it with a hammer, as this can damage the transmission''s shift rails. Instead, use a fine-tooth metal file or 220-grit emery cloth to lightly clean the flats of your shift rod adjuster and the internal faces of the coupler. A "snug" fit is what you are aiming for to ensure there is no "slop" in your gear selection. A small amount of white lithium grease on these surfaces during assembly will also prevent future corrosion and make the next service interval much easier.

Pro Tip 2: The "Golden Rule" of Shifter Alignment

Installing the coupler is only half the battle; alignment is where the magic happens. Before you tighten the set screw, ensure your transmission is in neutral and your shifter is centered in the cockpit. We recommend loosely installing the coupler, then having an assistant hold the shifter in the neutral position between 1st and 2nd gear. Tighten the coupler at the rear while the rod is in this "natural" center. If you find you can''t hit 2nd or 4th gear easily after installation, the rod is usually pushed too far forward or back into the coupler. Small adjustments of even 1/16th of an inch can make a massive difference in how the gate feels.

Pro Tip 3: Don''t Forget the Front Bushing

A heavy-duty rear coupler is a fantastic upgrade, but it can''t fix a worn-out front shift rod bushing. While you have the inspection plate open under the rear seat to replace this coupler, take a moment to check the plastic bushing located just behind the shifter base under the inspection hump. If that bushing is cracked or missing, your shift rod will "whip" inside the tunnel, negating the benefits of your new heavy-duty coupler. For the ultimate shifting setup, we always recommend replacing the front shift rod bushing and the shift coupler at the same time to ensure the entire linkage system is rigid and responsive.
