Shift Rod Bushing Kit, Fits Stock & Universal Shafts

Restore Precision to Your Shifting with the EMPI Shift Rod Bushing Kit

If you have ever felt like you were stirring a pot of thick stew while trying to find third gear in your classic Volkswagen, you are likely dealing with a disintegrated shift rod bushing. Over decades of use, the original factory nylon bushings become brittle, crack, and eventually crumble into dust inside the center tunnel of your chassis. This EMPI Shift Rod Bushing Kit is the definitive solution to restoring that crisp, precise gear selection that made the air-cooled VW legendary for its mechanical simplicity. By replacing the worn-out guide and bushing, you eliminate the excessive lateral movement of the shift rod, ensuring that every movement of your gear shifter translates directly to the transmission nose cone without the vague, sloppy feeling common in neglected Volkswagens. It is one of the most cost-effective ways to improve the drivability of your vehicle, making every gear change feel deliberate and solid.

This comprehensive kit is designed for maximum versatility, featuring a high-density nylon bushing, a heavy-duty steel hanger guide, and the essential wire lock ring to keep everything secure. Whether you are performing a factory-correct restoration on a 1967 Beetle or building a custom long-travel sand rail with a universal shift shaft, this kit provides the necessary support to keep your linkage aligned. The hanger guide is engineered to match the factory mounting points inside the tunnel, while the bushing itself offers a low-friction surface that resists grease degradation and heat. Don''t settle for a sloppy driving experience when a simple, high-quality component upgrade can make your car feel like it just rolled off the assembly line in Wolfsburg. This kit is a must-have for any enthusiast looking to tighten up their linkage and protect their synchronizers from the missed shifts caused by a wandering rod.

Vehicle Fitment and Compatibility

• Volkswagen Beetle: 1950 through 1979 (All Standard and Super Beetle models)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 3: 1962 through 1973 (Squareback, Fastback, and Notchback)
• Volkswagen Thing (Type 181): 1973 through 1974
• Off-Road Applications: Fits most Dune Buggies, Sand Rails, and Manx-style kits utilizing stock VW-style shift rods or universal aftermarket shafts.

Technical Specifications and Components

• Manufacturer Part Number: 98-7014-0
• Bushing Material: High-density, self-lubricating nylon for reduced friction and long-term durability.
• Hanger Guide Material: Heavy-gauge stamped steel with a corrosion-resistant finish.
• Locking Mechanism: Includes a spring-steel wire lock ring to prevent the bushing from migrating during use.
• Inside Diameter: Precision-sized for standard 20mm VW shift rods and universal 3/4-inch shafts.

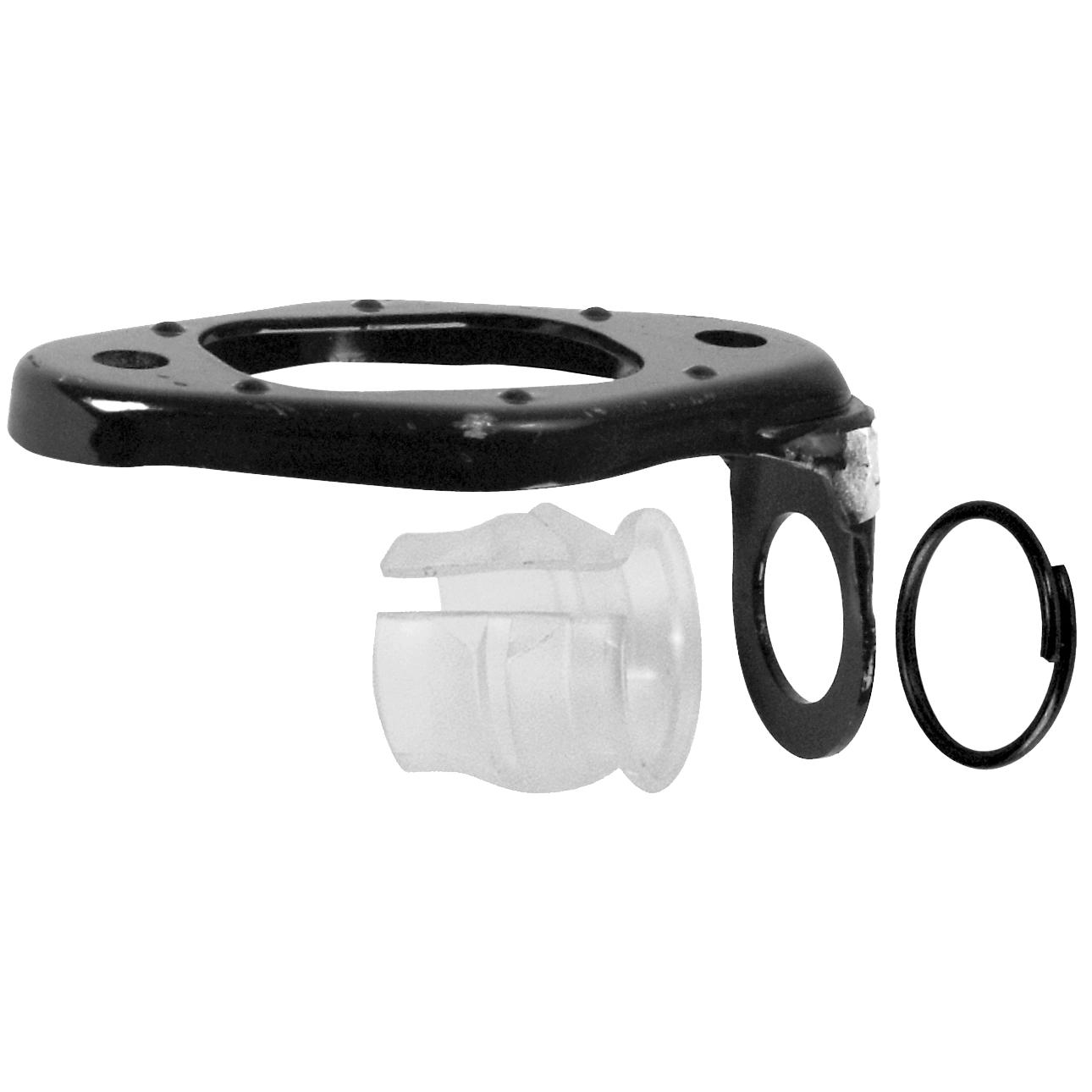

• Kit Contents: 1 Steel Hanger Guide, 1 Nylon Shift Rod Bushing, 1 Wire Retaining Clip.
• Installation Location: Mounts inside the center tunnel, typically accessed through the shifter hole or the front inspection plate.

Professional Installation Tips from the Appletree Garage

Tip 1: Use the Right Lubricant for Longevity

While the nylon bushing is technically self-lubricating, we highly recommend applying a generous coating of high-quality white lithium grease or a silicone-based grease to the inner diameter of the bushing before sliding it onto the shift rod. Avoid using heavy chassis grease or petroleum-based products that can attract grit and dirt inside the tunnel, which acts like sandpaper and wears down the bushing prematurely. A clean, well-lubricated bushing ensures that the shift rod slides effortlessly back and forth, reducing the physical effort required at the shifter handle and preventing that annoying "squeak" often heard in dry tunnels.

Tip 2: Inspect the Shift Rod Surface Before Assembly

Before you slide your new EMPI bushing onto the shaft, take a moment to inspect the surface of the shift rod itself. Over years of metal-on-metal contact (after the old bushing failed), the rod can develop burrs, rust, or deep scratches. If the rod is rough, it will chew through your new nylon bushing in a matter of months. Use a fine-grit emery cloth or a Scotch-Brite pad to polish the area where the bushing sits until it is smooth to the touch. This extra five minutes of prep work will ensure that your new bushing lasts for another twenty years without failing.

Tip 3: Check Your Rear Coupler and Shifter Base

A new shift rod bushing is only one part of the shifting equation. If you install this kit and still find that your shifting is "mushy," you likely have a worn-out rear shift coupler (located under the rear seat inspection plate) or a worn-out shifter base plate. We always recommend checking the entire linkage system as a whole. Ensure the shift rod is straight, the rear coupler cage is not cracked, and the shifter ball is properly greased. Replacing the bushing in conjunction with a fresh rear coupler will result in a "bolt-action" shifting feel that makes driving your air-cooled VW a significantly more enjoyable and precise experience.
