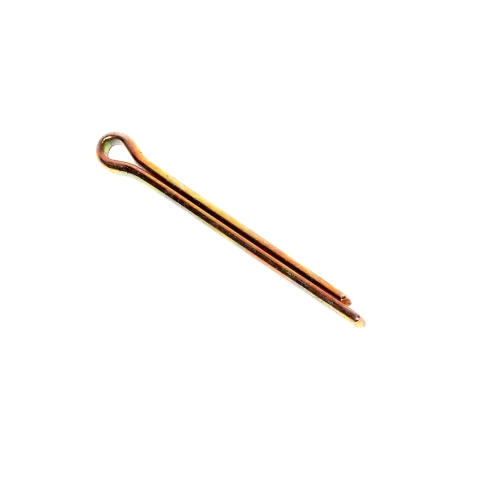

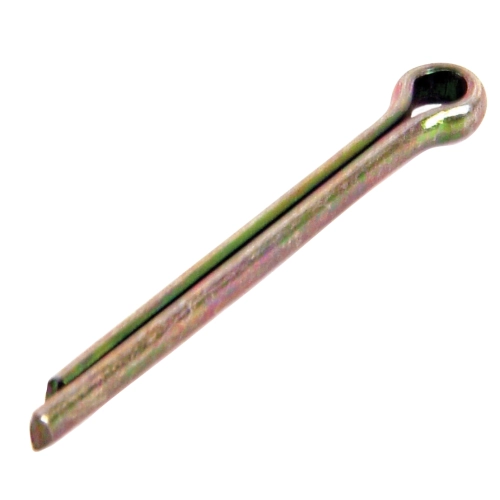

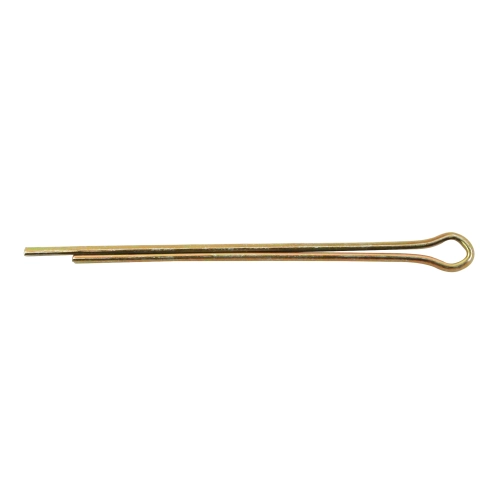

Rear Axle Cotter Pin, for All Aircooled VW 36mm Nuts

OVERVIEW

In the world of air-cooled Volkswagens, few components carry as much responsibility for your safety as the rear axle assembly. This heavy-duty Rear Axle Cotter Pin is the final, critical line of defense for your 36mm axle nuts. When you are dealing with the massive torque requirements of a Type 1, Type 3, or Ghia rear endoften exceeding 217 foot-poundsthe vibration and heat generated during operation can place immense stress on the hardware. Without a fresh, high-quality cotter pin properly installed through the castle nut and the axle stub, you run the risk of the axle nut backing off. A loose nut leads to ruined brake drum splines, damaged axle shafts, and in the worst-case scenario, the wheel assembly departing from the vehicle entirely. At Appletree Automotive, we understand that a two-dollar part can save a two-thousand-dollar repair, which is why we provide only the most reliable hardware for your restoration or daily driver.

Every seasoned VW mechanic knows that you should never, under any circumstances, reuse an old cotter pin. These pins are designed for a single-use application; the act of bending the legs to secure the nut creates work-hardening in the metal. If you attempt to straighten and rebend a used pin, the metal becomes brittle and is prone to snapping under the extreme centrifugal forces and vibrations of highway speeds. This EMPI-sourced cotter pin is manufactured to precise tolerances to ensure a snug fit within the axle bore and the slots of your 36mm castle nut. Whether you are performing a routine brake job, replacing a wheel bearing, or building a high-performance sand rail, having a handful of these pins in your toolbox is essential. Don''t let a small oversight lead to a catastrophic failure on the road or the trail; ensure your rear end is locked down tight with hardware you can trust.

FITMENT

This rear axle cotter pin is designed for use with all air-cooled VW models utilizing a 36mm rear axle nut, including:

• Volkswagen Beetle (Type 1): 1950 - 1979 (All Sedan and Convertible models)
• Volkswagen Karmann Ghia: 1956 - 1974
• Volkswagen Bus (Type 2): 1950 - 1963 (Early models with 36mm nuts)
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 - 1973
• Volkswagen Thing (Type 181): 1973 - 1974
• Dune Buggies & Sand Rails: All custom builds utilizing stock VW Type 1 or Type 3 rear torsion and axle assemblies.

SPECS

Detailed technical specifications for the N125481 rear axle cotter pin:

• Material: High-tensile strength carbon steel for maximum shear resistance.
• Finish: Zinc-plated coating to prevent rust and corrosion in harsh environments.
• Application: Specifically sized for the large-diameter bore of VW 36mm rear axle castle nuts.
• Pin Style: Split-leg design for easy installation and secure mechanical locking.
• Compatibility: Works with both OE Volkswagen and aftermarket EMPI 36mm nuts.
• Quantity: Sold individually (two required per vehicle).
• Weight: 0.1 lbs.

PRO TIPS

Tip 1: The Golden Rule of Torque Alignment

When installing your 36mm rear axle nut, always torque it to the minimum factory specification first (typically 217 ft-lbs for most Type 1 models). If the slot in the castle nut does not align perfectly with the hole in the axle, never loosen the nut to make the pin fit. Instead, continue tightening the nut just enough to align the next available slot with the hole. Loosening the nut to align the pin compromises the clamping force required to keep your brake drums from stripping their splines.

Tip 2: Proper Leg Bending Technique

For maximum safety and a professional finish, use a pair of side-cutters or needle-nose pliers to bend the legs of the cotter pin correctly. One leg should be bent flat over the end of the axle, while the other leg should be bent downward against the flat side of the nut. This prevents the pin from rattling or vibrating, which can lead to metal fatigue over time. Avoid leaving the legs sticking out at odd angles, as they can snag on your hubcaps or even cut your hands during future maintenance.

Tip 3: Inspect the Axle Hole

Before inserting your new cotter pin, take a moment to inspect the hole in the axle stub for any burrs or debris. Years of use can sometimes deform the edges of the hole, making it difficult to slide a new pin through. A quick pass with a small round file or a bit of sandpaper will ensure a smooth fit. If the pin feels loose or has too much "play" inside the hole, check your axle nut for wear; a tight, secure fit is vital for preventing the micro-movements that eventually lead to hardware failure.
