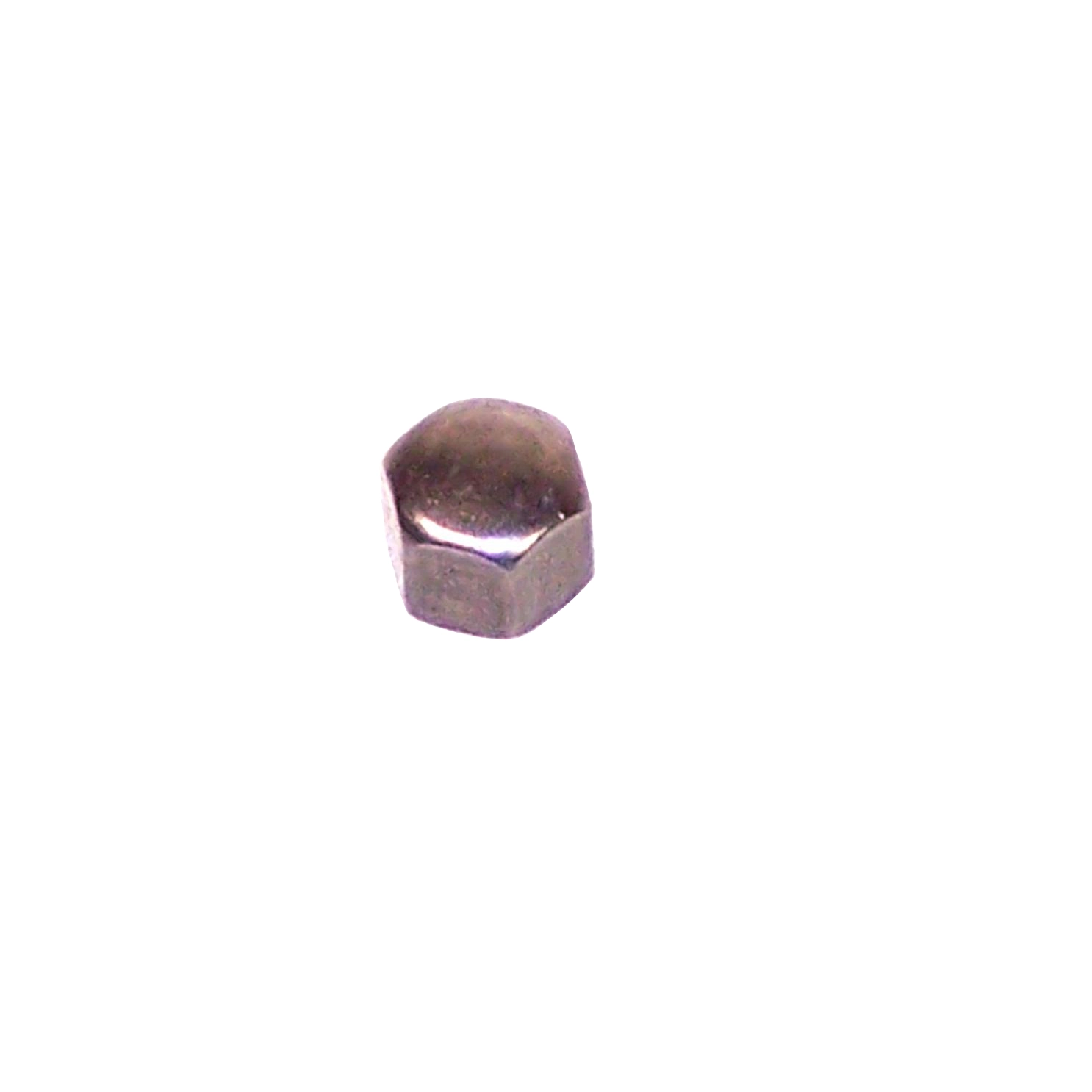

Oil Drain Plate Cap Nut, 6mm, Sold Each

OVERVIEW

When it comes to maintaining the integrity of your vintage air-cooled Volkswagen engine, the smallest components often play the most critical roles. The oil drain plate is a primary service point for your VW, and ensuring a leak-free seal is paramount to the longevity of your flat-four. This 6mm cap nut is a premium replacement designed specifically for the oil strainer cover plate. Unlike standard hex nuts, the closed-end cap design prevents oil from seeping through the threads of the studs, providing an extra layer of protection against the common "VW drip." The smaller diameter of these specific nuts allows for much easier access with a socket or wrench, especially when working within the tight confines of the sump area or when using aftermarket deep sumps where clearance is at a premium.

Precision-engineered by EMPI, a leader in air-cooled performance and restoration parts, this 6mm cap nut is the professional choice for engine builders and weekend mechanics alike. Reusing old, rounded-off, or corroded hardware is a recipe for disaster, often leading to stripped case studs or improper torque application. By replacing your hardware during every oil screen cleaning or engine rebuild, you ensure that the pressure is evenly distributed across the drain plate and gaskets. These nuts are sold individually, allowing you to replace a single lost piece or refresh the entire set of six to give your engine case that clean, factory-finished look while maintaining a reliable, airtight seal for your lubrication system.

FITMENT

This 6mm cap nut is designed for the standard oil drain plate found on most Type 1 based air-cooled engines. Fitment includes, but is not limited to, the following models:

• Volkswagen Beetle: 1954 through 1977 (Sedan and Convertible)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus (Type 2): 1954 through 1971 (1200cc, 1500cc, and 1600cc engines)
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• Volkswagen Thing (Type 181): 1973 through 1974
• Custom Applications: Any VW air-cooled engine utilizing a 6mm stud for the oil strainer cover plate.

SPECS

Technical specifications for the EMPI N110624 oil drain plate cap nut:

• Thread Pitch: M6 x 1.0 (Metric)
• Nut Style: Cap Nut (also known as an Acorn Nut)
• Material: High-strength hardened steel
• Finish: Zinc Plated for corrosion resistance and durability
• Application: Oil Drain Plate / Strainer Cover
• Wrench Size: Standard 10mm
• Quantity: Sold Each (Note: Standard VW engines require 6 per plate)

PRO TIPS

1. Observe Strict Torque Specifications

One of the most common mistakes in VW engine maintenance is over-tightening the oil drain plate nuts. The studs are threaded into a relatively soft magnesium or aluminum engine case. You should only tighten these 6mm nuts to approximately 5 foot-pounds (60 inch-pounds). Over-tightening will almost certainly pull the studs out of the case, necessitating a professional thread repair or "case-saver" installation. Use a calibrated inch-pound torque wrench to ensure even pressure across the plate without risking damage to your engine block.

2. Always Use New Copper Washers

A cap nut alone isn''t enough to stop a leak; it works in conjunction with a copper crush washer. Every time you remove the oil drain plate, you must replace the six small copper washers that sit beneath these nuts. These washers are designed to crush and deform slightly to create a liquid-tight seal against the plate. Reusing old, hardened copper washers is the leading cause of "mystery leaks" in the sump area. Ensure the surface of the plate is clean and flat before installing the new washers and nuts.

3. Check Stud Health During Installation

Before threading on your new cap nuts, take a moment to inspect the 6mm studs protruding from the engine case. If a stud feels loose or looks like it is backing out, do not attempt to tighten a nut onto it. Remove the stud, clean the threads, and use a small amount of blue thread-locker when re-seating it into the case. If the threads in the case are already stripped, you will need to address this before finishing your oil change. Installing fresh hardware like these EMPI cap nuts is the best time to perform a thorough inspection of the lower engine assembly.
