Module Kit Series 6000

OVERVIEW

Precision is the difference between a podium finish and a catastrophic engine failure, especially when you are pushing a high-performance air-cooled Volkswagen to its absolute limits. The MSD Ignition Module Kit Series 6000 (MSD8746) is an essential toolkit for any serious racer or street enthusiast who demands exact control over their engine''s maximum RPM. Designed to plug directly into MSD 6, 7, and 8-series ignition boxes, as well as standalone RPM limiters, these modules provide a fail-safe mechanical stop to prevent over-revving. Whether you are running a high-compression 2275cc drag motor or a screaming 1914cc weekend warrior, having the ability to swap chips in seconds allows you to tune your redline based on track conditions, gear ratios, or valve spring longevity. Don''t leave your expensive rotating assembly to chance; these modules offer the peace of mind that only genuine MSD engineering can provide.

This specific kit covers the critical high-RPM spectrum of 6,000 to 6,800 RPM, which is the "sweet spot" for many performance VW builds utilizing aftermarket camshafts like the Engle FK-series or Web-Cam grinds. Each kit includes five individual modules spaced in 200 RPM increments, allowing for fine-tuned adjustments that dials in your shift points and safety ceiling. The modules are constructed with high-quality internal resistors and gold-plated pins to ensure consistent electrical resistance and a secure fit, even in the high-vibration environments of a sand rail or a stiffly-sprung Beetle. At Appletree Automotive, we know that air-cooled engines are an investment of time and money; utilizing the MSD8746 kit is one of the smartest insurance policies you can buy to protect that investment while extracting every ounce of horsepower from your Volkswagen.

FITMENT

This module kit is compatible with any MSD Ignition Control box or accessory that utilizes standard plug-in RPM modules, including but not limited to:

• MSD 6 Series: 6A, 6AL, 6ALN, 6BTM.
• MSD 7 Series: 7AL-2, 7AL-3, 7-series Race Ignitions.
• MSD 8 Series: High-output racing ignitions.
• RPM Limiters: MSD 8728, 8738, and 2-Step/3-Step Launch Controllers.
• Vehicle Applications: Universal fitment for any Air-cooled VW (Beetle, Ghia, Bus, Type 3, Thing) or Off-road vehicle (Sand Rail, Baja Bug) equipped with an MSD ignition system.

SPECS

• Product Brand: MSD Ignition
• Part Number: MSD8746
• RPM Range: 6,000 to 6,800 RPM
• Module Increments: 200 RPM

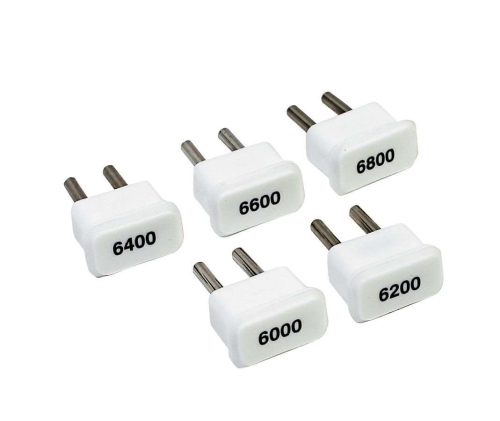

• Modules Included: 6,000, 6,200, 6,400, 6,600, and 6,800 RPM
• Quantity: 5 Modules per kit
• Connector Type: Two-pin plug-in design
• Pin Material: Gold-plated for superior conductivity
• Housing Material: High-temp molded plastic
• Weight: 0.14 lbs
• UPC/GTIN: 085132087464

PRO TIPS

1. Match Your Limiter to Your Valve Train

When selecting which module from the MSD8746 kit to install, always set your RPM limit at least 200-300 RPM below your valve float point. In an air-cooled VW, valve float is often the primary cause of dropped valves and destroyed pistons. If you are running single heavy-duty springs, you might want to stay on the lower end of this kit (6,000-6,200 RPM). If you have high-quality dual springs and chromoly retainers, you can safely move toward the 6,600-6,800 RPM chips. Always prioritize the mechanical limits of your specific cylinder head build over the desire for more revs.

2. Ensure a Secure Connection in High-Vibration Environments

Vibration is the enemy of electronics, especially in off-road Baja Bugs and Sand Rails. Before plugging in your module, ensure the socket on your MSD box is clean and free of debris. While the gold-plated pins on these MSD8746 modules resist corrosion, a loose fit can cause the ignition to "stutter" or fail to read the resistance correctly. If the module feels loose when inserted, you can slightly (and very carefully) spread the pins apart to create a tighter tension fit. For extreme off-road use, some racers use a small dab of dielectric grease and a wrap of electrical tape or a zip-tie to ensure the chip never backs out mid-race.

3. Use the 2-Step Strategy for Better Launches

If you are using an MSD 2-Step or 3-Step launch controller, this kit is perfect for finding your optimal "launch" RPM. While the 6,800 RPM chip might be your safety redline in the main ignition box, you can use the lower 6,000 or 6,200 RPM chips in your launch controller to help build consistent starting line performance. Experimenting with different 200 RPM increments allows you to find the exact point where your tires bite without bogging the engine or blowing the tires off in the burnout box. Keeping the full kit in your glove box or tool bag allows you to adjust for track prep changes throughout the day.
