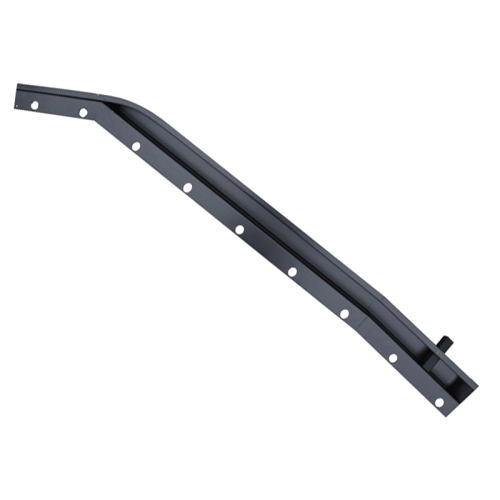

Heater Channel Reinforcement Rail, Right Side, Beetle 50-79

OVERVIEW

When it comes to restoring the structural integrity of your classic Volkswagen Beetle, the heater channel reinforcement rail is a component that simply cannot be overlooked. Often referred to as the backbone of the Beetle body, the heater channel and its accompanying reinforcement rail provide the essential rigidity needed to keep your vehicle''s body straight and true. Over decades of exposure to road salt, moisture, and vibration, the original factory rails often succumb to invasive "tin worm" rust, leading to door sag, body flex, and a compromised safety cell. This KeyParts right-side reinforcement rail is engineered to meet or exceed original equipment specifications, providing a heavy-duty solution for enthusiasts undertaking a comprehensive "pan-off" restoration or targeted metal repair. Whether you are building a show-winning Type 1 or a rugged daily driver, ensuring this structural member is solid is the first step in a professional-grade build.

Specifically designed for the right (passenger) side, this reinforcement rail is a critical upgrade for both Sedans and Convertibles. While all Beetles benefit from the added stiffness, Convertible owners will find this part especially vital, as the lack of a steel roof puts immense stress on the lower body structure. This KeyParts rail is stamped from high-quality, heavy-gauge steel to ensure that your Volkswagen maintains its factory geometry. By replacing a thinned or rotted rail with this robust unit, you are effectively locking in the heater channel''s strength and providing a secure mounting point for the body-to-chassis bolts. Don''t let structural decay ruin your driving experience; invest in the high-quality metalwork that your air-cooled legend deserves. Appletree Automotive is proud to offer this essential piece of the restoration puzzle to help keep your VW on the road for another seventy years.

FITMENT

This Heater Channel Reinforcement Rail is designed for the following Volkswagen models:

• Volkswagen Beetle (Standard): 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977.
• Volkswagen Super Beetle: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979.
• Volkswagen Beetle Convertible: 1950 through 1979.
• Body Style: Fits both Sedan and Convertible models.
• Placement: Right Side (Passenger Side).

SPECS

• Manufacturer: KeyParts
• Part Number: 151-801-132
• Material: Heavy-duty cold-rolled steel for maximum structural rigidity.
• Finish: Coated in a protective transport primer to prevent flash rust during shipping and storage.
• Installation Type: Weld-in replacement for the original structural rail.
• Weight: Approximately 14 lbs, reflecting the robust gauge of the steel used.
• Application: Right side lower heater channel reinforcement.
• Compatibility: Designed to interface perfectly with factory-style heater channels and floor pans.

PRO TIPS

1. Prioritize Proper Alignment Before Final Welding

One of the most common mistakes during a heater channel or reinforcement rail replacement is welding the part into place without checking body alignment. Before you lay down your final beads, we highly recommend "tack welding" the rail and then hanging your doors. Check your door gaps and ensure the body hasn''t bowed or sagged. If you weld this rail while the body is flexed, your doors may never close properly again. Using a body bracing kit or a temporary internal jig is the best way to ensure the shell stays square throughout the metalwork process.

2. Prepare the Surface for Long-Term Corrosion Resistance

While this part comes with a transport primer, that coating is primarily intended to keep the metal clean until it reaches your shop. For the best results, you should strip the primer in the areas where you intend to weld and apply a high-quality weld-through primer. Once the welding is complete, ensure that the internal cavities of the heater channel and reinforcement rail are treated with a cavity wax or internal frame coating. Since these areas are prone to trapping moisture, this extra step is what separates a standard repair from a lifetime restoration.

3. Verify the Condition of the Main Heater Channel

The reinforcement rail is only as strong as the metal it is attached to. Before installing this KeyParts rail, thoroughly inspect the main heater channel (the "A" and "B" pillar mounting points). If the main channel is significantly thinned or perforated, you should consider replacing the entire heater channel assembly. This reinforcement rail is designed to provide the ultimate lower structural support, but it requires a solid foundation to weld to. Always grind back to clean, shiny metal to ensure your welds have the penetration needed to handle the torque and stress of the Beetle''s chassis.
