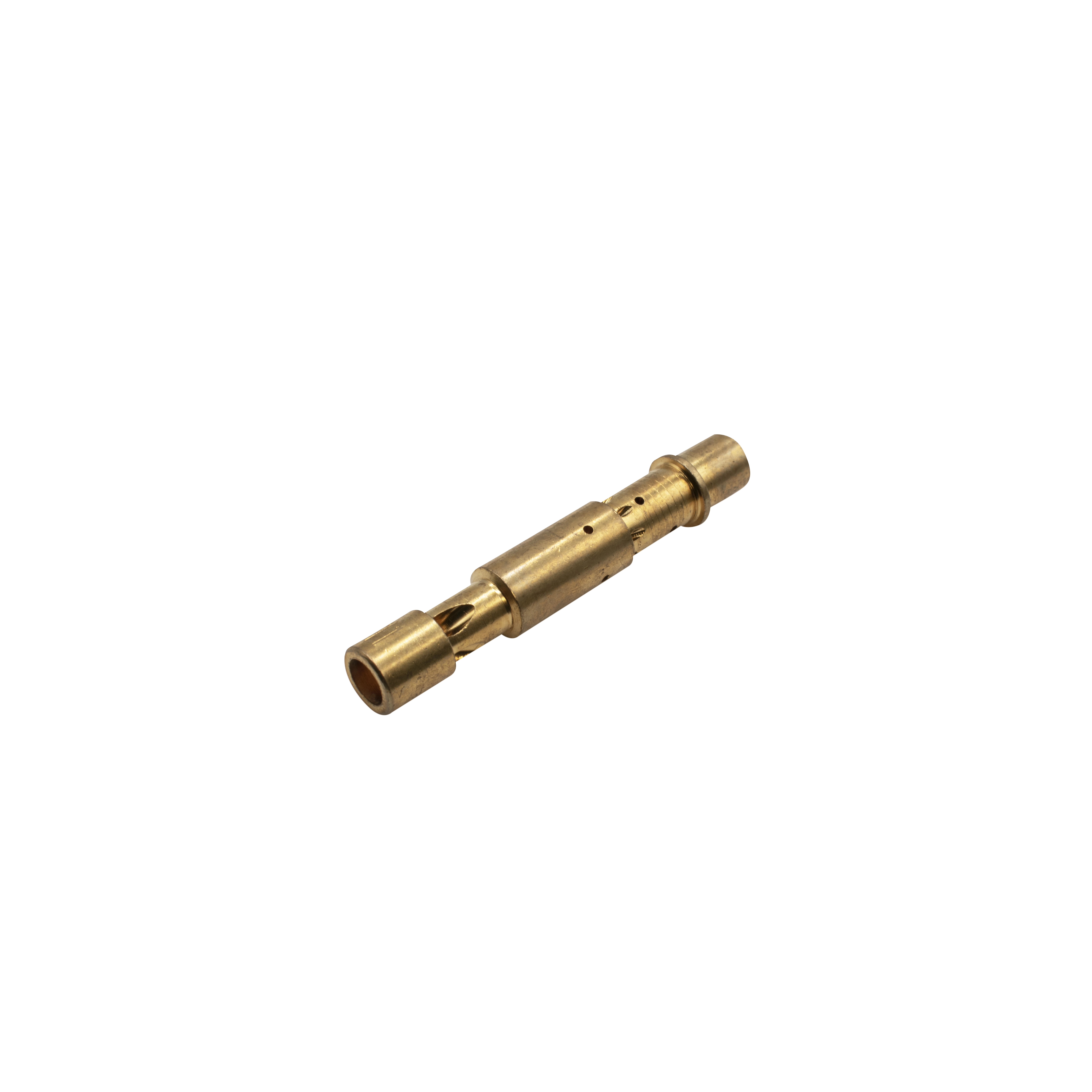

Emulsion Tube, F8, for IDF, HPMX, DCOE DCO, EPC Carbs

OVERVIEW

When it comes to fine-tuning your high-performance air-cooled Volkswagen, the details are everything. The EMPI Emulsion Tube, F8 profile, is a critical component for anyone running Weber IDF, EMPI HPMX, or DCOE series carburetors. Acting as the heart of the fuel metering system, the emulsion tube is responsible for mixing air from the air corrector jet with fuel from the main jet before it enters the carburetor venturi. This atomization process is what determines the smoothness of your engine''s transition from the idle circuit to the main circuit. A properly selected F8 tube ensures that your Beetle, Bus, or Ghia doesn''t suffer from those frustrating mid-range flat spots or "stumbles" that often plague poorly tuned dual-carb setups. By choosing a high-quality EMPI component, you are ensuring precision-drilled orifices and consistent flow characteristics that are essential for balancing a multi-carburetor engine.

As a master specialist, I cannot stress enough how often the emulsion tube is overlooked in favor of larger main jets. However, the F8 profile is specifically designed to manage fuel delivery timing and aeration levels, making it a favorite for street-performance engines that require a crisp throttle response. Whether you are building a 1776cc daily driver or a high-revving 2276cc weekend warrior, these tubes provide the necessary calibration to keep your air-fuel ratios stable across the RPM band. These tubes are manufactured to exacting tolerances, ensuring that each cylinder receives a mirrored fuel curve. Investing in the right emulsion tubes like the 43-5675-0 is the difference between an engine that merely runs and one that truly screams with efficiency and power on the open road or the drag strip.

FITMENT

This F8 Emulsion Tube is designed for use in a wide variety of performance carburetors commonly found on air-cooled VW and high-performance applications. Fitment includes, but is not limited to:

• Weber Carburetors: IDF Series (40, 44, 48) and DCOE / DCO Series.
• EMPI Carburetors: HPMX Series (40, 44, 48) and EPC 48/51 Series.
• Volkswagen Beetle: All years equipped with aftermarket dual IDF or HPMX setups.
• Volkswagen Karmann Ghia: All years using performance dual-throat carburetors.
• Volkswagen Bus (Type 2): Split Window and Bay Window models with upright or pancake engine performance upgrades.
• Volkswagen Type 3: Notchback, Squareback, and Fastback performance builds.
• Volkswagen Thing (Type 181): Off-road and street-tuned versions.
• Custom Applications: Dune Buggies, Sand Rails, and Trikes utilizing the mentioned carburetor types.

SPECS

The technical specifications of the EMPI F8 Emulsion Tube are engineered for durability and precise fuel atomization:

• Manufacturer: EMPI
• Part Number: 43-5675-0
• Tube Profile: F8 (Specific hole pattern for transition timing).
• Material: High-grade machined brass for corrosion resistance and thermal stability.
• Compatible Carb Series: IDF, HPMX, DCOE, DCO, EPC.
• Quantity: Sold Individually (Sold Each).
• Weight: 0.1 lbs.
• Function: Pre-mixes air and fuel for consistent venturi delivery.

PRO TIPS

1. Solving the Mid-Range Stumble

If your engine experiences a "flat spot" or hesitation right as you transition from cruising to acceleration (usually between 2,500 and 3,500 RPM), the emulsion tube is your primary suspect. The F8 profile is often used to delay or advance the point at which the main circuit takes over. If you find your engine is too lean during this transition, double-check that your air corrector jets are sized correctly in conjunction with these F8 tubes. The holes in the F8 tube determine how much air is mixed with the fuel at specific vacuum levels; if you aren''t getting the snap you want, ensure the tubes are seated perfectly and that the tiny orifices are free from any manufacturing burrs or debris.

2. Cleaning and Maintenance for Precision

Because emulsion tubes feature extremely small, precision-drilled holes, even the slightest bit of varnish or fuel sediment can ruin your tune. Whenever you are rebuilding your carbs or changing jets, remove the emulsion tubes and soak them in a high-quality carburetor cleaner. Avoid using metal wires to poke through the holes, as brass is soft and you can inadvertently change the diameter of the orifice, which will lead to uneven cylinder tuning. Instead, use compressed air to blow through the center of the tube and out through the side holes to ensure every passage is 100% clear. Consistency between the left and right carburetors is the key to a smooth-idling VW.

3. The "One Change at a Time" Rule

Tuning a set of dual IDFs or HPMXs can be a daunting task for the uninitiated. When installing new F8 emulsion tubes, do not change your main jets or air correctors at the exact same time. Install the tubes, keep your current jetting, and go for a test drive. This allows you to isolate the effect the F8 profile has on your specific engine''s power band. If the car feels better but still isn''t perfect, then proceed to adjust your air corrector jets. Tuning is a game of increments; by changing only the emulsion tube first, you can accurately gauge if your engine prefers the aeration characteristics of the F8 over other profiles like the F11 or F7.
