Degree Crank Pulley, Sand Sealed, Machine In, Standard Dia

OVERVIEW

When you are building a high-performance air-cooled engine, precision timing and superior oil control are non-negotiable. The EMPI Sand Sealed Degree Crank Pulley is engineered for the serious enthusiast who demands more than what a stock stamped steel pulley can offer. This standard diameter pulley maintains your factory cooling fan speeds and alternator output while providing a crystal-clear, 360-degree scale for pinpoint ignition timing. The "machine-in" design is the gold standard for off-roaders and racers alike, as it replaces the traditional oil return spiral with a modern lip seal. This eliminates the common oil leaks found in high-RPM or high-crankcase-pressure environments, ensuring your engine bay stays clean and your oil stays where it belongsinside the case.

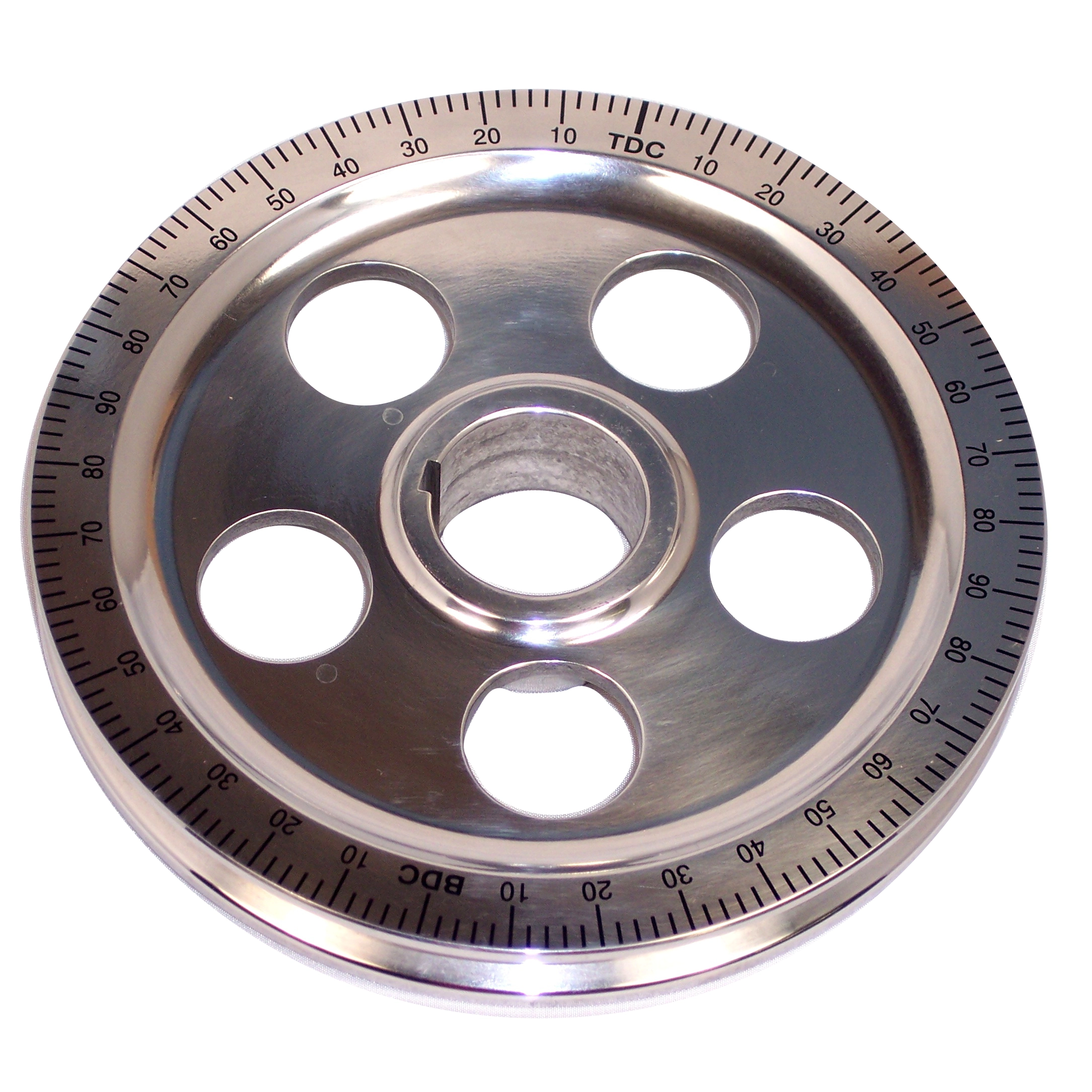

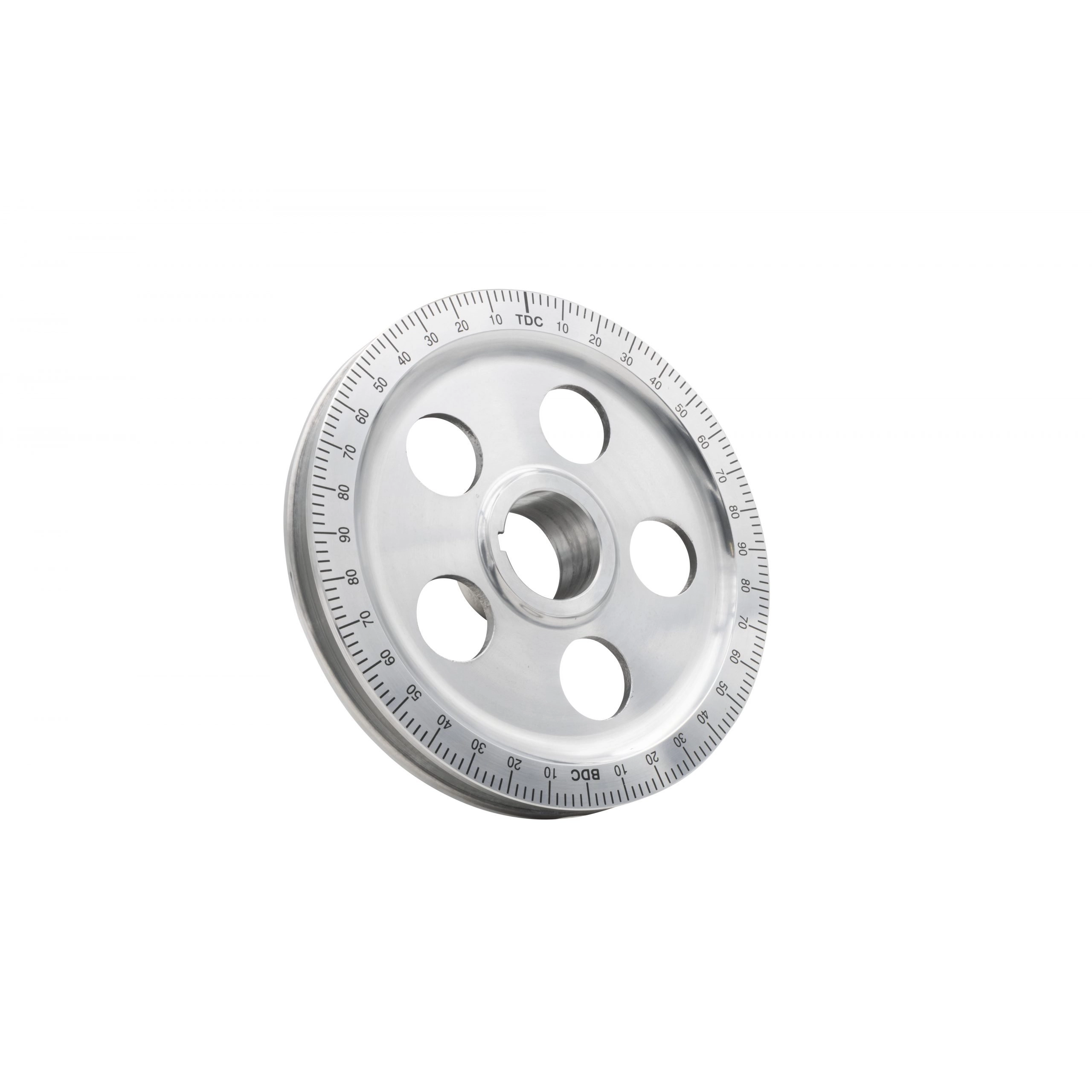

Crafted from high-grade aluminum with a classic 5-hole weight-reduction design, this pulley doesn''t just perform; it looks the part on any show-quality build. The black degree markings are deeply etched for long-term visibility, allowing you to dial in your total advance or check your valves with absolute certainty. Because this is a "machine-in" style kit, it includes the necessary seal, collar, and spacers to complete the conversion. Whether you are blasting through the dunes in a rail or carving corners in a lowered Cal-look Beetle, this sand-sealed setup provides the ultimate barrier against dirt, grit, and sand that would otherwise migrate into your main bearings and destroy your rotating assembly. It''s an investment in the longevity and reliability of your Volkswagen''s heartbeat.

FITMENT

This pulley is designed for Type 1 based air-cooled engines. Please note that "machine-in" sand seals require the engine case to be machined to accept the seal holder.

• Volkswagen Beetle: 1954-1977 (Sedan & Convertible)
• Volkswagen Karmann Ghia: 1956-1974
• Volkswagen Bus / Type 2: 1954-1971 (1200cc, 1500cc, & 1600cc)
• Volkswagen Type 3 (Fastback, Squareback, Notchback): 1961-1973
• Volkswagen Thing: 1973-1974
• Custom Applications: Dune Buggies, Sand Rails, and Trikes using VW Type 1 cases.

SPECS

• Pulley Diameter: Standard (Approx. 6-3/4 inches)
• Material: High-Strength Aluminum Alloy
• Finish: Polished Aluminum with Black Etched Markings
• Design: 5-Hole Weight-Reduced Style
• Seal Type: Sand Seal (Machine-In Lip Seal)
• Degree Range: Full 360-degree markings
• Included Hardware: Seal, Seal Collar, and Spacers
• Installation Requirement: Engine case snout must be machined for seal fitment
• Part Number: 00-8696-0

PRO TIPS

1. Precision Machining is Mandatory

Since this is a "machine-in" style sand seal pulley, you cannot simply bolt it onto a stock, unmodified case. You must have a qualified VW machine shop bore the snout of your engine case to the specific dimensions of the included seal holder. This is typically done during a full engine teardown. If you try to force a fit or use the wrong tolerances, you risk damaging the case or the seal, which defeats the entire purpose of the upgrade. Always measure twice and ensure the seal holder is pressed in straight for a leak-free experience.

2. Verify Belt Alignment and Spacing

When installing a performance aluminum pulley, always check your belt alignment between the crank pulley and the generator or alternator pulley. Even though this is a standard diameter unit, the addition of the sand seal collar and spacers can slightly shift the pulley''s "track." Use the included spacers to ensure the belt runs perfectly vertical. A misaligned belt creates excessive heat, wears out the pulley grooves prematurely, and can lead to a thrown belt at high RPMs, which is a leading cause of engine overheating in air-cooled VWs.

3. Finding True Top Dead Center (TDC)

Don''t assume the degree markings will be 100% accurate out of the box due to variations in crankshafts and woodruff keys. For the most accurate tuning, use a piston stop tool to find the physical Top Dead Center of the number one cylinder. Once TDC is confirmed, verify that the "0" mark on your new EMPI pulley aligns perfectly with your case split or timing pointer. If it''s off by a degree or two, mark the correction on the pulley. This ensures that when you set your timing at 30 degrees of total advance, you are getting exactly what you aimed for.
