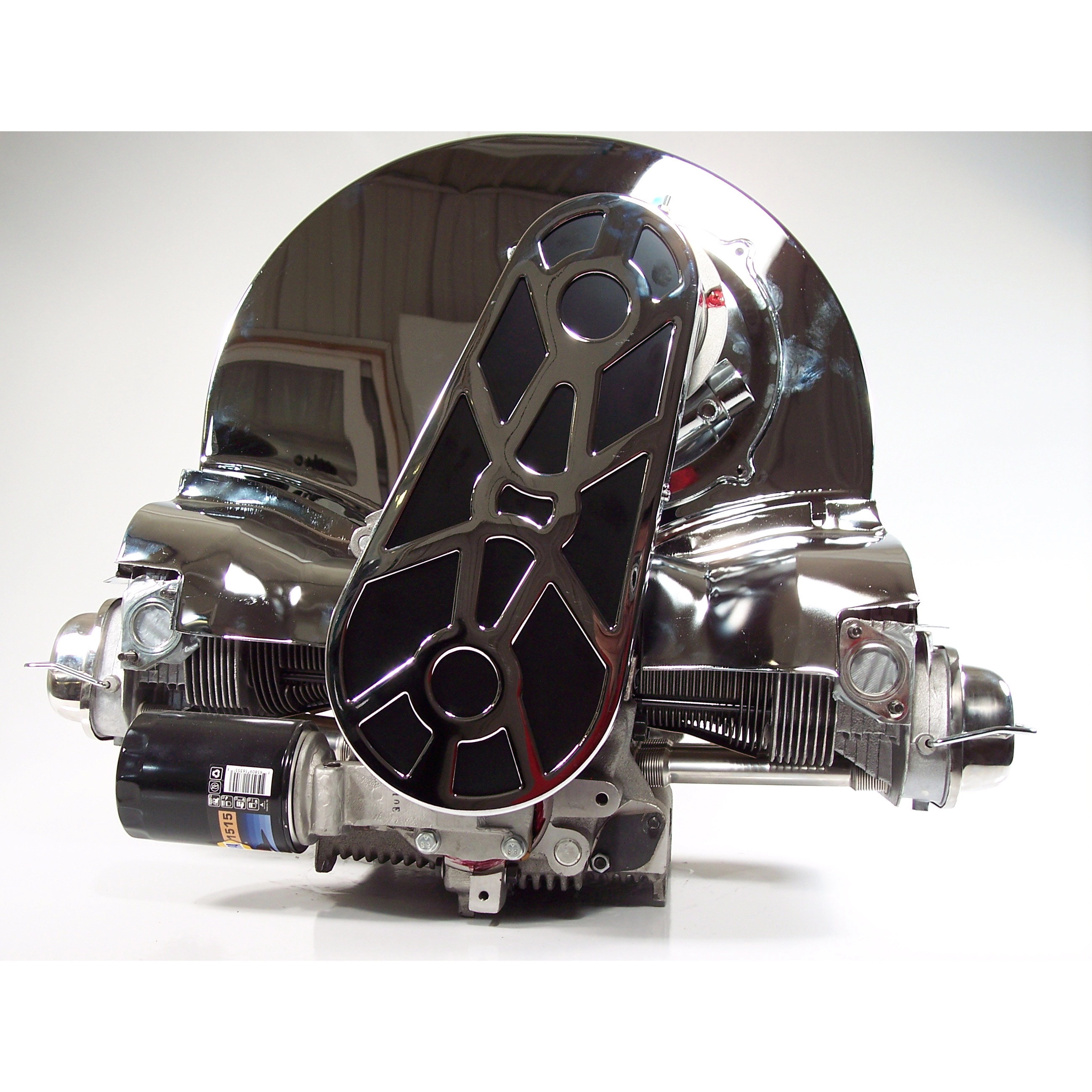

Pulley Guard, Mad Dog Harley Look, for Aircooled VW

OVERVIEW

Elevate the safety and style of your air-cooled powerplant with the Latest Rage Mad Dog Harley-Style Pulley Guard. Designed for the enthusiast who demands both rugged protection and a custom aesthetic, this pulley guard is inspired by the iconic look of billet Harley Davidson transmission side covers. When you are running an exposed engine in a sand rail, dune buggy, or a high-performance Baja Bug, the rotating crankshaft pulley and fan belt represent a significant safety hazard. This guard acts as a robust physical barrier, preventing accidental contact with fingers, loose clothing, or stray electrical wires while the engine is screaming at high RPMs. It is more than just a safety device; it is a centerpiece that adds a polished, aggressive mechanical look to the rear of your Volkswagen engine, bridging the gap between classic German engineering and American V-twin styling.

Constructed from high-quality materials to withstand the harsh vibrations and heat cycles of a Flat-4 engine, this pulley guard is a staple for any serious builder. The "Mad Dog" design features deep cooling fins and a heavy-duty mounting profile that ensures it stays secure even during aggressive off-road maneuvers. Whether you are navigating the dunes or showing off your engine bay at a local meet, this guard provides peace of mind without sacrificing the "open" look that air-cooled owners love. It bolts directly to the engine case using existing mounting points, making it an easy weekend upgrade that yields immediate results in both safety and visual impact. Don''t leave your belt drive exposed to the elements or your limbs exposed to the belt; wrap your pulley in the protection it deserves with this premium Latest Rage component.

FITMENT

This pulley guard is designed for universal fitment on Type 1 air-cooled Volkswagen engines with standard upright cooling systems. It is commonly used on the following models and applications:

• Volkswagen Beetle: 1946 through 1977 (Standard and Super Beetle).
• Volkswagen Karmann Ghia: 1956 through 1974.
• Volkswagen Thing (Type 181): 1973 through 1974.
• Volkswagen Bus/Transporter: 1950 through 1971 (Models equipped with Type 1 upright engines).
• Custom Applications: Ideal for Sand Rails, Dune Buggies, Manx-style bodies, and Baja Bugs with exposed engine cages.
• Engine Compatibility: Fits 1200cc, 1300cc, 1500cc, and 1600cc based engines (single or dual port).

SPECS

The Latest Rage AC119593 Pulley Guard is engineered to meet the rigorous demands of high-performance VW engines. Technical specifications include:

• Brand: Latest Rage.
• Part Number: AC119593.
• Style: Mad Dog (Harley Davidson Transmission Cover Look).
• Material: Heavy-duty cast aluminum with a polished finish.
• Mounting Hardware: Designed to mount to the standard VW engine case studs.
• Weight: Approximately 2.85 lbs for added durability and vibration resistance.
• Pulley Clearance: Compatible with most standard 5.75-inch and 6.75-inch diameter crankshaft pulleys.
• Finish: High-luster polish for a show-quality appearance.

PRO TIPS

1. Verify Belt Clearance Before Final Torque

When installing your Mad Dog Pulley Guard, always rotate the engine by hand (using a 19mm wrench on the generator/alternator nut) to ensure there is no contact between the fan belt and the inner edges of the guard. Depending on your specific brand of pulley or belt thickness, you may need to add a small shim or spacer behind the guard mounting points to provide adequate clearance. Maintaining at least a 1/8-inch gap is essential to prevent the belt from fraying or the guard from overheating due to friction.

2. Use High-Quality Hardware and Thread Locker

Air-cooled VW engines are notorious for high-frequency vibrations that can back out even the tightest bolts over time. When mounting this guard to your engine case, we highly recommend using stainless steel studs or bolts and applying a medium-strength (blue) thread-locking compound. This ensures that your guard remains rock-solid while you are bouncing through the whoops in the desert or cruising at highway speeds. Check the tightness of the mounting hardware during your regular oil change intervals.

3. Maintain the Show-Quality Luster

Since this guard is made from cast aluminum with a polished finish, it can oxidize over time when exposed to salt air, moisture, or road grime. To keep that "Harley Look" shining bright, use a high-quality aluminum polish and a microfiber cloth once a month. If you are running a sand rail or off-road buggy, cleaning the guard immediately after a trip will prevent pitted surfaces and keep the engine bay looking professional. A quick coat of spray wax can also help shed dust and oil during your next outing.
