Carb Adapter, 30mm Carb To Fit 34mm Intake

OVERVIEW

When you''re working on a vintage air-cooled engine, parts compatibility can often feel like a puzzle, especially when mixing and matching components from different eras. The IAP Carburetor Adapter is the definitive solution for Volkswagen enthusiasts who need to bridge the gap between a 30mm carburetor and a larger 34mm intake manifold. This common scenario occurs when a builder prefers the simplicity or specific performance characteristics of a 30 PICT series carburetor but is utilizing a later-model 1600cc dual-port intake manifold. Without this precision-engineered adapter, the bolt patterns and bore diameters simply won''t align, leading to catastrophic vacuum leaks or an impossible installation. By using this adapter, you ensure a rock-solid, airtight seal that maintains the structural integrity of your fuel delivery system while allowing for custom configuration of your induction setup.

Crafted from high-quality cast aluminum, this adapter is designed to withstand the heat cycles and vibration inherent in the VW engine bay. It comes as a complete kit, including both the top and bottom gaskets, which is critical because reusing old gaskets is the fastest way to invite rough idling and lean-running conditions. The transition from the 30mm carb base to the 34mm intake flange is smoothed to minimize turbulence, ensuring that your air-fuel mixture enters the manifold with as much velocity as possible. Whether you''re finishing a budget-friendly rebuild or setting up a specific vintage-style runner on a modern long block, this adapter provides the professional-grade fitment that Appletree Auto customers expect. Don''t let mismatched hardware stall your project; this adapter is the "missing link" for your Type 1 or Type 2 upright engine.

FITMENT

• Volkswagen Beetle: 1971-1974 (Dual Port 1600cc Applications)
• Volkswagen Super Beetle: 1971-1974 (Dual Port 1600cc Applications)
• Volkswagen Karmann Ghia: 1971-1974 (Dual Port 1600cc Applications)
• Volkswagen Thing (Type 181): 1973-1974
• Custom Applications: Any air-cooled VW engine utilizing a 34mm flange intake manifold (standard on 1600cc Dual Port) when mounting a 30mm or 31mm Solex-style carburetor.

SPECS

• Part Number: 113-129-034
• Material: Heavy-duty Cast Aluminum
• Carburetor Side Diameter: 30mm
• Intake Manifold Side Diameter: 34mm

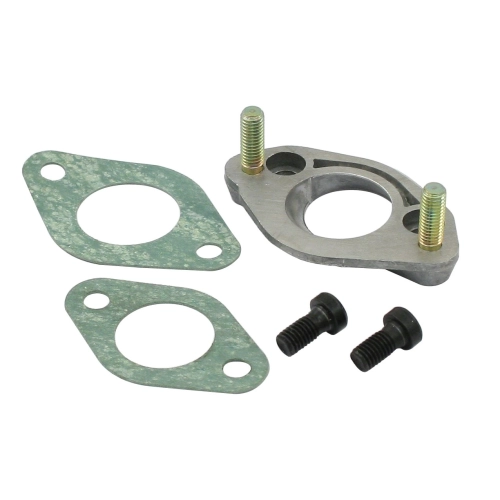

• Package Includes: (1) Aluminum Adapter Plate, (1) 30mm Base Gasket, (1) 34mm Base Gasket
• Installation Style: Bolt-on conversion
• Weight: 0.28 lbs
• Finish: Natural Machined Aluminum

PRO TIPS

1. Check for True Flatness Before Installation

Even though this is a high-quality casting, it''s always a best practice in the air-cooled world to check your mating surfaces for "true." Before you bolt everything down, lay the adapter on a piece of glass or a machinist''s plate with a fine-grit sandpaper (around 400 grit) and lightly move it in a figure-eight pattern. This ensures the surface is perfectly flat. Vacuum leaks at the base of the carburetor are the number one cause of "mystery" tuning issues, and taking two minutes to prep the surface will save you hours of troubleshooting later. If the surface isn''t flat, the gaskets won''t be able to do their job, no matter how hard you tighten the nuts.

2. Mind Your Stud Length and Clearance

When adding an adapter plate, you are increasing the total height of the carburetor assembly. In some instances, your original intake manifold studs might be a bit short once you add the thickness of the plate and the extra gasket. Always ensure you have full thread engagement on your mounting nuts. Conversely, make sure the carburetor linkage and the air cleaner assembly still have enough clearance under the decklid or engine tin. For Beetle owners, this is rarely an issue, but for those with custom engine heights or tight Ghia engine bays, it''s something you should verify during the "mock-up" phase of your build.

3. Adjust Your Jetting for the New Airflow Profile

Installing a 30mm carburetor on a 34mm intake changes the "signal" that the engine pulls through the carb. Since the intake manifold is larger than the carb throat, the air velocity can change slightly compared to a stock 1300cc/1500cc single-port setup. After installation, don''t assume your carb is "plug and play." Start by setting your idle mixture and volume control screws to the baseline settings, then check your spark plugs after a short drive. You may find that you need to go up one size on the main jet or adjust the pilot jet to compensate for the increased volume of the dual-port intake runners to ensure you aren''t running too lean at cruising speeds.
