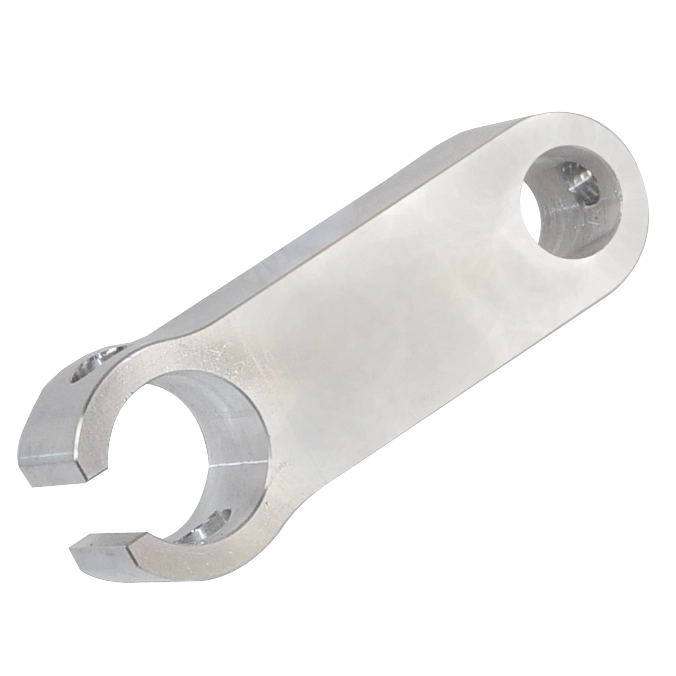

Bug To Bus Shift Coupler, for Bus Trans In Beetle

OVERVIEW

Upgrading your air-cooled Volkswagen Beetle to a Type 2 Bus transaxle is a legendary modification for those seeking a bulletproof drivetrain capable of handling high-horsepower engines or the brutal terrain of off-road desert racing. However, this swap presents a notorious geometry challenge: the nose cone of a 002 or 091 Bus transmission sits significantly higher than the stock Type 1 Beetle transaxle. This vertical discrepancy means your factory shift rod will no longer align with the transmission input. The EMPI Bug to Bus Shift Coupler is the precision-engineered solution designed specifically to bridge this gap, allowing for a seamless connection between your Beetle''s shift linkage and the rugged Bus transaxle nose cone without the need for crude, makeshift fabrication. By utilizing this specialized adapter, you ensure that your gear selection remains crisp, positive, and reliable, even when pushing your vehicle to its absolute limits.

Crafted from high-grade aluminum, this coupler is built to withstand the rigorous vibrations and torque stresses inherent in high-performance VW builds. It is designed to adapt the standard Type 1 shift rod end to the larger diameter and offset requirements of the Bus-style shift input. Whether you are building a dedicated sand rail, a rugged Baja Bug, or a high-torque street sleeper, this coupler eliminates the guesswork and frustration of custom linkage alignment. The lightweight yet robust construction ensures that you aren''t adding unnecessary reciprocating mass to your shift assembly, preserving that tactile "click-click" feel that every VW enthusiast demands. Don''t let a minor alignment issue stall your project; this coupler provides the professional-grade fit and finish required for a world-class transmission conversion.

FITMENT

This shift coupler is designed for Type 1 vehicles being converted to use Type 2 Bus transaxles. It is compatible with the following models and configurations:

• Volkswagen Beetle: 1950 through 1977 (Standard) and 1971 through 1979 (Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961 through 1973
• Compatible Transmissions: 002 (3-rib and 5-rib) and 091 (6-rib) Bus transaxles
• Custom Applications: Ideal for Sand Rails, Dune Buggies, and Baja Bugs utilizing a Type 1 chassis with a Bus gearbox swap

SPECS

Detailed technical specifications for the EMPI Bug to Bus Shift Coupler:

• Material: High-strength CNC-machined aluminum alloy
• Finish: Natural machined finish for maximum durability and corrosion resistance
• Application: Adapts Beetle shift rod to Bus nose cone input
• Quantity: Sold individually
• Installation Hardware: Designed to accept standard set-screws and safety wire/pins
• Weight: Approximately 0.25 lbs for lightweight performance
• Part Number: AC710003 (EMPI 16-2508-0)
• Configuration: Offset design to compensate for height differences in transaxle swaps

PRO TIPS

1. Prioritize Shift Rod Bushing Health

Before installing your new Bug to Bus coupler, I cannot stress enough the importance of inspecting your shift rod bushing located inside the frame head. A worn, cracked, or missing bushing will cause excessive "slop" in your shifter, making it difficult to find gears regardless of how well the coupler is aligned. Since you already have the shift rod disconnected at the rear to install this adapter, it is the perfect time to slide the rod forward and replace that bushing with a high-quality urethane version. This ensures that the mechanical precision of the EMPI coupler isn''t wasted on a loose, vibrating shift rod.

2. Use Blue Threadlocker and Safety Wire

The shift coupler is a high-vibration area, and the last thing you want is for a set screw to back out while you''re miles away from civilization or in the middle of a drag pass. When securing the coupler to the shift rod and the transmission selector shaft, always apply a drop of medium-strength (blue) threadlocker to the set screws. Furthermore, ensure that you use the proper safety wire or a cotter pin if your hardware is drilled for it. This redundant safety measure is standard practice in off-road racing and will prevent a "lost gear" scenario caused by mechanical loosening.

3. Fine-Tune Your Shifter Base Alignment

When swapping to a Bus transaxle, the entire geometry of the shifting plane changes. After installing the coupler, you may find that the shifter in the cabin needs a slight adjustment to achieve perfect engagement of all four gears and reverse. Loosen the two bolts holding your shifter base to the tunnel and move the base in small increments (1/16th of an inch at a time). Test the shift pattern through all gears with the clutch depressed. Often, a slight tilt or fore/aft movement of the shifter base, combined with the EMPI adapter, is the secret to getting that perfect, factory-smooth shifting feel in a non-factory transmission setup.
