Black Dress Up Kit, for Aircooled Beetle

OVERVIEW

Transform your engine bay from a greasy relic of the past into a high-performance showpiece with the IAP Black Dress Up Kit. As any seasoned VW enthusiast knows, the engine is the heart of your machine, but it doesn''t have to look like a utilitarian workhorse. This comprehensive kit is designed for those who prefer the sleek, aggressive aesthetic of a "blacked-out" engine bay over the traditional flash of excessive chrome. By combining high-quality powder-coated black finishes with strategic stainless and chrome accents, this kit provides a professional, unified look that ties your entire build together. Whether you are finishing a ground-up restoration or simply want to give your daily driver a weekend makeover, this kit offers the perfect balance of stealth and style that demands respect at every local car meet or VW show.

Beyond the undeniable visual upgrade, this kit provides functional benefits that every air-cooled owner will appreciate. The included degree pulley is a crucial tool for any mechanic, featuring high-visibility black numbers that make setting your timing and finding Top Dead Center (TDC) significantly easier than with a stock, unmarked pulley. The kit is engineered to replace high-wear or unsightly components like old spark plug wires and weathered distributor caps with fresh, reliable parts. By streamlining your engine''s appearance with matching black components and a stainless coil cover, you hide the clutter and highlight the engineering of the iconic Type 1 flat-four. This isn''t just a collection of parts; it''s a complete aesthetic overhaul that saves you the time and headache of sourcing individual components that might not match in finish or fitment.

FITMENT

This kit is designed for the Volkswagen Type 1 air-cooled engine platform. It is compatible with the following models and years:

• Volkswagen Beetle: 1946 through 1977 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Bus / Transporter (Type 2): 1950 through 1971 (Models equipped with Type 1 upright engines)
• Custom Applications: Ideal for Dune Buggies, Sand Rails, Trikes, and Kit Cars utilizing a 1200cc, 1300cc, 1500cc, or 1600cc based air-cooled engine.

SPECS

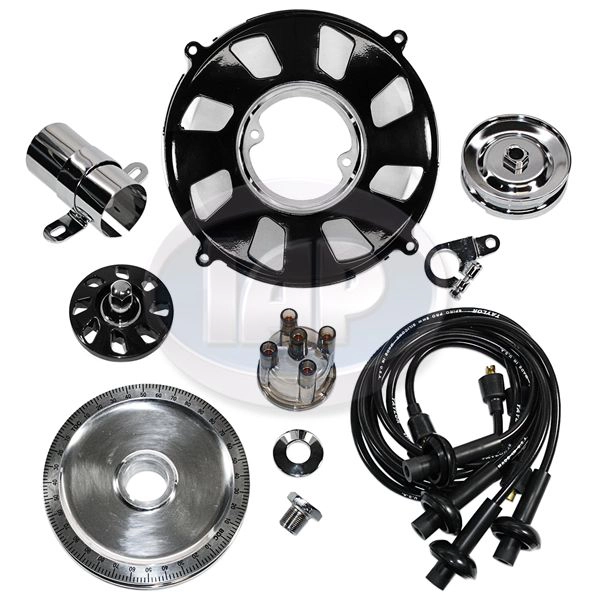

Every component in the AC903053 kit is selected for its durability and precision fit. The technical specifications include:

• Degree Pulley: Standard 6.75-inch diameter aluminum construction with precision-engraved timing marks and black-filled numbering.
• Upper Pulley: High-luster chrome finish, designed for standard 12-volt generator or alternator shafts.
• Spark Plug Wires: 7mm high-insulation black silicone wires with factory-style boots for a secure, moisture-resistant connection.
• Distributor Cap: "Black Clear" transparent smoke finish, allowing you to see the internal spark movement while maintaining the dark aesthetic.
• Backing Plate Cover: Stamped steel with a durable black finish to protect the engine case from road debris and enhance the pulley backdrop.
• Coil Cover: Polished stainless steel for heat resistance and a bright contrast against the black components.
• Hardware: Includes a heavy-duty chrome pulley bolt and a reinforced distributor clamp for secure installation.
• Pulley Cover: Upper pulley guard finished in black to match the overall kit theme.

PRO TIPS

1. Master Your Timing with the Degree Pulley

When installing the included degree pulley, don''t just bolt it on and assume your timing is set. Always verify Top Dead Center (TDC) using a piston stop tool before finalizing your marks. Because this pulley features clear, engraved numbers, it allows you to set your total advance much more accurately than the single notch found on stock pulleys. When you are timing your engine, remember that most air-cooled VWs perform best with a total advance between 28 and 32 degrees at 3,000 RPM (depending on your distributor type). Having these numbers clearly visible on the pulley makes this process safer and significantly more precise, ensuring your engine runs cooler and lasts longer.

2. Proper Spark Plug Wire Routing is Key

While these black silicone wires look fantastic, they must be routed correctly to prevent engine interference or heat damage. Never let your spark plug wires rest directly against the cylinder head fins or the exhaust manifold. Use the factory-style wire looms or plastic separators to keep the wires organized and away from moving parts like the fan belt. Ensuring a clean "air gap" between the wires and the metal components of the engine will prevent "arcing" (where the spark jumps from the wire to the engine case), which can cause a frustrating misfire that is often hard to diagnose. A clean wire path also makes your engine bay look much more professional and "race-ready."

3. Adjusting Belt Tension with Shims

When you install the new upper chrome pulley included in this kit, you must pay close attention to the belt tension shims. The tension of your fan belt is adjusted by moving shims between the two halves of the upper pulley. If the belt is too tight, you will put excessive side-load on your generator or alternator bearings, leading to premature failure. If it is too loose, the belt will slip, causing your engine to overheat. A good rule of thumb is that you should be able to push the belt down about 1/2 inch at its longest point with moderate thumb pressure. Always keep your extra shims on the outside of the pulley under the nut so you don''t lose them; you will need them as the belt stretches over time.
