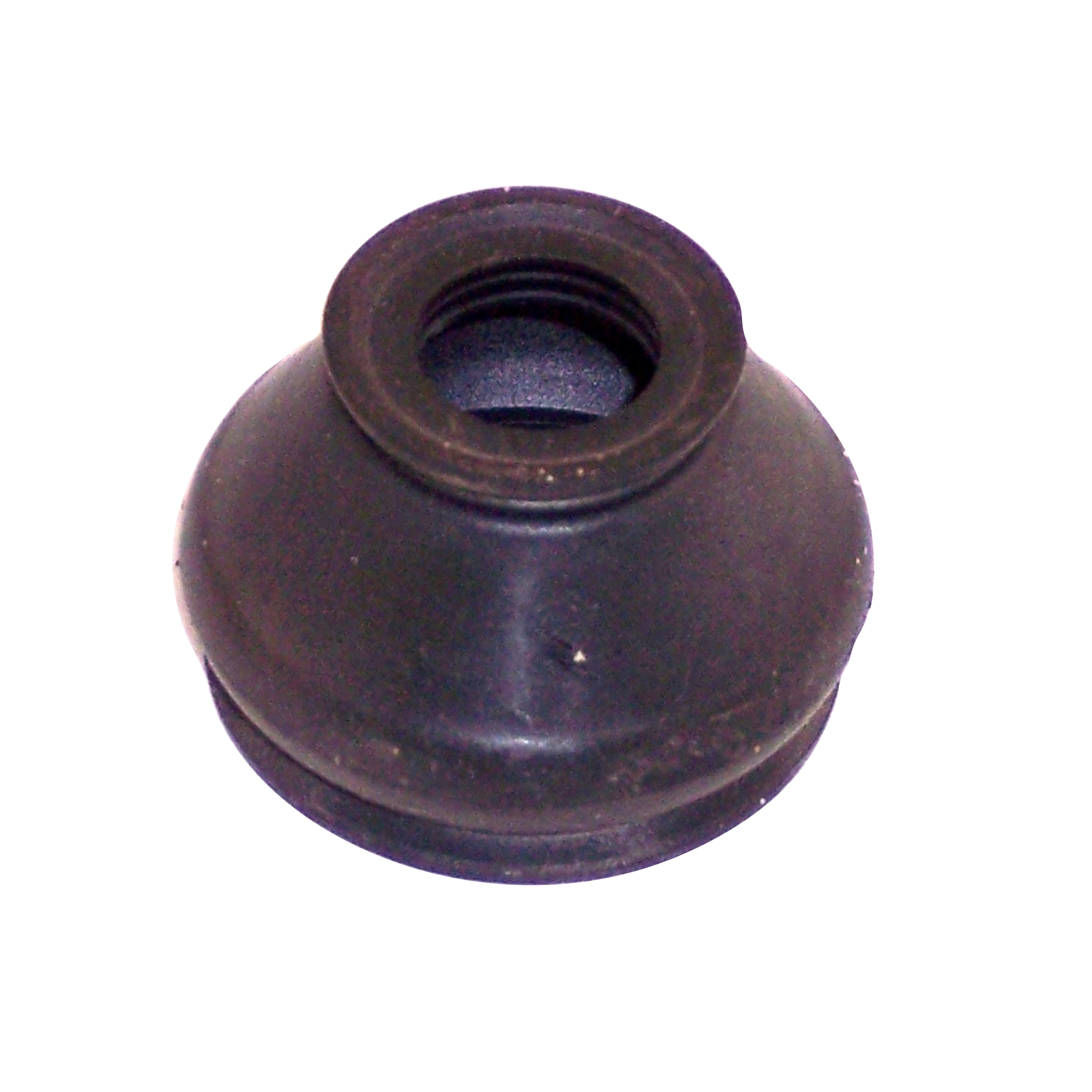

Ball Joint Dust Boot, for Beetle & Ghia 66-77, Each

OVERVIEW

Protecting your suspension components is critical to maintaining the legendary handling and safety of your classic air-cooled Volkswagen. This high-quality replacement ball joint dust boot is designed specifically to seal the grease inside your ball joints while keeping destructive road contaminants out. Over time, original rubber boots become brittle, crack, and eventually tear due to constant heat cycles and exposure to road salt, oil, and ozone. Once a boot fails, dirt and moisture enter the precision-machined socket, leading to accelerated wear, "death wobble," and eventually a dangerous mechanical failure. Replacing a torn boot immediately is a cost-effective way to extend the life of your ball joints and avoid a much more labor-intensive and expensive suspension overhaul down the road.

Crafted from a durable, oil-resistant rubber compound, these boots are engineered to provide a tight, secure seal even under extreme suspension travel. While these boots may appear slightly smaller than the original ones when held in your hand, they are designed with the correct elasticity to stretch over a standard VW ball joint, ensuring a "snug-fit" seal that won''t slip or gap during hard cornering. Whether you are performing a routine inspection, refreshing your front beam, or building a rugged off-road dune buggy, these boots are the essential barrier between your moving parts and the elements. Sold individually, they allow you to replace exactly what you need to keep your Beetle or Ghia tracking straight and smooth on the open road.

FITMENT

This ball joint dust boot is designed for the following Volkswagen models equipped with a ball joint front end:

• Volkswagen Type 1 Beetle (Standard): 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
• Volkswagen Karmann Ghia: 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
• VW-Based Dune Buggies & Sand Rails: Any custom build utilizing a 1966-1977 Type 1 ball joint front beam.
• Note: Not compatible with King and Link Pin front ends (pre-1966) or Super Beetle (1302/1303) MacPherson strut suspensions.

SPECS

• Part Number: 131-405-375
• Material: High-density, oil-resistant black rubber compound.
• Small Opening Diameter: Just over 1/2 inch (approximately 13mm-14mm) for a tight fit on the stud.
• Large Opening Diameter: Just under 1 1/4 inches (approximately 31mm-32mm) to seat firmly on the ball joint body.
• Quantity: Sold individually (Each).
• Application: Upper or lower ball joints on Type 1 ball joint beams.
• Compression/Expansion: High-flex accordion design to accommodate full suspension articulation.

PRO TIPS

1. Clean Before You Seal

When you discover a torn boot, it is highly likely that some road grit has already found its way into the grease. Before installing the new boot, use a clean rag to wipe away as much of the old, contaminated grease as possible from the ball joint stud and the top of the socket. Once clean, apply a generous amount of high-quality lithium-based or molybdenum disulfide (moly) grease to the joint. This ensures that the new boot isn''t just sealing in "grinding paste" that will destroy the joint from the inside out. Always check for excessive play in the joint before installing the new boot; if the joint moves freely with no resistance, it may be time to replace the entire ball joint instead of just the rubber.

2. The Heat and Lubrication Trick

Because these boots are designed to fit very tightly to prevent leaks, they can sometimes be stubborn to slide over the "bulb" of the ball joint stud. To make installation significantly easier, soak the new rubber boot in a cup of very warm (not boiling) water for a few minutes. This softens the rubber and increases its elasticity. Before sliding it on, apply a very thin film of fresh grease or a rubber-safe lubricant to the inner lip of the boot. This allows it to glide over the widest part of the stud without tearing or over-stretching the material beyond its limits.

3. Verify the Seating and Retaining Rings

After the boot is in place, ensure the large end is seated completely flush against the shoulder of the ball joint body. If your original ball joint used small wire retaining clips or "snap rings" to hold the boot in place, try to reuse them or use a heavy-duty zip tie or safety wire to ensure the boot remains seated during high-speed travel and suspension cycling. A boot that slides up the stud during a bump will allow dirt in immediately. Double-check your work by turning the steering wheel from lock to lock; if the boot binds or pinches, readjust its position on the stud to allow for the proper range of motion.
