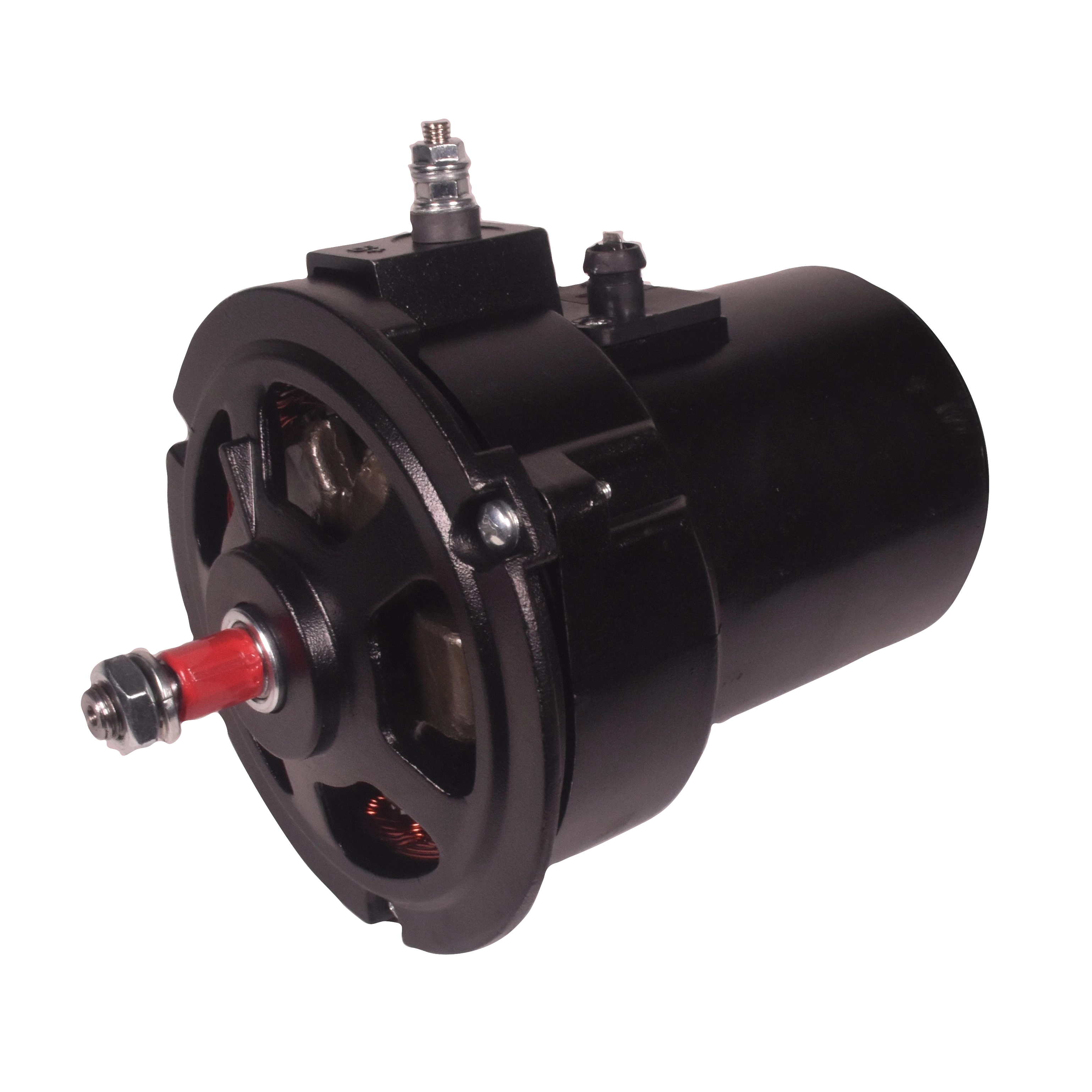

Alternator, 60 Amp, Black for Type 1 VW

OVERVIEW

Upgrade your air-cooled engine''s charging system with the IAP 60 Amp Black Alternator, a premium solution designed for those who demand both reliability and style. This isn''t just a standard replacement part; it is a high-output powerhouse that provides a significant boost over the original 30-amp or 38-amp generators found in vintage Volkswagens. Whether you are running modern halogen headlights, a high-fidelity sound system, or electronic ignition, this 60-amp unit ensures your battery stays topped off even at idle. The sleek black finish provides a custom, "stealth" look that complements black engine tins and dress-up kits, making it a favorite for show cars, daily drivers, and rugged off-road dune buggies alike.

Engineered for a seamless transition, this alternator features a built-in internal regulator, which eliminates the need for the bulky external voltage regulator found under the rear seat of many classic Beetles. This simplifies your engine bay wiring significantly, reducing potential points of failure and creating a much cleaner aesthetic. Built with all-new componentsnever remanufacturedthis unit is designed to withstand the high-heat environment of an air-cooled engine house. If you are tired of dimming headlights and the constant maintenance of an aging generator system, this 12-volt alternator is the ultimate performance upgrade to bring your Type 1 charging system into the modern era.

FITMENT

This alternator is designed for Type 1 based air-cooled engines. Please note that if you are converting from a generator, an alternator-specific stand and 3-piece backing plate kit are required for installation.

• Volkswagen Beetle: 1967-1977 (Standard 12V models)
• Volkswagen Beetle: 1950-1966 (When converted to 12V system)
• Volkswagen Super Beetle: 1971-1979
• Volkswagen Karmann Ghia: 1967-1974
• Volkswagen Karmann Ghia: 1956-1966 (When converted to 12V system)
• Volkswagen Thing (Type 181): 1973-1974
• Volkswagen Bus / Transporter: 1963-1971 (With Type 1 1500cc or 1600cc upright engine)
• Custom Applications: Sand Rails, Dune Buggies, and Trikes utilizing VW Type 1 engines.

SPECS

Our technical specifications ensure you have the exact data needed for your build or restoration project.

• Amperage Output: 60 Amps (High Output)
• Voltage: 12 Volts
• Regulator Type: Internal (Built-in)
• Wiring Hookup: 2-Wire configuration (B+ and D+ / Warning light)
• Finish: Semi-Gloss Black Power Coat
• Condition: 100% Brand New (No core charge required)
• Weight: 12.3 lbs
• Pulley Nut Size: Standard VW 21mm / 19mm compatibility
• Material: Heavy-duty aluminum housing for superior heat dissipation

PRO TIPS

1. Verify Your Stand and Backing Plate

If you are upgrading from an original generator to this 60-amp alternator, you MUST change your generator stand to an alternator-specific stand. A generator is smaller in diameter than an alternator; therefore, the alternator will not sit correctly on a generator stand. Additionally, you will need the correct 3-piece alternator backing plate kit to ensure the cooling fan is properly spaced within the fan shroud. Failure to use the correct stand and plates can lead to belt misalignment and catastrophic cooling fan failure.

2. Master the Two-Wire Wiring Conversion

When installing this internally regulated unit, you will no longer need your old external regulator. The thick wire (usually Red) from your starter/battery connects to the large B+ post on the alternator. The smaller wire (usually Green or Blue) that goes to your dashboard charging light connects to the smaller D+ spade terminal. It is critical that your dash bulb is functional, as the charging circuit relies on that bulb to "excite" the alternator into charging. If the bulb is burnt out, your alternator will not charge the battery!

3. Proper Belt Tension and Alignment

Air-cooled engines rely entirely on the fan belt to spin the cooling fan. If the belt is too loose, the engine will overheat; if it is too tight, it will put excessive side-load on the alternator bearings, leading to premature failure. Always check that the pulleys are perfectly aligned. Use shims between the two halves of the alternator pulley to adjust tension. A properly tensioned belt should have about 1/2 inch of deflection when pressed firmly with your thumb at the midpoint between the top and bottom pulleys.
