Weber IDF Main Jet 170

Overview: Precision Tuning for Your High-Performance Air-Cooled Engine

When it comes to extracting every ounce of horsepower from your air-cooled Volkswagen, the magic happens within the venturis of your Weber IDF carburetors. The EMPI Weber IDF Main Jet 170 is a critical component for any serious engine builder or weekend tuner looking to dial in their air-fuel ratios for peak performance. In the world of air-cooled engines, where cooling is largely dependent on proper fueling, a jet that is too lean can lead to catastrophic overheating, while one that is too rich will foul plugs and kill throttle response. This precision-machined brass main jet is designed to provide consistent fuel flow through the main circuit, ensuring that your engine has the fuel it needs during high-load and wide-open-throttle conditions. Whether you are running a set of dual 40, 44, or 48 IDFs, having the correct main jet size is the difference between a sluggish cruiser and a high-revving street machine.

The 170 size represents a 1.70mm orifice, making it a popular choice for larger displacement engines or those running aggressive camshaft profiles that demand a higher volume of fuel at the top end. These jets are manufactured to exacting tolerances, ensuring that when you swap a jet in one barrel, it matches the flow characteristics of its counterpart perfectly. This consistency is vital for balancing dual-carburetor setups where symmetry between cylinders is the key to a smooth idle and a linear power band. At Appletree Automotive, we understand that "close enough" isn''t good enough for your VW engine. That''s why we carry genuine EMPI components that are fully compatible with original Italian Webers, Spanish Webers, and EMPI HPMX series carburetors. Investing in a variety of jet sizes allows you to tune for changes in altitude, ambient temperature, and engine modifications, giving you total control over your engine''s volumetric efficiency.

Fitment and Application

The Weber IDF Main Jet 170 is designed for use in a wide range of vehicles equipped with Weber IDF or EMPI HPMX carburetors. Common applications include:

• Volkswagen Beetle/Bug: All years equipped with dual IDF or HPMX carburetors.
• Volkswagen Karmann Ghia: All years using performance dual-carb setups.
• Volkswagen Bus/Type 2: 1950-1979 models with upgraded performance engines.
• Volkswagen Type 3 (Fastback, Squareback, Notchback): Performance builds with IDF setups.
• Volkswagen Thing (Type 181): Off-road and street-tuned versions.
• Porsche 914: 4-cylinder models converted to Weber IDF carburation.
• Custom Builds: Dune Buggies, Sand Rails, Bajas, and Kit Cars using VW-based air-cooled powerplants.

Technical Specifications and Materials

This main jet is engineered to meet the rigorous demands of high-performance automotive environments. Below are the technical details:

• Part Number: 73401.170
• Jet Orifice Size: 170 (equivalent to 1.70mm diameter).
• Material: High-quality, corrosion-resistant precision-machined brass.
• Carburetor Compatibility: Fits Weber IDF (40, 44, 48) and EMPI HPMX series.

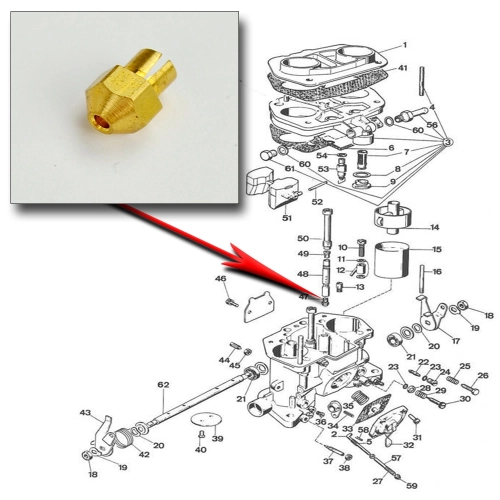

• Installation Location: Sits at the bottom of the emulsion tube assembly within the carburetor body.
• Function: Controls fuel flow during the main circuit (mid-to-high RPM range).
• Quantity: Sold individually (four are typically required for a dual 2-barrel setup).

Pro Tips from the Appletree Specialist

Tip 1: The Golden Rule of Tuning Sequence

One of the most common mistakes tuners make is trying to fix a mid-range stumble by changing the main jets before the idle circuit is perfected. Always remember that the idle jet handles the engine from 0 to approximately 2,500-3,000 RPM. The main jet, like this 170, doesn''t fully take over until the air velocity through the venturi is high enough to pull fuel through the main circuit. If you have a flat spot or hesitation just as you step on the gas, check your idle jets and acceleration pump adjustment first. Once the car transitions smoothly, then you can use the 170 main jets to fine-tune your Wide Open Throttle (WOT) performance and top-end power.

Tip 2: Use the 4:1 Ratio as a Starting Point

When selecting your main jet and air correction jet combination, a general rule of thumb for the Weber IDF is the "4 to 1" ratio. Usually, your air correction jet should be about 50 to 60 points larger than your main jet. For example, if you are running this 170 main jet, a 220 or 230 air correction jet is an excellent starting point. A larger air correction jet will lean out the mixture at very high RPMs, while a smaller one will keep it richer. If your engine feels like it''s "falling over" at the very top of the gear, you might need to adjust this relationship to find the sweet spot for your specific cam and head flow.

Tip 3: Validate with Spark Plug Readings or Wideband O2

Never assume a jet size is correct just because it "feels" fast. To truly protect your air-cooled investment, you must verify the mixture. The old-school method is a "plug chop": run the car at high RPM in 3rd or 4th gear, quickly turn off the ignition and coast to a stop, then pull the plugs. You are looking for a light tan or "cardboard" color. However, for the modern builder, we highly recommend installing a Wideband O2 sensor and gauge. This allows you to see exactly what that 170 jet is doing in real-time. If you see ratios dipping into the 11s, you might be too rich; if you are seeing 14s or 15s at WOT, you are dangerously lean and need to step up your jet size immediately to prevent melting a piston.
