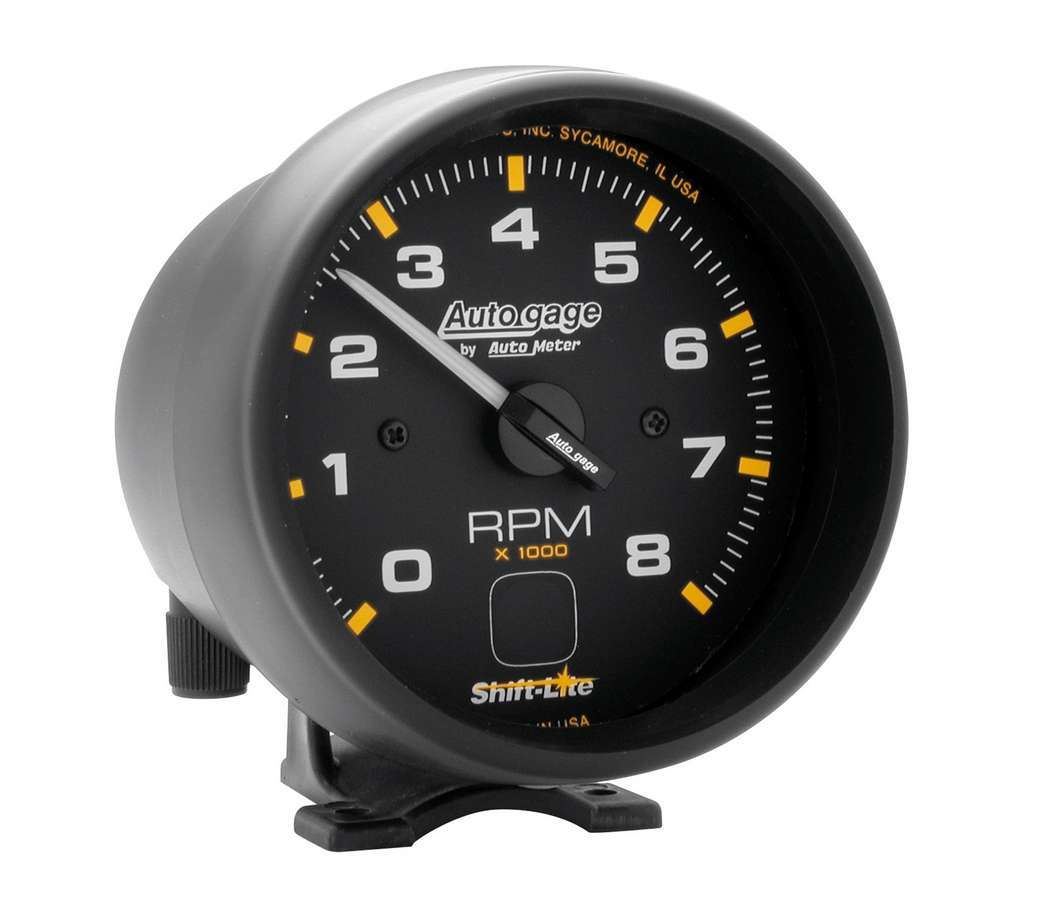

Tach W/ Shift Lite , 3 3/4

OVERVIEW

When you''re pushing your air-cooled flat-four to its limits, whether it''s on the drag strip or climbing a massive dune in your sand rail, knowing your exact RPM is the difference between a record-breaking run and a catastrophic engine failure. This AutoMeter 3-3/4 inch tachometer with an integrated shift light is the gold standard for enthusiasts who demand precision and durability in their cockpit. Designed to withstand the high-vibration environments typical of a Baja Bug or a performance-built Street Beetle, this gauge features AutoMeter''s legendary air-core movement, ensuring that the needle remains steady and responsive even when the terrain gets rough. The high-contrast display provides instant readability at a glance, allowing you to keep your focus on the road while staying perfectly tuned to your engine''s power band.

Integration and visibility are key in a custom VW interior, and the ATM2302 delivers with its versatile pedestal mount design. This allows you to secure the tachometer directly to the top of your dashboard or clamped to the steering column for that classic "competition" look without obstructing your primary line of sight. The built-in shift light is a game-changer for air-cooled pilots; it provides a bright, unmistakable visual cue the moment you reach your pre-set shift point, ensuring you stay in the meat of the torque curve without accidentally over-revving your expensive valvetrain. Compatible with 4, 6, and 8-cylinder engines and a wide array of ignition systemsfrom traditional points to modern 12V high-output electronic ignitionsthis tachometer is a robust upgrade that brings modern race technology to your vintage Volkswagen or custom off-road machine.

FITMENT

• Volkswagen Beetle: All years and models (Standard and Super Beetle).
• Volkswagen Karmann Ghia: All years.
• Volkswagen Bus / Type 2: Split-window and Bay-window models.
• Volkswagen Type 3: Squareback, Fastback, and Notchback.
• Dune Buggies: Manx-style, fiberglass bodies, and tube-chassis rails.
• Sand Rails: Ideal for high-vibration off-road environments.
• Baja Bugs: Perfect for modified desert racing applications.
• Universal Compatibility: Works with 4, 6, or 8-cylinder engines.

SPECS

• Product Model: ATM2302
• Face Diameter: 3-3/4 Inches (95.3mm)
• RPM Range: 0 - 8,000 RPM
• Mounting Style: Pedestal Mount (includes adjustable base and strap).
• Shift Light: Integrated On-Dial Shift-Lite.
• Ignition Compatibility: Works with points, electronic ignitions, and most 12V high-performance racing ignitions.
• Voltage: 12 Volt negative ground systems.
• Cylinder Selection: Selectable for 4, 6, or 8-cylinder engines via switches on the rear.
• Weight: Approximately 0.9 lbs.
• Movement: Precision Air-Core movement for maximum accuracy and needle stability.

PRO TIPS

Tip 1: Ensure a Solid Engine Ground

Air-cooled Volkswagens are notorious for grounding issues due to their painted chassis and rubber engine mounts. For the most accurate RPM signal, do not just ground the tachometer to the dashboard. We highly recommend running a dedicated ground wire from the tachometer directly to the engine block or the main transmission ground strap. This prevents "needle bounce" or erratic readings that often occur when the gauge is fighting for a clean signal through a rusty or painted body panel.

Tip 2: Optimal Pedestal Placement

When installing this 3-3/4 inch tachometer on a steering column, ensure you use a rubber shim between the mounting strap and the column. This not only protects your paint but also provides additional vibration dampening. If you prefer a dash-top mount, position the tachometer slightly to the right or left of your main line of sight so the shift light is in your peripheral vision. This allows you to react to the light instantly without having to look down away from the track or trail.

Tip 3: Ignition Signal Interference

If you are running a high-output CDI ignition system (like an MSD or Pertronix Digital box), you may occasionally experience "tach flutter." Because this AutoMeter tach is designed for high-performance 12V signals, it is usually very stable. However, if you encounter interference, ensure your tachometer signal wire is kept away from your spark plug wires. If the problem persists, you may need a Tach Adapter (AutoMeter 9117), which is specifically designed to clean up the signal from modern high-energy ignition boxes for vintage-style gauges.
