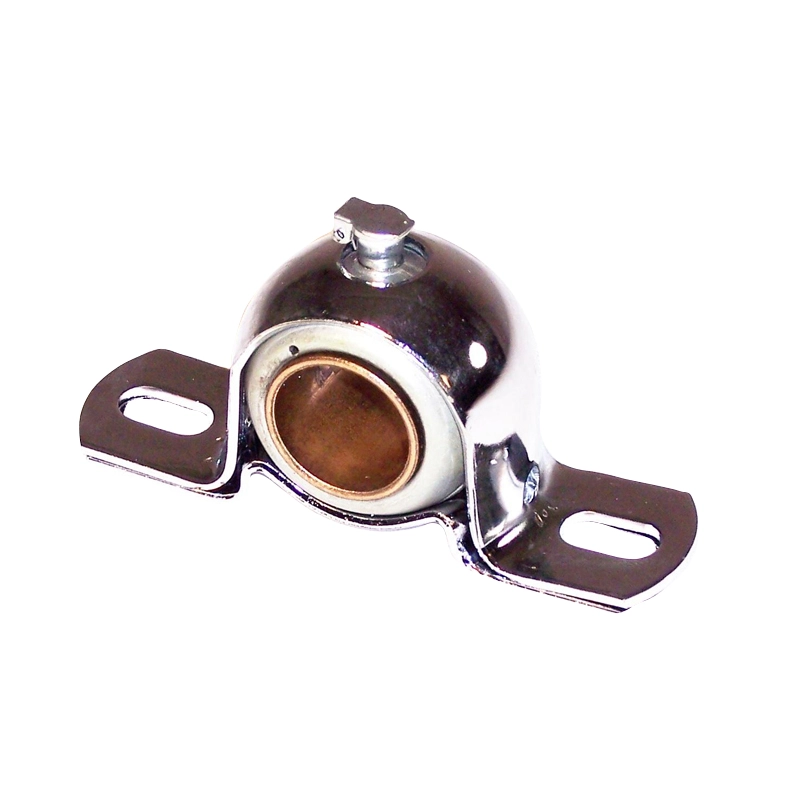

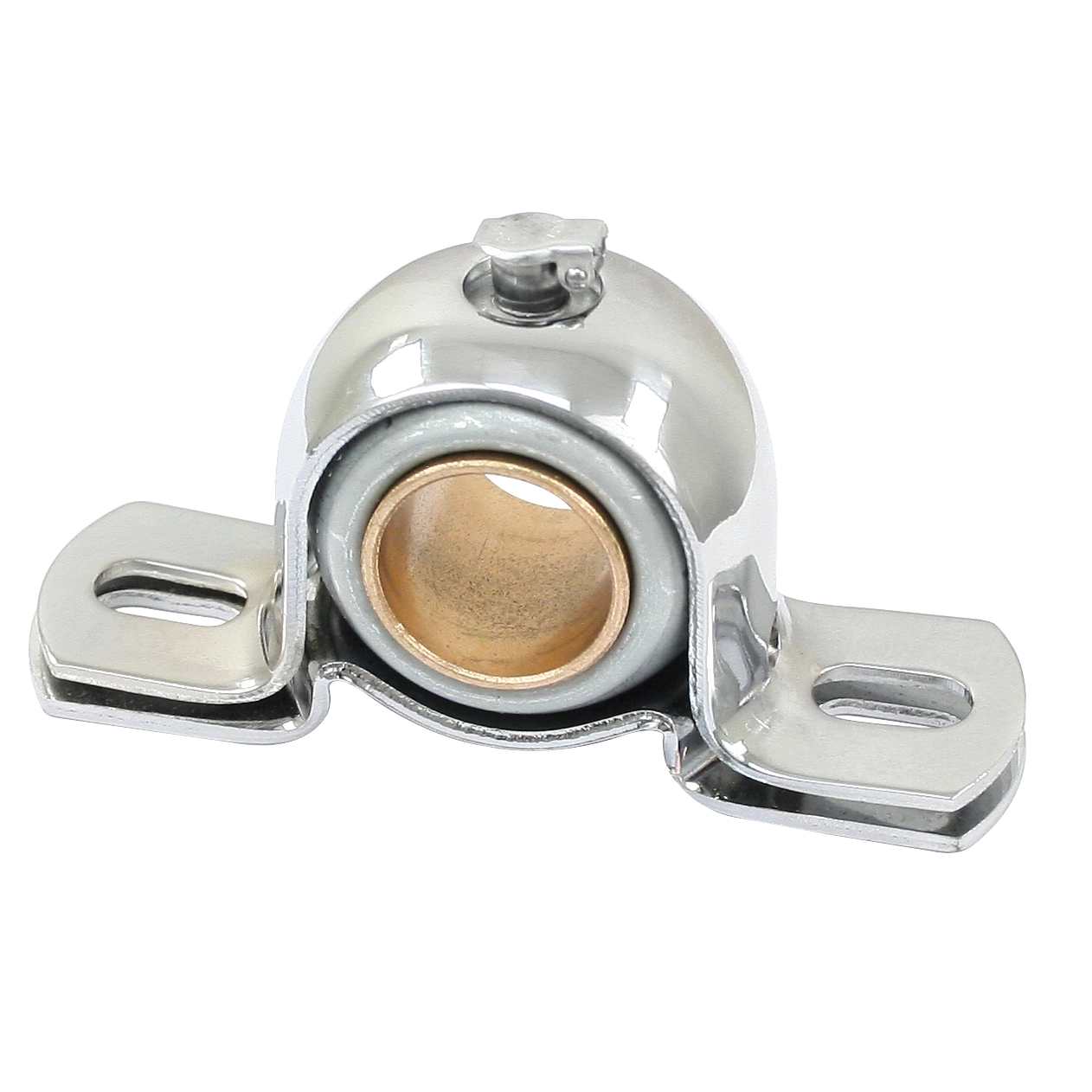

Steering Bushing, 7/8 Shaft, Bolt On Style, Chrome

Overview

When you''re carving through the dunes or navigating a tight trail, the last thing you want is slop in your steering wheel. This EMPI Chrome Steering Bushing is designed specifically for high-performance off-road applications where precision and reliability are paramount. Engineered to fit a 7/8-inch steering shaft, this pillow block style bushing provides a rock-solid mounting point that eliminates the vibration and "play" often found in older or poorly mounted steering setups. The bolt-on design allows for a clean, straightforward installation onto your windshield bar, dash support, or custom chassis rail, ensuring that your steering geometry remains consistent even under the harshest torsional loads. At Appletree Automotive, we understand that steering is a safety-critical system, and this bushing delivers the heavy-duty performance required for serious air-cooled enthusiasts.

Beyond its functional excellence, this steering bushing adds a significant level of "show-and-shine" to your cockpit. The high-quality chrome finish is polished to a mirror-like luster, making it an ideal choice for open-cockpit sand rails, show-quality dune buggies, and custom Baja Bugs where every component is on display. The durable housing protects the internal bearing surface, ensuring a smooth, low-friction rotation of the steering shaft for years to come. Whether you are building a brand-new tube chassis project or refreshing the steering column in a classic Meyers Manx clone, this EMPI bolt-on bushing offers the perfect blend of industrial-strength durability and custom aesthetic appeal. Don''t settle for a rusted or worn-out bracket when you can upgrade to a component that looks as good as it performs.

Fitment and Compatibility

This steering bushing is a universal-style component designed for custom steering configurations. While it is not a direct "plug-and-play" replacement for a stock Volkswagen Beetle steering column, it is the industry standard for the following applications:

• Custom Dune Buggies: Fits all fiberglass-bodied buggies utilizing a 7/8" aftermarket steering shaft.
• Sand Rails & Off-Road Projects: Ideal for tube-frame chassis where the steering column is mounted to a dash or windshield spreader bar.
• Baja Bugs: Perfect for modified Beetles that have transitioned to a simplified, racing-style steering column.
• Meyers Manx & Clones: Provides a secure mounting point for the upper steering shaft on traditional buggy builds.
• Universal 7/8" Shafts: Compatible with any steering system utilizing a standard 7/8-inch Outer Diameter (OD) shaft.

Technical Specifications

Detailed specifications for the EMPI AC425013 Steering Bushing:

• Shaft Diameter Compatibility: 7/8 Inch (0.875").
• Mounting Style: Bolt-On (Pillow Block design).
• Material: Heavy-duty cast alloy housing with high-quality chrome plating.
• Finish: Triple-process mirror chrome for maximum corrosion resistance and shine.
• Bushing Insert: High-density, low-friction internal bearing surface for smooth rotation.
• Mounting Holes: Two-bolt pattern designed for standard grade hardware.
• Weight: Approximately 0.46 lbs, offering a lightweight yet robust solution.
• Brand: EMPI (Manufacturer Part Number: AC425013 / 00-3176-0).

Master Specialist Pro Tips

Tip 1: Ensure Perfect Shaft Alignment

When installing a bolt-on pillow block bushing, it is absolutely critical that the bushing is perfectly aligned with the steering box or the lower universal joint. If the bushing is mounted at even a slight angle, it will create a "bind" in the steering shaft, leading to premature wear on the internal bushing material and a heavy, inconsistent feel at the steering wheel. I always recommend "tacking" your mounting tabs or loosely bolting the bushing in place first, then sliding the shaft through and rotating it 360 degrees. If you feel any resistance or rubbing at a specific point in the rotation, adjust the angle of the mounting bracket before final tightening. A smooth-spinning shaft is the hallmark of a professional build.

Tip 2: Use High-Quality Hardware and Locking Nuts

Steering components are subject to constant vibration, especially in off-road environments. Since this is a bolt-on style bushing, you should never use standard hardware-store Grade 2 bolts. I strictly recommend using Grade 5 or Grade 8 fasteners along with Nyloc nuts or split-lock washers. For the ultimate peace of mind, a small drop of blue (medium strength) thread-locker on the bolts will prevent the bushing from vibrating loose during a weekend of hard riding. Remember, if this bushing comes loose, you lose steering precision instantly; it''s worth the extra two dollars in high-grade hardware to ensure your safety and the longevity of your steering system.

Tip 3: Maintenance of the Chrome Finish

While the chrome finish on this EMPI bushing is designed to be durable, it is often exposed to the elements in open-air buggies. Dust, sand, and moisture can eventually dull the finish if left sitting. After a weekend at the dunes or a muddy trail ride, make sure to wipe down the bushing with a soft microfiber cloth. Avoid using abrasive cleaners that could scratch the chrome. If you notice the steering starting to feel a bit "dry," a tiny spray of dry-film lubricant (like graphite or silicone) inside the bushing area will keep it spinning freely without attracting the sand and grit that a traditional wet grease would. Keeping it clean not only looks better but prevents the grit from acting like sandpaper on your steering shaft.
