Small Od Chrome Lug Nuts

OVERVIEW

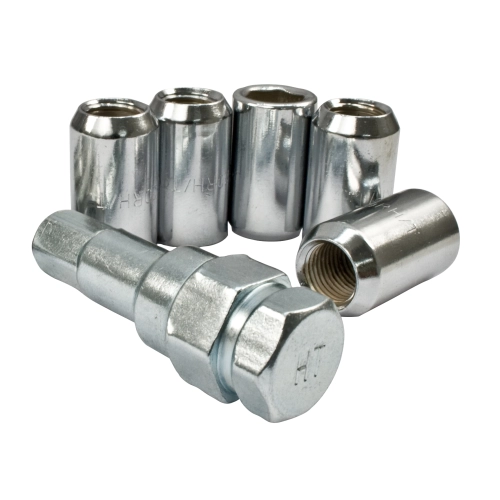

When you are finishing off a custom wheel installation on your classic air-cooled Volkswagen, the margin for error is razor-thin. Standard lug nuts often feature a wide hex head that simply cannot clear the narrow lug bores found on many modern aftermarket aluminum wheels. The EMPI Small OD Chrome Lug Nuts, frequently referred to in the industry as "tuner style" nuts, are specifically engineered to solve this clearance crisis. By utilizing a slim-profile spline drive design, these lug nuts allow for a seamless fit into recessed mounting holes without the risk of your socket wall gouging the finish of your expensive rims. Whether you are running classic 8-spoke wheels, Riviera styles, or modern alloys on your street machine or sand rail, these lug nuts provide the sleek, tucked-in appearance that defines a professional build.

Safety and durability are just as critical as aesthetics when it comes to your VW''s drivetrain. These lug nuts are manufactured from high-tensile hardened steel and finished with a brilliant, triple-plated chrome that resists corrosion and maintains its luster through the harshest driving conditions. Each set comes with a specialized thin-wall spline tool, ensuring you have the exact key needed for installation and removal. The 60-degree conical seat is precision-machined to provide maximum surface contact against the wheel seat, which is vital for maintaining proper torque and preventing wheel wobble or stud failure during high-speed cruising or off-road excursions. When you choose EMPI hardware from Appletree Automotive, you are investing in decades of air-cooled heritage and engineering excellence.

FITMENT

These 12mm lug nuts are designed for Volkswagens utilizing 12mm x 1.5 thread pitch studs. Please verify your stud size before ordering, as many early VWs and heavy-duty off-road hubs use 14mm hardware.

• VW Beetle (Standard & Super): 1968-1977 (Models equipped with 4-lug 12mm stud conversions)
• VW Karmann Ghia: 1968-1974 (With 12mm stud conversions)
• VW Type 3 (Squareback, Fastback, Notchback): 1966-1973 (With 12mm stud conversions)
• Dune Buggies & Sand Rails: Any custom chassis utilizing 12mm x 1.5 threaded wheel studs.
• Aftermarket Wheels: Specifically required for wheels with narrow lug pockets where a standard 19mm or 21mm socket will not fit.

SPECS

• Thread Pitch: 12mm x 1.5
• Seat Type: 60-Degree Tapered / Conical Seat
• Outside Diameter: Small OD "Tuner Style" Spline Drive
• Finish: High-Luster Triple Chrome Plating
• Material: Cold-Forged Hardened Steel
• Quantity: Pack of 5 Lug Nuts (Enough for one wheel plus a spare or 5-lug hubs)
• Included Accessories: 1 Dedicated Spline Drive Installation Tool/Key
• Manufacturer: EMPI
• Part Number: 00-9549-0

PRO TIPS

1. Always Hand-Start to Prevent Cross-Threading

Before you even think about reaching for a wrench or the included spline tool, always thread the lug nut onto the stud by hand for at least three to four full rotations. The 12mm x 1.5 thread is relatively fine, and it is incredibly easy to cross-thread the nut if it is misaligned. If you feel any resistance early on, back it off and try again. Using an impact gun to start these nuts is the fastest way to ruin a set of studs and turn a simple wheel swap into a multi-hour repair job involving a hammer and a press.

2. Torque to Spec and Re-Check After 50 Miles

For standard 12mm VW wheel hardware, the recommended torque is typically between 80 and 90 lb-ft, but you should always defer to the specific requirements of your aftermarket wheel manufacturer. Use a calibrated torque wrench to ensure even clamping force across the wheel face; this prevents warped brake drums or rotors and ensures the wheel stays centered. Crucially, new chrome lug nuts can "settle" against the aluminum of a new wheel. Always re-torque your lug nuts after the first 50 miles of driving to ensure they haven''t loosened as the surfaces mate together.

3. Protect Your Tool and Your Chrome

The included spline drive key is a specialized toolif you lose it, you aren''t getting those wheels off with a standard socket set. We highly recommend keeping the tool in a dedicated spot in your glove box or tool roll, and perhaps even ordering a second spare key for your home shop. Additionally, to keep the chrome looking show-quality, avoid using harsh acidic wheel cleaners or "purple" degreasers, which can cloud the finish over time. A simple wipe-down with mild soap and water, followed by a light coat of car wax, will keep these lug nuts shining for years.
