Billet Distributor Clamp, Black, with Timing Mark for Type 1

OVERVIEW

Upgrade your air-cooled Volkswagen''s ignition system with the ultimate in precision and style. The Latest Rage Billet Distributor Clamp is a massive leap forward from the flimsy, stamped-steel clamps that came standard from the factory. In the high-vibration environment of a Type 1 engine, maintaining rock-solid ignition timing is critical for performance, fuel economy, and engine longevity. This clamp is CNC-machined from high-grade 6061-T6 billet aluminum, ensuring that once you set your timing, it stays exactly where you want it. The deep black anodized finish not only protects against corrosion but also adds a professional, high-performance look to your engine bay, whether you are building a show-winning Beetle or a rugged sand rail designed to take a beating in the dunes.

What sets this billet clamp apart from the competition is the integrated timing mark system. Tuning a VW engine often involves a lot of guesswork when trying to align the distributor body with the engine case. With this clamp, you gain a clear reference point that allows for micro-adjustments and easy visual confirmation of your distributor''s position. This is especially beneficial for enthusiasts running high-performance camshafts or aftermarket ignition systems where even a few degrees of timing drift can lead to overheating or detonation. By replacing your worn-out or bent stock clamp with this heavy-duty billet version, you are investing in the stability and reliability of your entire drivetrain. It provides a 360-degree uniform grip around the distributor neck, preventing the "walking" or rotating that often occurs with inferior hardware during high-RPM operation.

FITMENT

This Billet Distributor Clamp is designed for all Volkswagen Type 1 based engine cases. It is compatible with a wide range of air-cooled models, including:

• Volkswagen Beetle: 1950 through 1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Type 2: 1950 through 1971 (Models with upright Type 1 engines)
• Volkswagen Thing / Type 181: 1973 through 1974
• Volkswagen Type 3: 1961 through 1973 (Squareback, Fastback, Notchback)
• Custom Applications: Ideal for Dune Buggies, Sand Rails, Trikes, and Kit Cars utilizing a VW Type 1 engine block.
• Distributor Compatibility: Fits Bosch 009, 034 SVDA, and most stock-style vacuum advance or centrifugal advance distributors.

SPECS

• Material: CNC Machined 6061-T6 Billet Aluminum.
• Finish: Premium Black Anodized for maximum durability and heat resistance.

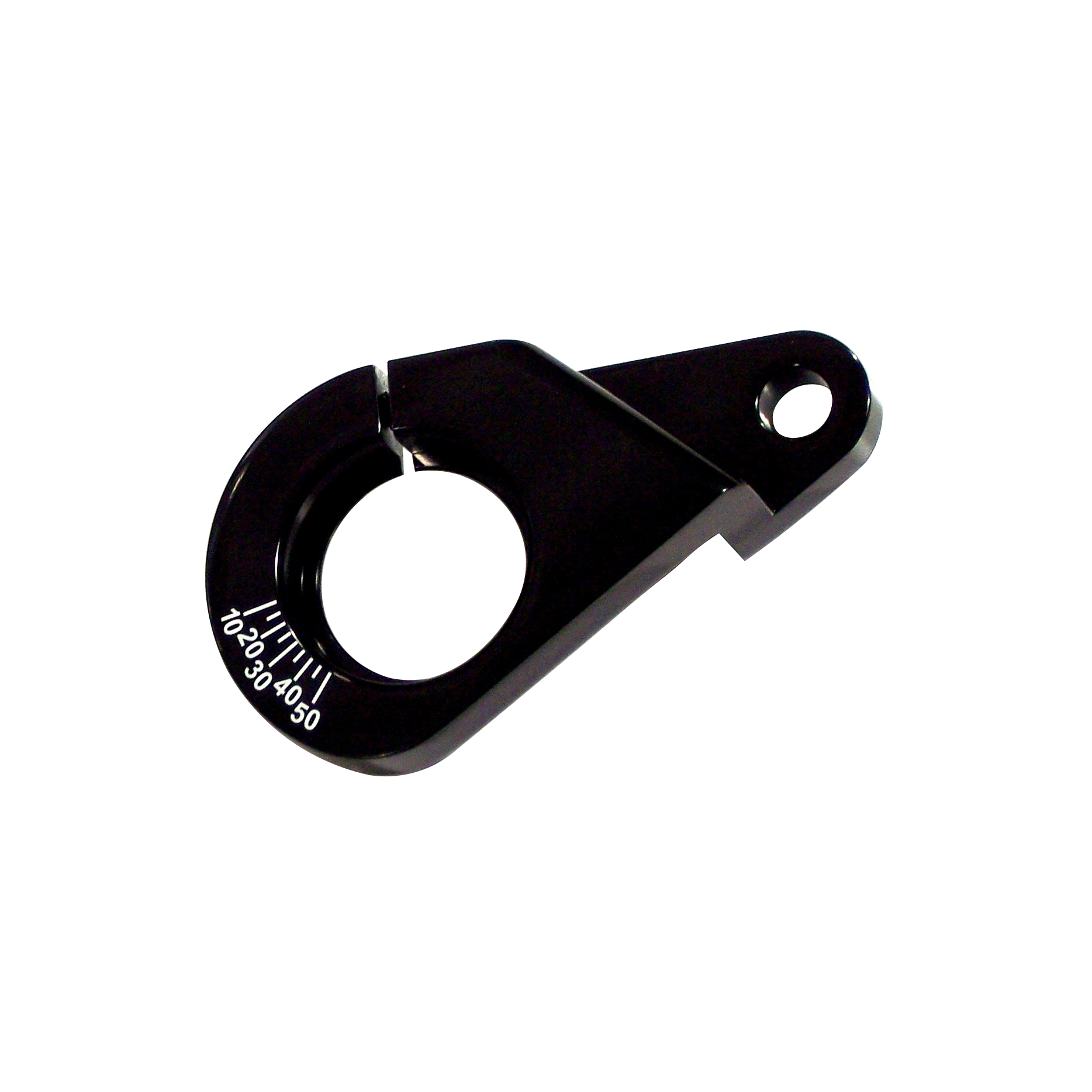

• Adjustment Features: Precision engraved timing marks for accurate ignition tuning.

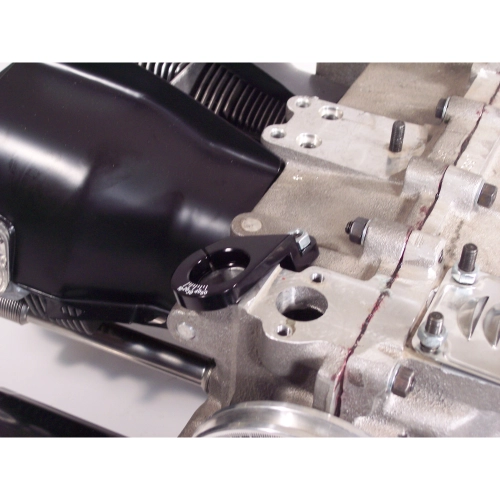

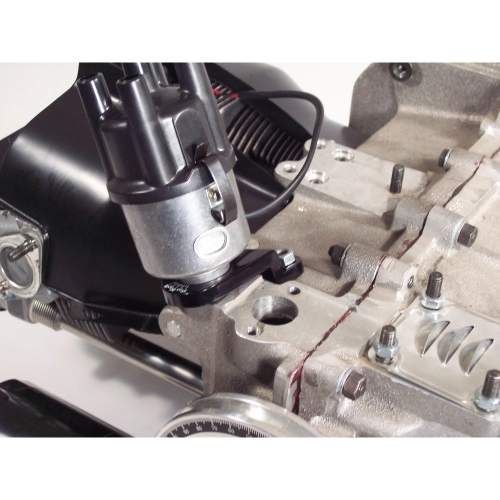

• Clamping Style: Wrap-around design for even pressure distribution on the distributor neck.
• Hardware: Includes high-tensile socket head cap screw for secure tightening.
• Application: Fits standard 1.00-inch (approximate) distributor mounting bosses on Type 1 cases.
• Manufacturer: Latest Rage.

PRO TIPS

1. Clean the Mounting Surface for Maximum Grip

Before installing your new billet clamp, it is vital to thoroughly clean both the distributor neck and the engine case mounting boss. Over years of operation, oil vapor and road grime can create a slippery film that allows even a tight clamp to rotate slightly under engine vibration. Use a lint-free rag and a bit of brake cleaner to degrease these surfaces. When you install the billet clamp on a dry, clean surface, the friction coefficient is much higher, ensuring that your timing remains locked in place even during aggressive off-road driving or high-vibration racing conditions. Don''t forget to apply a tiny drop of blue thread locker to the clamp bolt to prevent it from backing out over time.

2. Use the Timing Marks for Advanced Tuning

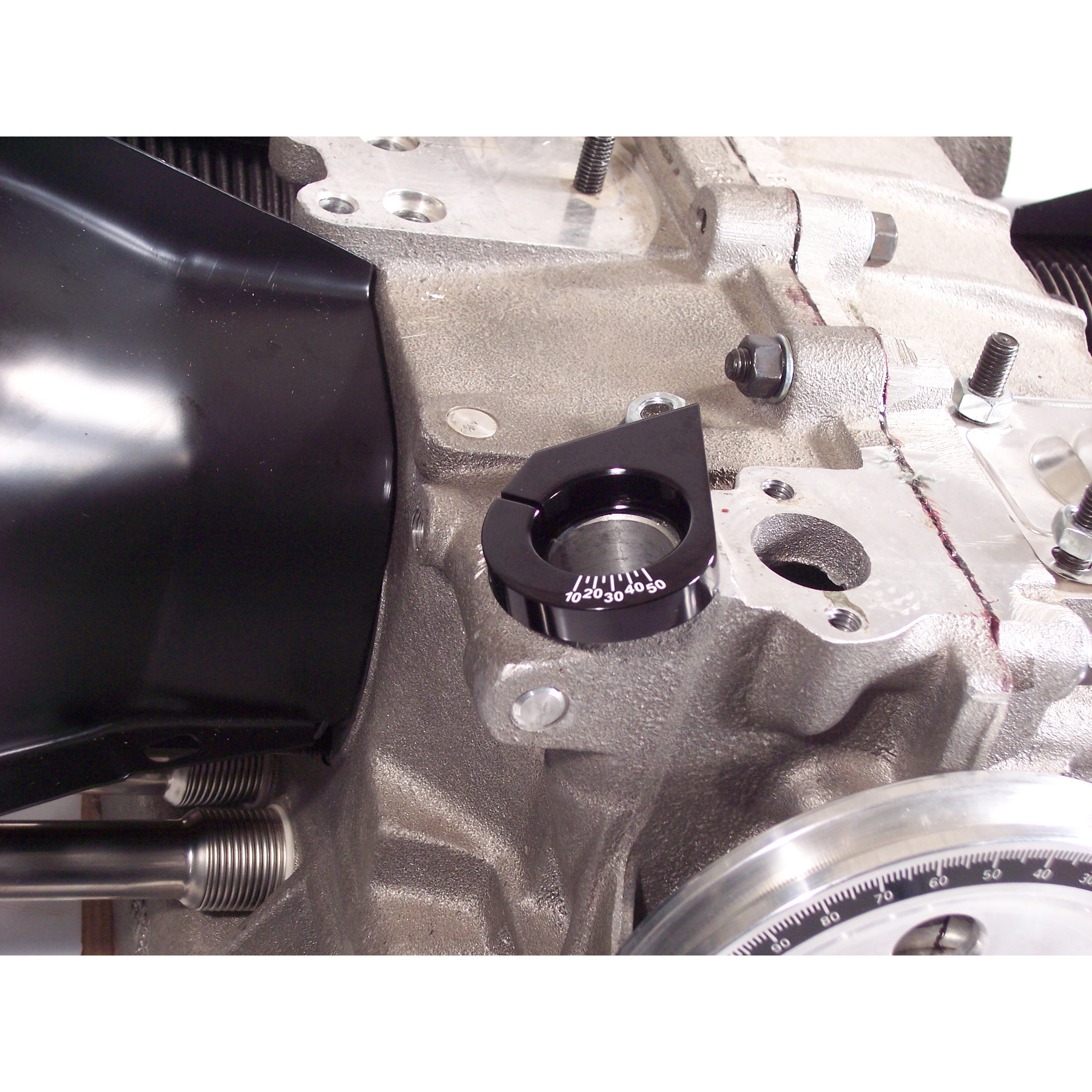

The integrated timing marks on this clamp are more than just an aesthetic touch; they are a valuable diagnostic tool. Once you have established your base timing using a timing light and your crank pulley, take note of where the distributor notch aligns with the marks on the clamp. If you ever need to remove the distributor for maintenance, such as replacing points or an O-ring, these marks allow you to reinstall the distributor to the exact same position without having to break out the timing light every single time. It also allows you to make "trail-side" adjustments with confidence if you find yourself running low-quality fuel and need to retard the timing slightly to prevent pinging.

3. Avoid Over-Torquing the Clamp Bolt

Because this clamp is made of billet aluminum, it provides significantly more clamping force than a stamped steel part with much less effort. It is a common mistake to over-tighten the mounting bolt, which can potentially distort the distributor neck or strip the threads in the aluminum clamp. You want the clamp to be "snug plus a quarter turn." The goal is to prevent the distributor from rotating, not to crush it. If you can no longer turn the distributor by hand with moderate force, the clamp is doing its job. Periodically check the tightness of the bolt during your regular oil change intervals, especially if you drive your VW in environments with extreme temperature swings, as aluminum and steel expand and contract at different rates.
