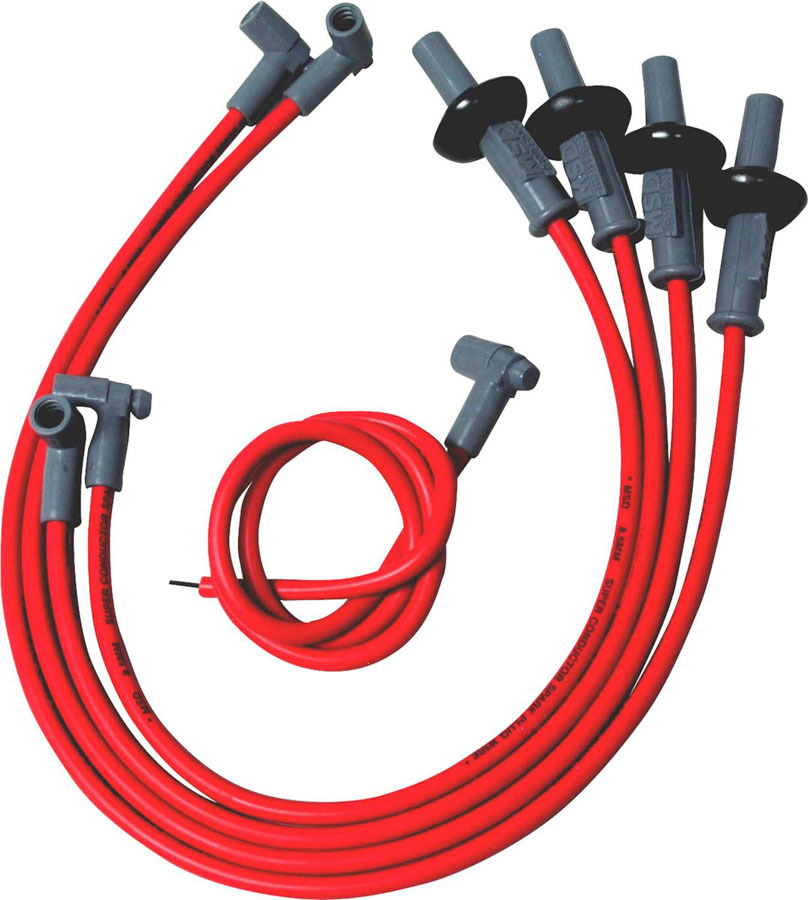

MSD 8.5mm Spark Plug Wires, For Type 1 VW

OVERVIEW

When it comes to squeezing every ounce of horsepower out of your air-cooled engine, your ignition system is only as strong as its weakest link. The MSD 8.5mm Super Conductor Spark Plug Wires are engineered specifically for the Volkswagen Type 1 enthusiast who refuses to settle for "good enough." These aren''t just standard replacement wires; they are a high-performance upgrade designed to bridge the gap between your coil and your spark plugs with virtually zero energy loss. In the harsh, high-heat environment of a VW engine bay, inferior wires often break down, leading to misfires and lost performance. MSD solves this by utilizing a copper alloy conductor with incredibly low resistanceonly 40 to 50 ohms per foot. This ensures that the maximum amount of spark energy reaches the combustion chamber, resulting in crisper throttle response, easier starts, and a smoother idle for your Beetle, Ghia, or rail.

What sets the MSD Super Conductor apart from the competition is the sophisticated internal architecture. While many low-resistance wires sacrifice radio frequency interference (RFI) suppression, MSD utilizes a proprietary winding technique. They wrap over 40 feet of copper conductor around a single foot of ferro-magnetic impregnated center core. This creates a highly effective electro-magnetic interference (EMI) "choke," keeping the electrical noise trapped inside the wire where it belongs. This is crucial for modern air-cooled builds that might be running electronic fuel injection, high-end GPS units, or sensitive audio systems. Wrapped in a rugged, proprietary blend of silicone and synthetic materials, these 8.5mm wires are built to withstand extreme temperatures and resist chemical damage from oil or fuel. When you install these on your Type 1 engine, you aren''t just buying wires; you are investing in a lifetime of ignition reliability and performance that Appletree Auto stands behind.

FITMENT

These MSD 8.5mm Super Conductor wires are designed for Volkswagen Type 1 based engines and applications including:

• Volkswagen Beetle: 1946 through 1977 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Transporter (Type 2): 1950 through 1971 (with Type 1 upright engine)
• Custom Applications: Dune Buggies, Sand Rails, Baja Bugs, and Manx-style kits using Type 1 engine platforms.
• Ignition Compatibility: Works perfectly with stock distributors, 009 distributors, and high-output systems like the MSD 6AL or Pertronix Ignitor.

SPECS

• Wire Diameter: 8.5mm (Heavy Duty Oversized)
• Resistance: Less than 50 Ohms per foot for maximum voltage delivery.
• Conductor Material: Copper Alloy for superior conductivity.
• Core Type: Ferro-magnetic impregnated center core for elite EMI suppression.
• Outer Sleeve: Proprietary Silicone/Synthetic blend resistant to high heat and abrasion.
• Quantity: Complete set of 4 spark plug wires.
• Color: Signature MSD Red with black boots.
• Terminals: Stainless steel spark plug terminals for corrosion resistance.
• Boot Material: High-temp silicone designed to seal tightly against the spark plug.

PRO TIPS

1. Proper Wire Routing is Critical for Longevity

Air-cooled VW engines are notorious for high cylinder head temperatures. When installing your new 8.5mm MSD wires, ensure they are kept away from the exhaust pushrod tubes and the heater boxes. Even though the silicone jacket is highly heat-resistant, constant contact with an exhaust component will eventually degrade the insulation. We highly recommend using wire looms or separators to keep the wires organized and suspended. This not only prevents "cross-fire" between wires but also keeps your engine bay looking professional and clean. Never let the wires dangle near the fan belt or any moving pulleys, as the 8.5mm thickness makes them more prone to snagging if not properly secured.

2. Use Dielectric Grease for a Better Seal

Before snapping the boots onto the spark plugs or the distributor cap, apply a small dab of high-quality dielectric grease inside the spark plug boot. This serves two vital purposes: first, it prevents the rubber from "bonding" to the ceramic of the spark plug over time due to heat, which makes future removal much easier without tearing the wire. Second, it helps create a moisture-proof seal that prevents voltage leaks or tracking, especially if you drive your Bug or Baja in wet conditions. Ensure the terminal "clicks" firmly onto the spark plug; the 8.5mm boots are thick, so you may need to give them an extra firm push to ensure they are fully seated on the plug tip.

3. Check Your Distributor Cap Terminals

Since these MSD wires are designed to deliver a massive amount of spark energy, you want to make sure the receiving end is up to the task. Before installation, inspect your distributor cap terminals for any signs of corrosion or "green" oxidation. If you are using an older cap with aluminum terminals, consider upgrading to a cap with brass terminals for better conductivity. Because the MSD 8.5mm wires have such low resistance, any resistance at the cap terminal becomes a bottleneck. Cleaning your terminals or starting with a fresh cap ensures that the full power of your ignition system actually makes it to the combustion chamber, allowing the Super Conductor technology to do its job effectively.
