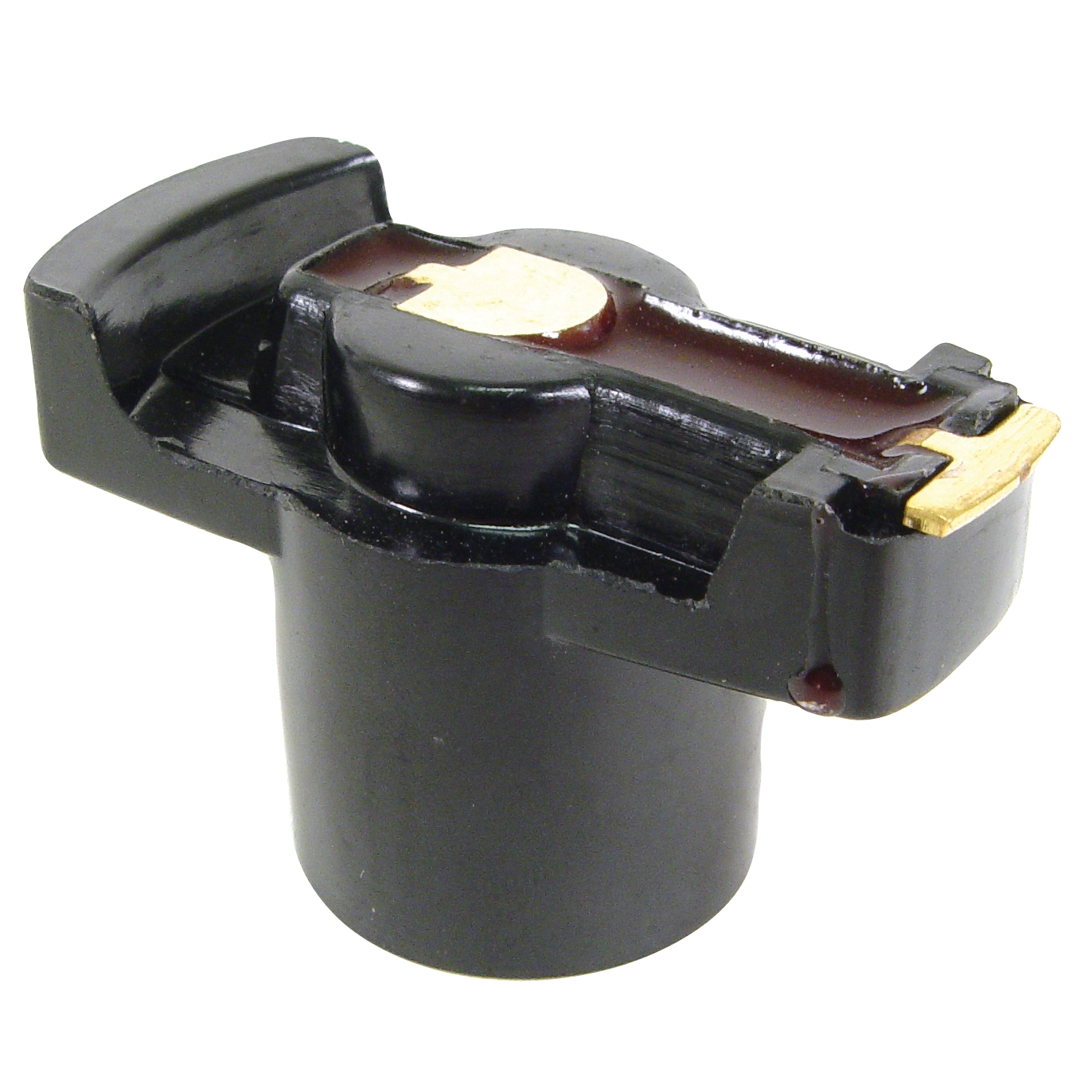

Rotor, for 009 & EMPI Distributors, Each

OVERVIEW

When it comes to maintaining the heartbeat of your air-cooled engine, the ignition system is arguably the most critical component to keep in top shape. The EMPI Rotor for 009 and EMPI distributors is a precision-engineered replacement part designed to ensure that the high-voltage spark from your coil reaches your spark plug wires with zero interference. Over time, heat cycles and high-voltage electrical arcs can degrade the conductive tip and the structural integrity of your rotor, leading to carbon tracking, erratic idling, and frustrating misfires. By upgrading to this high-quality EMPI rotor, you are investing in the reliability and performance that your Volkswagen deserves, whether you are cruising the coastline in a classic Beetle or tearing up the dunes in a high-performance sand rail.

This specific rotor is built to the exact specifications required for the legendary Bosch-style 009 centrifugal advance distributor, as well as the modern EMPI replacement versions. Unlike cheap, generic alternatives that may have fitment issues or inferior conductive materials, this EMPI unit features a robust construction that resists warping under the intense temperatures found within a VW engine bay. It provides a tight, secure fit on the distributor shaft, ensuring that the timing remains precise and consistent across the entire RPM range. Don''t let a tiny, inexpensive part be the weak link in your ignition system; keep a spare in your glovebox and ensure your air-cooled engine stays firing on all cylinders with the professional-grade quality of EMPI.

FITMENT

This rotor is designed for use with the Bosch-style 009 Centrifugal Advance Distributor and EMPI brand distributors. It fits the following vehicles equipped with these specific distributors:

• Volkswagen Beetle: 1950-1979 (All models with 009 or EMPI distributors)
• Volkswagen Bus / Type 2: 1950-1979 (All models with 009 or EMPI distributors)
• Volkswagen Karmann Ghia: 1956-1974
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962-1973
• Volkswagen Thing / Type 181: 1973-1974
• Custom Applications: Dune Buggies, Sand Rails, and Trikes using 1600cc to 2332cc air-cooled engines.

SPECS

• Part Number: 16-9436-0
• Application: Fits 009 and EMPI branded distributors.
• Material: High-dielectric strength phenolic resin body.
• Contact Material: Precision-machined brass tip for maximum conductivity.
• Fitment Type: Direct replacement, press-fit onto distributor shaft.
• Weight: 0.1 lbs.
• Quantity: Sold individually (Each).
• Compatibility: Works with both points-style and electronic ignition modules.

PRO TIPS

1. Inspect for Carbon Tracking and Burn Marks

Every time you perform an oil change or a valve adjustment, take a moment to pop the distributor cap and look at the rotor. If you see black, web-like lines on the plastic body (known as carbon tracking) or significant pitting on the brass tip, it is time for a replacement. Carbon tracking allows the spark to "leak" to the distributor shaft instead of reaching the spark plug wire, which causes an immediate loss of power and poor fuel economy. Keeping the rotor clean and dry is essential for a healthy ignition arc.

2. Always Pair with a New Distributor Cap

To get the most out of your new EMPI rotor, we strongly recommend installing a fresh distributor cap at the same time. These two components wear together; a worn cap with corroded inner terminals will force the new rotor to work harder and can lead to premature failure of the brass tip due to excessive arcing. For the best performance, ensure the terminals inside the cap are clean and that the center carbon brush is making firm contact with the top of the rotor.

3. Proper Installation Alignment

When installing the rotor, pay close attention to the "keyway" or notch on the distributor shaft. The rotor is designed to sit in one specific orientation to maintain correct engine timing. Never force the rotor down; if it doesn''t slide on smoothly, check for debris or burrs on the shaft. Once it is seated, give it a slight wiggle to ensure it is locked into the notch. If the rotor is loose or incorrectly seated, it can strike the distributor cap terminals, causing catastrophic damage to the distributor internals and leaving you stranded on the side of the road.
