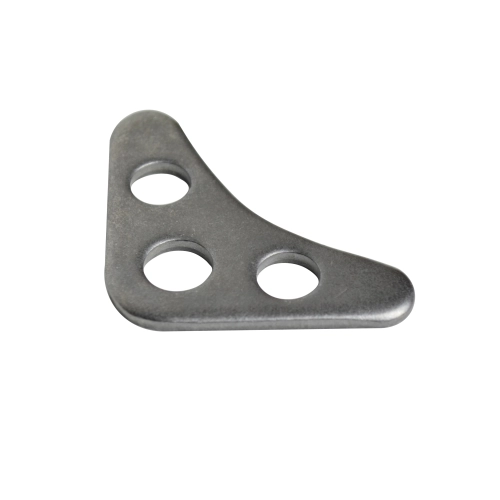

Gusset, 3 Hole, 1/8 Thick

OVERVIEW

When you are pushing a custom sand rail or a heavy-duty Baja Bug to its absolute limits in the dunes or on the trail, structural integrity is the difference between a successful weekend and a catastrophic frame failure. This A&A Manufacturing 3-hole gusset is a critical component for any serious fabricator looking to reinforce high-stress junctions in an air-cooled VW chassis or roll cage. Engineered from 1/8-inch thick mild steel, these gussets provide the necessary triangulation to prevent joint fatigue and weld cracking. Whether you are building a custom front beam support, reinforcing a shock tower, or tying together a complex roll cage structure, these gussets offer the professional-grade strength that Appletree Auto customers have relied on for decades. Don''t leave your safety to chance by skipping the small details; these reinforcement plates are the backbone of a truly "bulletproof" off-road build.

The unique three-hole design of the FAB-3029 gusset serves a dual purpose that goes far beyond simple aesthetics. While the lightening holes certainly provide that classic "race-ready" look found on high-end trophy trucks and desert racers, they also serve a functional role by reducing unsprung weight without sacrificing structural rigidity. More importantly, these holes provide additional surface area for perimeter welding or "plug welding" if the application requires a more integrated bond to the tubing. Measuring approximately 1 7/8 inches in length, these compact yet robust plates fit perfectly into tight corners where larger gussets might interfere with other components. They are shipped in raw mild steel, ensuring they are ready for immediate fitment and TIG or MIG welding right out of the box. For the air-cooled enthusiast who demands precision, these A&A Manufacturing gussets are the industry standard for chassis fabrication.

FITMENT

This is a universal fabrication component designed for use in custom chassis and roll cage applications. It is most commonly used in the following air-cooled VW and off-road builds:

• VW Beetle (All Years): Ideal for reinforcing body mounts and custom roll cages.
• VW Baja Bug: Essential for shock mount reinforcement and cage-to-chassis tie-ins.
• VW Bus (Split Window & Bay Window): Used in custom suspension geometry and frame repair.
• VW Type 181 Thing: Perfect for strengthening the pan and upper cage structures.
• Sand Rails & Dune Buggies: Universal application for all 90-degree and angled tube junctions.
• Meyers Manx & Fiberglass Buggies: Used to reinforce the subframe and roll bar mounting points.
• Custom Tube Chassis: Fits 1-inch to 2-inch diameter tubing profiles with ease.

SPECS

• Manufacturer: A&A Manufacturing
• Part Number: FAB-3029
• Material: High-quality Mild Steel
• Thickness: 1/8 Inch (0.125")
• Overall Length: 1 7/8 Inches
• Hole Pattern: 3-hole precision-punched lightening holes
• Finish: Raw Steel (requires painting or plating after welding)
• Weldability: Excellent for both MIG and TIG welding processes
• Quantity: Sold Individually

PRO TIPS

1. Proper Surface Preparation is Key

Before you spark up your welder, it is vital to remove any mill scale or surface oils from the gusset and the tubing it is being joined to. Use a flap disc or a wire wheel to bring the mild steel to a bright, shiny finish. This ensures maximum penetration and prevents contaminants from weakening the weld bead. Because these are raw steel, they can develop a light surface oxidation during shipping; cleaning them thoroughly will result in a much cleaner, professional-looking TIG bead or a stronger MIG bond that won''t pop or splatter.

2. Avoid Over-Welding to Prevent Warpage

When installing these 1/8-inch gussets, it is tempting to lay down a heavy bead all the way around the perimeter in one pass. However, excessive heat can cause the thin-wall tubing of your chassis to warp or become brittle. Instead, tack the gusset firmly in place at the corners and the center. Allow the metal to cool slightly, then weld in short segments. This "stitch" method manages the heat soak and maintains the dimensional accuracy of your frame, ensuring that your doors still close and your suspension remains aligned.

3. Rust Prevention After Fabrication

Since these gussets are made from mild steel, they will begin to oxidize almost immediately after welding due to the heat removing any residual oils. Once the weld has cooled and you have cleaned off the slag or TIG color, apply a high-quality zinc-rich primer or a specialized chassis paint. For the best results in off-road environments, many builders prefer to have the entire cage powder-coated. If you are going that route, make sure to scuff the gussets lightly with a Scotch-Brite pad to give the coating the best possible surface to "bite" into for long-term durability.
