Disc Brake Spacer, for Making Short Spline Into Long Spline

OVERVIEW

When it comes to the technical nuances of air-cooled Volkswagen rear-end geometry, the distinction between "short spline" and "long spline" axle configurations is a hurdle every seasoned builder eventually faces. This EMPI Disc Brake Spacer is the master-grade solution designed to bridge that gap, specifically allowing enthusiasts to run short-spline swing axle rotors on long-spline IRS (Independent Rear Suspension) or late-model swing axle setups. Without this critical 5/8-inch spacer, the axle nut would bottom out on the splines before ever making contact with the rotor face. This creates a dangerous "floating" rotor situation where the necessary clamping force cannot be achieved, leading to immediate mechanical failure and potential loss of the wheel assembly. By installing this precision-machined spacer, you effectively extend the rotor shoulder, ensuring that the axle nut can be torqued down to factory specifications while maintaining perfect alignment with the brake caliper.

Engineering a reliable drivetrain for a high-performance Dune Buggy, Sand Rail, or restored Beetle requires components that can withstand extreme rotational stress. This spacer is manufactured from high-tensile steel to ensure it does not compress or deform under the massive torque loads required for VW rear axles. Whether you are converting an early-model chassis to a more modern IRS suspension or you are piecing together a custom disc brake kit from various years, this spacer eliminates the guesswork and the need for dangerous "stacked washer" alternatives. At Appletree Auto, we understand that the safety of your build depends on the integrity of your braking system. This EMPI spacer provides the exact 5/8-inch offset needed to turn a mismatched parts pile into a synchronized, road-ready braking system that handles the rigors of both high-speed highway travel and aggressive off-road trailing.

FITMENT

• VW Beetle: 1950 through 1979 (When converting to Long Spline IRS or 1968-only Swing Axle)
• VW Karmann Ghia: 1956 through 1974 (IRS Conversion applications)
• VW Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• VW Thing (Type 181): 1973 through 1974
• Dune Buggies & Sand Rails: All custom applications utilizing 4-lug or 5-lug short-spline rotors on IRS transaxles
• Axle Type: Specifically for adapting Short Spline Rotors to Long Spline Axles

SPECS

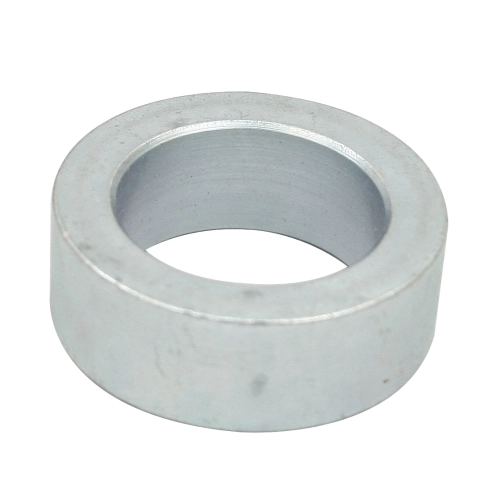

• Product Name: EMPI Rear Disc Brake Rotor Spacer
• Part Number: 22-5281-7
• Thickness: 5/8 Inch (0.625 inches)
• Material: Heavy-Duty Machined Carbon Steel
• Finish: Raw Steel (Precision Ground Surfaces)
• Spline Compatibility: Fits standard VW 12-tooth splined rear axles
• Application: Swing Axle Rotor to IRS Axle Conversion
• Quantity: Sold Individually (Two required per vehicle)

PRO TIPS

Pro Tip 1: Never Compromise on Torque. When installing this spacer, it is imperative that you torque your rear axle nut to at least 217 foot-pounds. Because this spacer is a load-bearing element in the stack, any looseness will cause the splines on both the axle and the rotor to "fret" or strip out under acceleration. Always use a high-quality 36mm socket and a heavy-duty breaker bar or torque multiplier. After the initial test drive, re-check the torque to ensure the spacer has seated fully against the bearing carrier and the rotor face.

Pro Tip 2: Inspect Spline Condition and Cleanliness. Before sliding the spacer onto the axle, use a wire brush or a small triangular file to clean any burrs or rust off the axle splines. The spacer should slide on smoothly by hand. If you have to hammer it on, something is misaligned or dirty. A light coating of anti-seize on the splines (not the threads) can prevent the spacer and rotor from seizing to the axle over time, which is especially important for off-road vehicles
