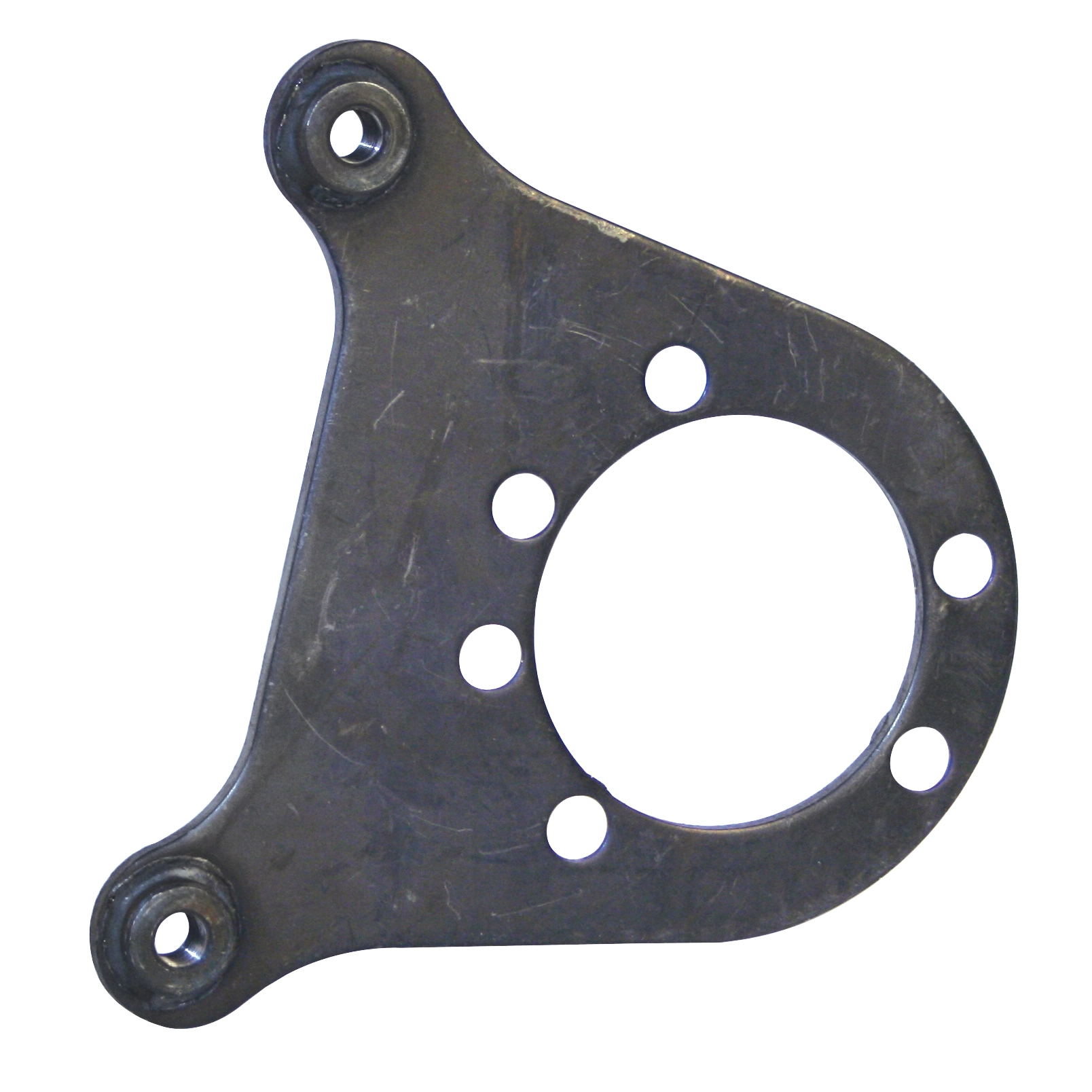

Disc Brake Caliper Bracket, For Ball Joint Custom App

OVERVIEW

Upgrading your air-cooled Volkswagen''s stopping power is one of the most critical safety enhancements you can make, especially when moving toward high-performance or off-road applications. This EMPI Disc Brake Caliper Bracket is specifically engineered to bridge the gap between stock ball joint front spindles and the aggressive 4-piston calipers commonly found in the performance world. Whether you are building a dedicated woods buggy, a high-speed sand rail, or a street-bound Beetle that needs serious clamping force, this bracket provides the structural integrity required to handle the torque of modern braking systems. By utilizing a precision-machined design, it ensures that your calipers remain perfectly aligned with the rotor, preventing uneven pad wear and maximizing the hydraulic efficiency of your brake system.

Unlike generic adapters that may flex under heavy load, this bracket is built to withstand the rigors of both the street and the trail. It features a bolt pattern of 5-1/4 inches on center, making it the industry standard for mounting popular aftermarket 4-piston calipers such as those from Gray Area or other high-end manufacturers. For enthusiasts who are tired of the lackluster performance of stock drum brakes or even standard single-piston disc conversions, this bracket serves as the foundation for a truly big brake setup on a ball joint front end. It simplifies the installation process by providing a direct-fit solution that utilizes 3/8 inch - 24 threaded mounting holes, ensuring a secure and professional-grade finish for your custom project.

FITMENT

• Volkswagen Type 1 Beetle (Standard): 1966 through 1977 (Ball Joint Models)
• Volkswagen Karmann Ghia: 1966 through 1974
• Custom Dune Buggies: All years using Ball Joint front beams and spindles
• Sand Rails & Woods Buggies: Custom applications requiring 5-1/4 inch caliper spacing
• Note: Specifically designed for front spindle mounting only
• Note: Does not fit Super Beetle (MacPherson Strut) or early King and Link Pin front ends

SPECS

• Product Brand: EMPI
• Manufacturer Part Number: 17-2677-0
• Spindle Application: VW Ball Joint Front Spindle

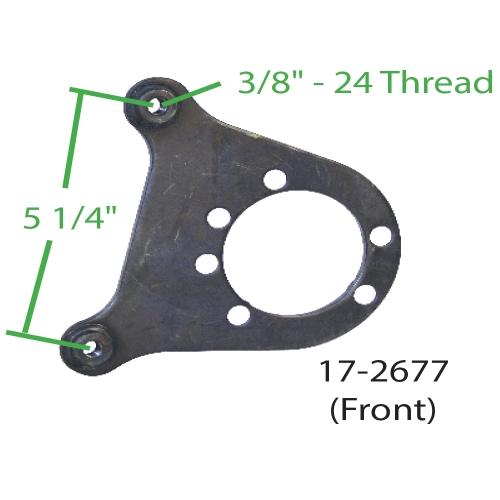

• Caliper Mounting Pattern: 5-1/4 inches (Measured center-to-center)
• Mounting Hole Thread: 3/8 inch - 24 (Fine Thread)
• Material: Heavy-duty high-tensile steel
• Orientation: Front (Universal Left or Right)
• Compatible Calipers: Most popular aftermarket 4-piston calipers
• Weight: Approximately 0.99 lbs
• Quantity: Sold individually (each)

PRO TIPS

1. Prioritize Grade 8 Hardware and Thread Locker

Braking systems are subject to extreme vibrations and shear forces, especially when you are running a high-clamping 4-piston caliper. Always use Grade 8 or higher fasteners to mount this bracket to the spindle and the caliper to the bracket. Furthermore, I always recommend a drop of high-strength (red) thread locker on the mounting bolts. This ensures that even in the roughest off-road conditions, your braking assembly remains rock solid. Never reuse old or rusted hardware when installing a performance brake component.

2. Check Caliper-to-Rotor Centering

When installing custom brackets and 4-piston calipers, tolerances can vary between different manufacturers of rotors and spindles. Once the bracket is bolted up, slide your caliper over the rotor and check for perfect centering. If the caliper sits slightly to one side, you may need to use thin precision shims (washers) between the bracket and the spindle or between the bracket and the caliper. A perfectly centered caliper ensures that the pistons extend equally, providing a firmer pedal feel and preventing premature pad taper.

3. Verify Wheel Clearance Before Final Assembly

The addition of a 4-piston caliper and this mounting bracket often increases the physical footprint of the braking assembly compared to stock units. Before you bleed the system and head out for a test drive, mock up your wheels to ensure there is no contact between the caliper body and the inner barrel or spokes of the wheel. This is especially important for owners running 15-inch wheels or wheels with a deep offset. If clearance is tight, you may need to consider a small wheel spacer or a different wheel design to accommodate the high-performance brake setup.
