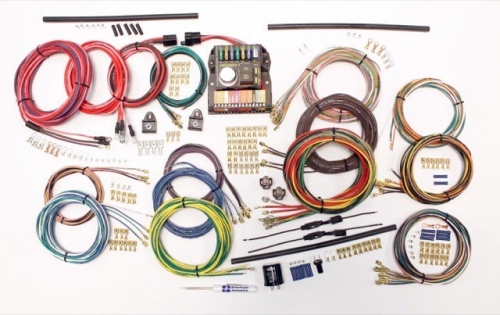

Complete Wiring Harness, for Beetle 62-74

OVERVIEW

When it comes to restoring a classic Bug, there is nothing more frustrating or dangerous than dealing with fifty-year-old, brittle, and cracked electrical systems. Original Volkswagen wiring was never designed to last half a century, and after decades of heat cycles, moisture, and previous owner "hack jobs," most Beetle electrical systems are a literal fire hazard waiting to happen. The American Autowire Classic Update Series Wiring Harness for the 1962-1974 Beetle is the definitive solution for the serious enthusiast who wants to eliminate electrical gremlins for good. This isn''t just a basic replacement; it is a complete re-engineering of your vehicle''s nervous system. By replacing the outdated ceramic fuse block with a modern, easy-to-access blade-style fuse panel, you ensure consistent power delivery and significantly reduce the risk of shorts that plague vintage air-cooled Volkswagens.

The beauty of this American Autowire kit lies in its "Classic Update" philosophy, which means it maintains the vintage look of your Beetle while providing the heavy-duty capacity needed for modern upgrades. Whether you are running a high-output alternator, an electronic ignition system, a powerful modern stereo, or even aftermarket EFI, this harness can handle the load with ease. Every wire is constructed from high-quality GXL cross-linked polyethylene, which is far more resistant to heat, oil, and abrasion than the original PVC-coated wire. The kit includes everything from the headlight connectors to the tail light leads, featuring clearly labeled wires every few inches to take the guesswork out of the installation process. When you choose this harness from Appletree Auto, you are investing in the reliability, safety, and longevity of your air-cooled investment.

FITMENT

• 1962-1974 Volkswagen Beetle (Standard)
• 1971-1974 Volkswagen Super Beetle
• Compatible with Left Hand Drive (LHD) Models
• Designed for 12-Volt electrical systems
• Accommodates both Generator and Alternator charging systems

SPECS

• Brand: American Autowire
• Series: Classic Update Series
• Manufacturer Part Number: 510419
• Wire Type: GXL High-Temperature Cross-Linked Polyethylene
• Fuse Type: Modern ATO/ATC Blade Fuses
• Circuit Capacity: Expanded circuit capability for modern accessories
• Wire Labeling: Laser-printed identification every 2 to 3 inches
• Connectors included: Headlight plugs, ignition switch connectors, and turn signal adapters
• Gauge: Heavy-duty primary power feeds for maximum current flow
• Grounding: Dedicated grounding circuits for improved component performance
• Protection: Includes high-quality grommets and terminal hardware

PRO TIPS

1. Prioritize Clean Grounding Points

The most common cause of electrical failure in an air-cooled VW is a poor ground. While this American Autowire kit provides excellent grounding wires, they are only as good as the surface they attach to. Before installing your new harness, use a wire wheel or sandpaper to clear away all paint, rust, and undercoating from the chassis grounding locations. Applying a small dab of dielectric grease to these connections after tightening will prevent future oxidation and ensure your headlights stay bright and your wipers run at full speed. Remember, the battery-to-chassis and engine-to-chassis grounds are just as important as the harness grounds themselves.

2. Use the Right Tools for the Job

To maintain the integrity of this high-end harness, avoid using cheap, "crush-style" crimping pliers. We strongly recommend using a professional-grade ratcheting crimper designed for non-insulated or open-barrel terminals. A proper crimp creates a "cold weld" between the wire and the terminal, ensuring it won''t pull out or develop high resistance over time. Additionally, always use adhesive-lined heat shrink tubing on any custom connections to seal out moisture. This is especially critical in the engine bay and behind the front apron where the harness is exposed to the elements. Taking the time to do professional terminations will make this the last wiring harness your Beetle ever needs.

3. Plan Your Routing for Heat and Vibration

When pulling the new harness through the central tunnel or along the body channels, be mindful of potential rub points and heat sources. Air-cooled engines generate significant heat, so ensure the rear portion of the harness is securely fastened away from the exhaust system and moving parts like the throttle linkage or fan belt. Use high-quality plastic grommets whenever the harness passes through a metal firewall or bulkhead to prevent the metal edges from vibrating through the insulation over time. Leaving a small amount of "service loop" or slack at the fuse box and engine connections will also prevent tension-related failures as the body and engine move independently during normal driving.
