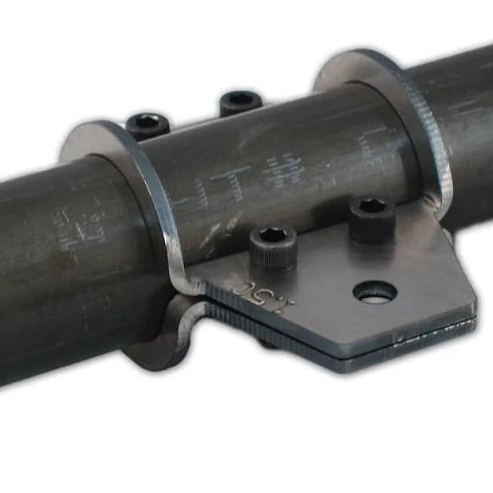

Clamp for 1-1/2 Tube, Clamshelll Style with Tab

OVERVIEW

When you''re outfitting a rugged off-road machine, whether it''s a competition sand rail, a classic Baja Bug, or a custom Manx-style dune buggy, the ability to securely mount accessories to your chassis is paramount. The Latest Rage Clamshell Style Clamp for 1-1/2 inch tubing is the professional fabricator''s answer to versatile and modular mounting. Unlike permanent weld-on tabs that lock you into a single configuration, this two-piece clamshell design allows you to add, remove, or reposition mounting points anywhere along your 1.5-inch OD (Outer Diameter) roll cage or bumper assembly. This flexibility is essential for evolving builds where you might need to shift light bars, fire extinguishers, or GPS antennas as your cockpit layout changes. The heavy-duty steel construction ensures that once it is torqued down, it stays put, even when subjected to the high-frequency vibrations and punishing impacts of desert racing or trail riding.

What sets this specific clamp apart is the integrated mounting tab, which provides a flat, pre-drilled surface for bolting on your essential gear. Crafted with a 1/8-inch thickness, the clamp provides the perfect balance between lightweight performance and structural rigidity. It eliminates the need for messy welding on finished chassis, making it an ideal solution for those who have already powder-coated or painted their frames. The precision-machined inner diameter ensures a snug, non-slip fit around standard 1-1/2 inch tubing, preventing the "clamp creep" that often plagues inferior, universal-fit alternatives. Whether you are a weekend warrior or a professional shop builder, this clamp offers a clean, industrial aesthetic that complements the functional beauty of a well-built air-cooled VW project.

FITMENT

This clamp is a universal fabrication component designed for any vehicle utilizing 1-1/2 inch (1.50") OD structural tubing. Common air-cooled VW applications include:

• Volkswagen Baja Bug: Perfect for mounting auxiliary lighting to front bumpers or roof racks.
• Sand Rails & Dune Buggies: Ideal for attaching electronics, whip antennas, or mirrors to the main roll cage.
• Meyers Manx & Kit Cars: Excellent for securing custom dashboards or fire extinguisher brackets to internal support tubes.
• VW Type 1 Beetle (1950-1979): Fits custom internal roll cages and exterior safari-style racks.
• VW Type 2 Bus / Transporter: Useful for ladder mounts or interior camping gear storage on custom 1.5-inch bars.
• Off-Road Race Chassis: Compatible with any 1.5-inch OD chromoly or DOM tubing structures.

SPECS

• Tube Diameter Compatibility: 1-1/2 Inches (1.50" OD).
• Clamp Style: Two-piece Clamshell (Bolt-on).
• Material: High-strength Carbon Steel.
• Material Thickness: 1/8 Inch (0.125").
• Attachment Type: Integrated flat mounting tab with pre-drilled hole.
• Hardware: Includes high-grade Allen-head socket screws and nuts for secure clamping.
• Finish: Raw Steel (Allows for custom painting, plating, or powder coating).
• Quantity: Sold individually (Each).

PRO TIPS

1. Prevent Thread Galling with Anti-Seize

Because these clamps are often used in harsh, dusty, or damp off-road environments, we highly recommend applying a small amount of nickel or copper anti-seize to the threads of the socket head bolts before installation. Steel-on-steel hardware can occasionally gall or seize over time due to vibration and moisture. By using anti-seize, you ensure that you can easily loosen or relocate the clamp years down the road without snapping a bolt or stripping the hex head, keeping your cage modular and maintenance-friendly.

2. Surface Preparation for Longevity

These clamps arrive in a raw steel finish, which is susceptible to surface rust if left unprotected. Before you bolt them onto your beautiful VW, take the time to properly prep and coat them. We suggest a quick scuff with a Scotch-Brite pad followed by a degreaser. If you aren''t powder coating them to match your frame, a high-quality chassis paint or even a clear coat will prevent oxidation. For a "pro" look, some builders prefer to zinc-plate these clamps to provide maximum corrosion resistance while maintaining a technical, metallic appearance.

3. Perfect Alignment and Clocking

The beauty of the clamshell design is the ability to "clock" the tab to any angle around the circumference of the tube. When mounting items like side-view mirrors or light pods, leave the bolts slightly loose so you can sit in the driver''s seat and verify the line of sight. Once the angle is perfect, tighten the bolts in an alternating patternmuch like you would tighten lug nutsto ensure even clamping pressure around the tube. This prevents the clamp from "cocking" to one side, ensuring the tab remains perfectly perpendicular to the mounting surface.
