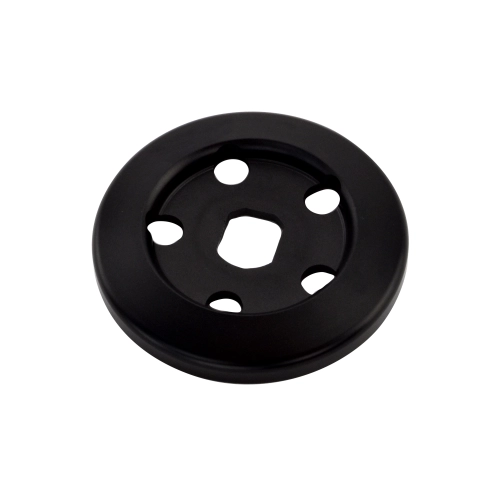

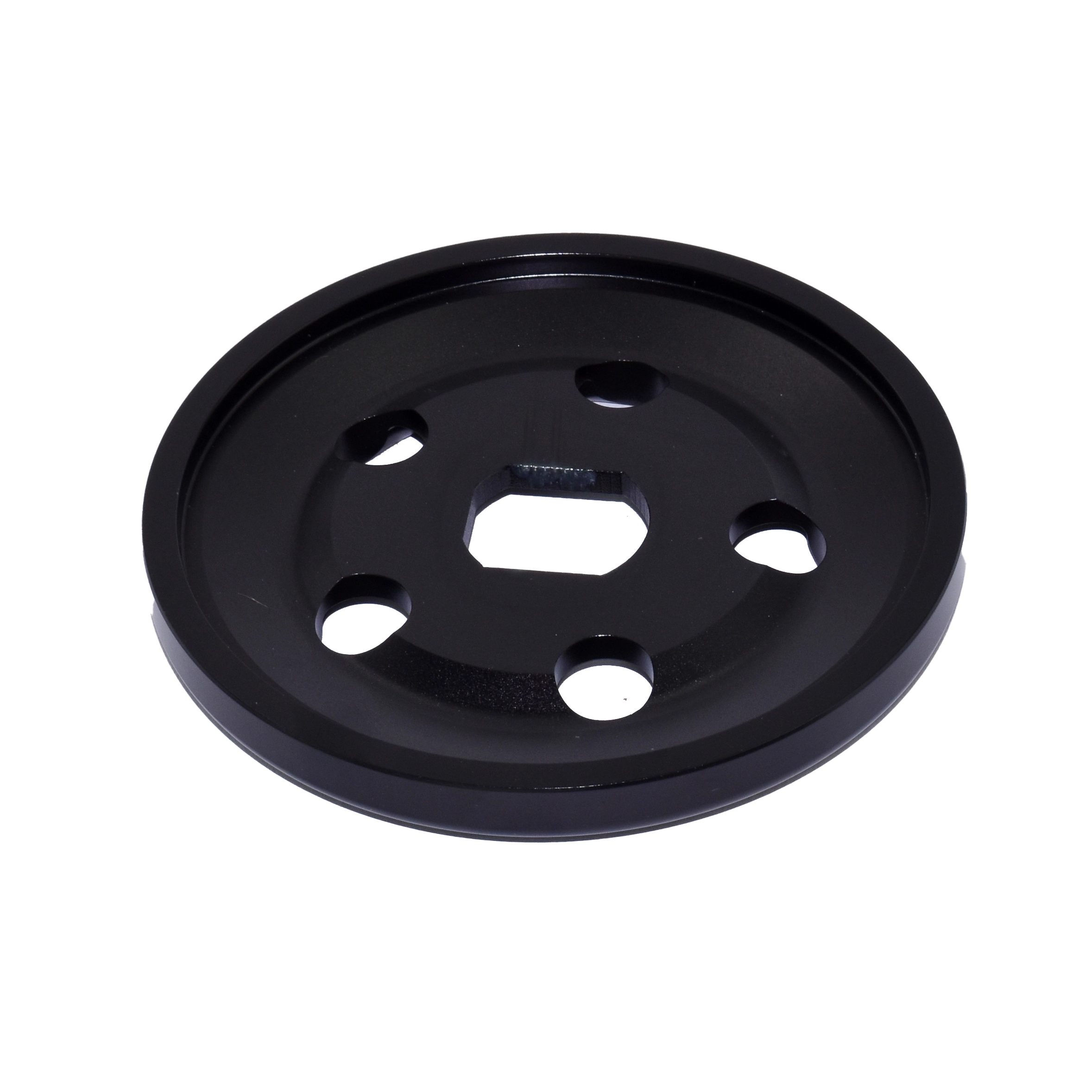

Billet Alternator Pulley Half, for VW, Black

OVERVIEW

Upgrade your air-cooled engine''s charging system with the precision-engineered EMPI Billet Alternator Pulley Half. For decades, Volkswagen enthusiasts have struggled with the limitations of stock stamped-steel pulleys, which are prone to warping, bending, and eventually causing belt misalignment or premature failure. This custom billet aluminum outer pulley half is designed to provide a much-needed increase in structural rigidity and rotational balance. By replacing the flimsy factory front half with this high-grade CNC-machined component, you are not only improving the durability of your accessory drive system but also adding a sleek, modern touch to your engine bay. The black anodized finish offers a deep, lustrous look that complements both high-gloss show engines and rugged, off-road powerplants while providing an extra layer of protection against the elements and corrosion.

Beyond its striking appearance, the EMPI Billet Pulley Half is a functional necessity for any performance-oriented VW build. Whether you are running a high-output 12V alternator or a standard 12V generator, maintaining proper belt tension and alignment is critical for charging efficiency and cooling fan performance. This pulley half works seamlessly with your existing internal pulley half and utilizes standard shims to adjust belt tension, ensuring that your 9.5mm or 10mm belt sits perfectly in the groove. It is the ideal solution for Dune Buggy owners, Baja Bug racers, and classic Beetle restorers who demand a component that can withstand high-RPM operation without the "wobble" often associated with aged or inferior aftermarket steel pulleys. When you install an EMPI billet component, you are investing in the longevity and reliability of your Volkswagen''s electrical system.

FITMENT

This billet alternator/generator pulley half is designed for 12V air-cooled Volkswagen engines and fits the following models and applications:

• VW Beetle (Standard & Super Beetle): 1967-1979 (All 12V models)
• VW Karmann Ghia: 1967-1974
• VW Bus / Type 2: 1967-1971 (Equipped with 1600cc upright engines)
• VW Type 3 (Squareback, Fastback, Notchback): 1967-1973
• VW Thing (Type 181): 1973-1974
• Custom Applications: Sand Rails, Dune Buggies, and Trikes utilizing a standard VW 12V alternator or generator setup.

SPECS

The following technical specifications ensure a perfect match for your high-performance VW engine project:

• Part Number: 18-1082-0
• Manufacturer: EMPI
• Material: 6061-T6 Billet Aluminum
• Finish: Black Anodized
• Pulley Diameter: Standard 105mm (Matches 12V factory specs)
• Application: Outer (Front) Pulley Half
• Compatibility: Works with both 12V Alternators and 12V Generators
• Hardware Requirement: Uses standard VW shims for belt adjustment
• Weight: Approximately 0.45 lbs

PRO TIPS

1. Mastering the Shim Stack

One of the most common mistakes when installing a new pulley half is failing to manage the shim stack correctly. In a Volkswagen air-cooled system, your belt tension is adjusted by moving shims from between the pulley halves to the outside of the front pulley half (under the nut). Always ensure you have a total of 10 shims in the assembly. If the belt is too loose, remove shims from between the halves and place them on the outside. If it is too tight, do the opposite. Never leave shims out of the assembly entirely, as this can lead to the pulley nut bottoming out before the pulley is actually tight, which will shear your woodruff key in seconds.

2. Checking Woodruff Key and Shaft Alignment

Before sliding your new EMPI Billet Pulley Half onto the alternator or generator shaft, inspect the woodruff key for any signs of shearing or wear. A loose woodruff key will allow the pulley to vibrate, which can eventually ruin the bore of your expensive new billet part. Also, ensure the inner pulley half is seated fully against the spacer. When tightening the 21mm or 19mm pulley nut, use a pulley holding tool rather than a screwdriver wedged into the fan, as the latter can bend the delicate internal fan blades and cause an out-of-balance condition that vibrates throughout the entire engine.

3. Maintaining the Anodized Finish

To keep your black anodized billet pulley looking brand new, avoid using harsh degreasers or acid-based wheel cleaners in your engine bay. These chemicals can react with the anodized coating and cause it to fade or turn a purple/bronze hue over time. Instead, use a mild automotive soap and water to clean the pulley. If you are running in a sandy environment like a dune or desert, periodically check the belt groove for debris. Aluminum is softer than steel, so keeping the belt surface clean will prevent premature wear on the pulley face and ensure your V-belt maintains maximum grip for optimal charging.
