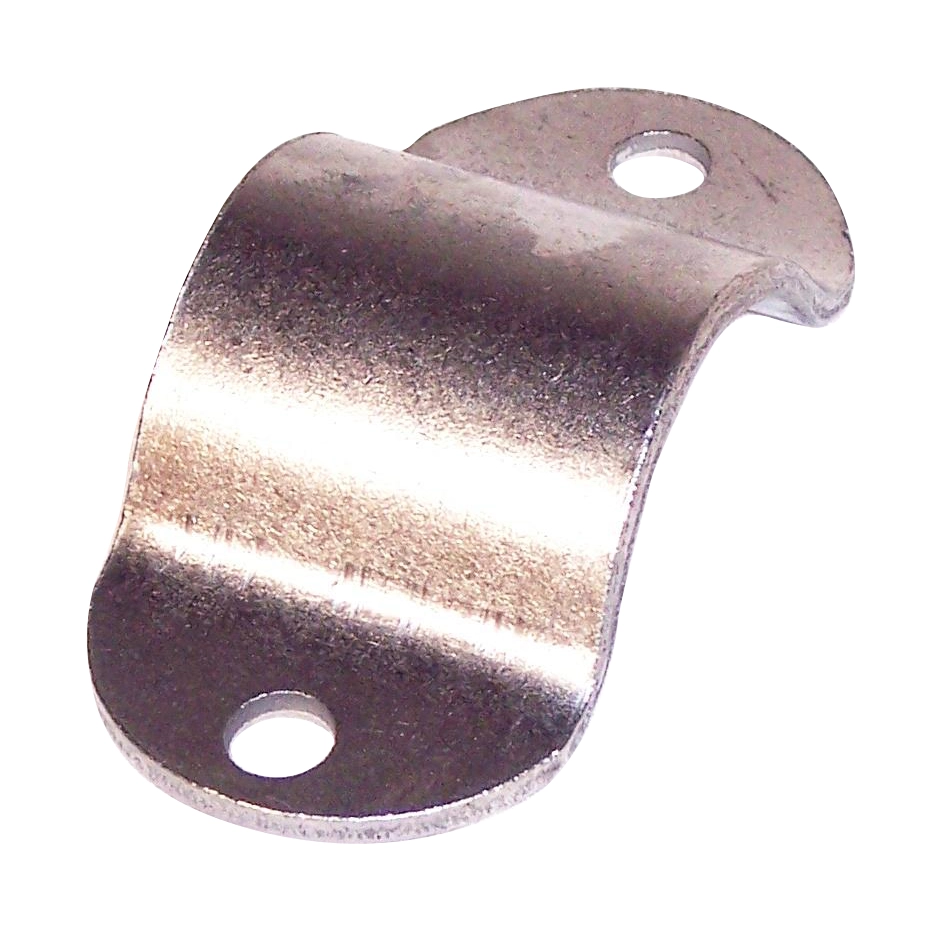

Axle Beam Clamp, Raw

OVERVIEW

When it comes to custom fabrication on your air-cooled Volkswagen, the details make the difference between a garage build and a professional-grade machine. The EMPI Raw Axle Beam Clamp is the quintessential component for builders who demand versatility and strength without the hassle of stripping away pre-applied finishes. Designed specifically for the standard 2-inch diameter tubes found on Type 1 front ends, these raw stamped steel brackets provide a clean slate for your welding projects. Whether you are mounting a steering stabilizer, securing a custom tow hook, or adding tabs for a hydraulic steering ram on a hardcore off-road sand rail, these clamps offer the structural integrity required to handle high-stress loads. Because they arrive in a raw, unfinished state, you can move straight to the welding bench, ensuring a deep, penetrating weld that isn''t compromised by burnt paint or powder coat residue.

Constructed from heavy-duty 3/16-inch thick steel, these clamps are engineered to survive the rigors of both the street and the dirt. At Appletree Automotive, we know that many of our customers are building Baja Bugs or Manx-style buggies that face extreme vibration and terrain; that is why we stock these EMPI FAB-1014 clamps. The precision stamping ensures a snug fit around the axle beam tube, preventing the "slop" often found in inferior universal hardware. By using a raw clamp, you have the freedom to fully customize your front suspension geometry and accessory mounting points, then finish the entire assembly with a uniform coat of paint or powder coating for a seamless, factory-custom look. This is an essential item for any fabricator''s bin, providing a reliable foundation for endless front-end modifications.

FITMENT

This axle beam clamp is designed to fit standard diameter front axle beam tubes (approximately 2 inches or 50mm) found on the following models:

• Volkswagen Type 1 Beetle: 1949 through 1977 (Standard models only; does not fit Super Beetle).
• Volkswagen Karmann Ghia: 1956 through 1974.
• Volkswagen Type 181 Thing: 1973 through 1974.
• VW Dune Buggies & Sand Rails: All models utilizing a standard VW Type 1 king-pin or ball-joint front beam.
• Baja Bugs: Ideal for custom front bumper and skid plate supports.

SPECS

The following technical specifications ensure you have the right part for your specific fabrication needs:

• Material: Heavy-Duty Cold Rolled Stamped Steel.
• Thickness: 3/16 of an inch (0.1875").
• Finish: Raw, Unfinished Steel (Ideal for welding).
• Inner Diameter: Designed for standard 2-inch (approx. 50mm) VW axle beam tubes.
• Manufacturer: EMPI.
• Part Number: FAB-1014 (Alternative Ref: AC430036).
• Quantity: Sold Individually (Sold Each).
• Application: Weld-on mounting point for tabs, hooks, and brackets.

PRO TIPS

1. Surface Preparation for Perfect Welds

Even though these clamps arrive in a raw state, they may have a light film of machine oil or "mill scale" from the manufacturing process to prevent flash rusting during transit. Before you strike an arc, it is imperative to clean the clamp and the axle beam tube thoroughly with a high-quality degreaser or acetone. For the best weld penetration, use a flap disc or wire wheel to take the mating surfaces down to bright, shiny metal. This ensures that your weld bead is free of contaminants, which is critical for safety-related components like tow hooks or steering mounts.

2. Check Clearances and Suspension Travel

Before final welding, always "mock up" your accessories with the clamp held in place by a heavy-duty C-clamp or a few small tack welds. It is vital to cycle your suspension through its full range of motionfrom full compression to full extensionand turn the steering from lock to lock. You must ensure that the clamp, and whatever you are welding to it, does not interfere with the tie rods, shock absorbers, or the travel of the trailing arms. Spending ten minutes checking clearances now will save you from having to grind off a finished weld later because of mechanical interference.

3. Prevent Post-Weld Corrosion

Because these clamps are raw steel, they will begin to develop surface rust almost immediately after being handled or exposed to moisture in the air. Once your welding is complete and the metal has cooled naturally (avoid quenching with water as it can embrittle the steel), clean the area again to remove welding slag and soot. Apply a high-quality zinc-rich primer or a chassis-specific paint immediately. If you are planning on powder coating the entire beam, ensure you plug any threaded holes in your tabs and mask off the inner bearing surfaces of the beam to maintain proper tolerances.
