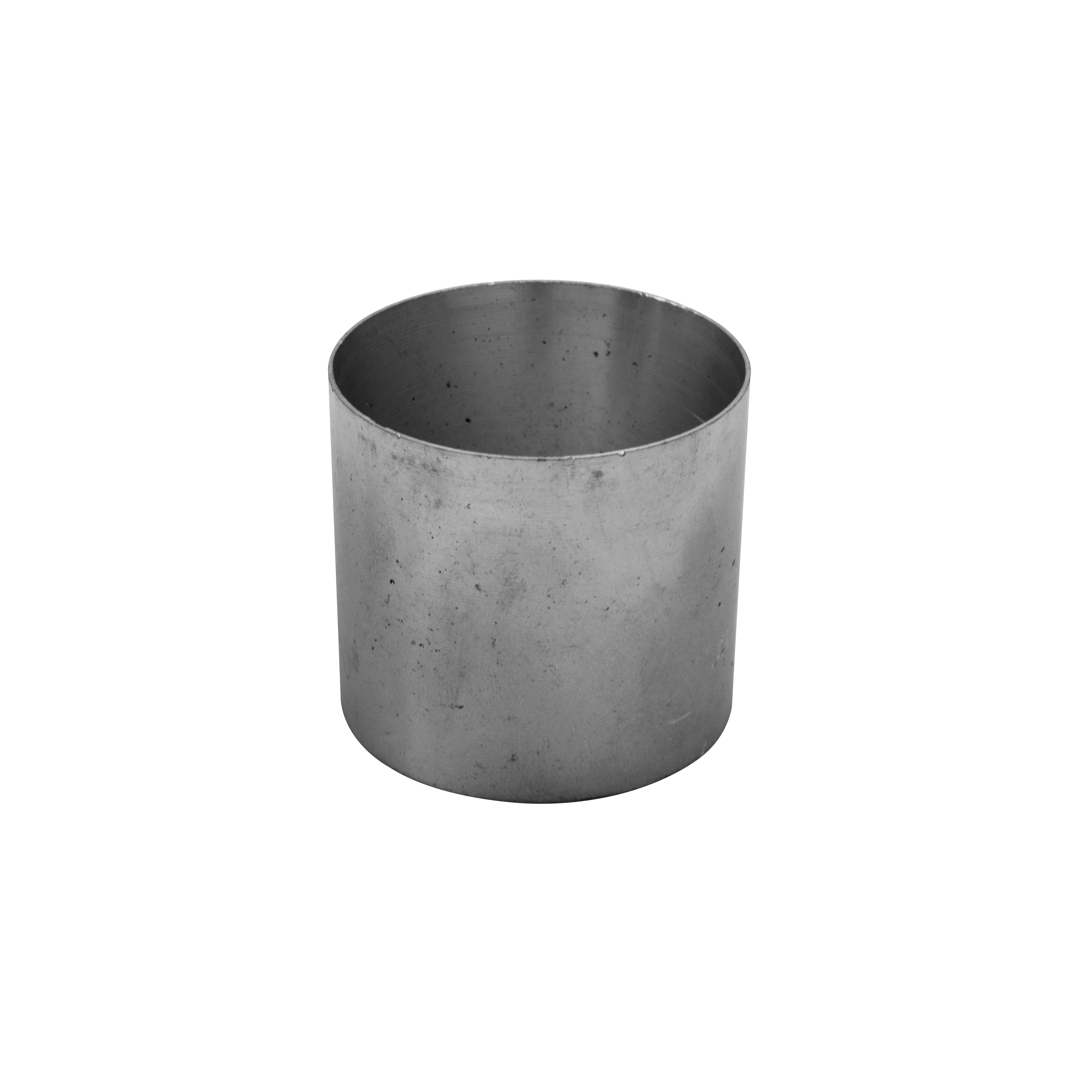

32mm Venturi, for 40 IDF Weber Carburetor

OVERVIEW

Precision is the name of the game when it comes to dialing in a high-performance air-cooled engine, and the 32mm Venturi for 40 IDF Weber carburetors is a critical component for achieving that perfect air-fuel atomization. As an air-cooled specialist, I cannot stress enough how often a poorly matched venturi (or choke) leads to a sluggish driving experience. This 32mm venturi is designed specifically for the 40mm IDF series, providing a bridge between low-end torque and top-end power. By narrowing the internal diameter of the carburetor barrel, this venturi increases air velocity, which in turn creates a stronger vacuum signal to pull fuel through the main circuit. This result is a crisp, immediate throttle response that makes your Beetle, Ghia, or Bus feel significantly more responsive in stop-and-go traffic and during spirited acceleration. If you are running 40 IDFs on a street-focused 1600cc to 1835cc engine, the 32mm size is often the "Goldilocks" choice for balancing drivability with performance.

Constructed with the high standards expected from EMPI, these venturis are engineered to withstand the constant airflow and heat cycles of a hard-working flat-four. Many enthusiasts make the mistake of running oversized venturis, thinking more air always equals more power, but that often leads to a "dead spot" or bogging in the mid-range because the air velocity isn''t high enough to draw fuel properly. Swapping to this 32mm unit allows you to tune your carburetor to your specific engine displacement and camshaft profile. Whether you are rebuilding a classic set of Italian Webers or fine-tuning a modern pair of EMPI HPMX carburetors, these replacement main venturis ensure your venturi effect is optimized. Sold individually, they are an essential part of any VW tuner''s toolkit, allowing for a level of modularity that makes the Weber IDF platform the industry standard for air-cooled Volkswagen performance.

FITMENT GUIDE

This 32mm venturi is designed for use with 40mm IDF-style carburetors. It is compatible with the following vehicles and engine configurations when equipped with dual 40 IDF or HPMX carburetors:

• Volkswagen Type 1: Beetle and Super Beetle (1946-1979)
• Volkswagen Type 2: Bus, Transporter, and Kombi (1950-1971)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (1961-1973)
• Volkswagen Karmann Ghia: (1955-1974)
• Volkswagen Type 181: Thing (1973-1974)
• Engine Displacements: Optimized for 1600cc, 1641cc, 1776cc, and 1835cc engines.
• Carburetor Models: Weber 40 IDF, EMPI 40 HPMX, and various 40mm IDF clones.

TECHNICAL SPECIFICATIONS

Detailed specifications for part number 43-5608-0 ensure you have the exact component for your tuning needs:

• Internal Diameter: 32mm (Effective Choke Size)
• Compatible Carburetor Body: 40mm IDF / HPMX
• Material: Precision-cast zinc alloy for thermal stability and smooth airflow
• Component Type: Main Venturi / Choke
• Finish: Machined mating surfaces for a leak-free fit
• Quantity: Sold individually (Two required per carburetor, four for a dual-carb setup)
• Part Manufacturer: EMPI
• Cross Reference: Weber 72116.320 / 43-5608-0

PRO TIPS FROM THE SHOP

Tip 1: The Velocity Rule of Thumb. When selecting your venturi size, remember that the venturi should generally be 2mm to 4mm smaller than the intake valve size for a street-driven car. If you are running a 1776cc engine with 35.5mm intake valves, this 32mm venturi is nearly perfect. It provides enough airflow for the engine to breathe at 5,500 RPM while maintaining the high air velocity needed to keep the car from stumbling when you floor it at 2,000 RPM. Always prioritize velocity over raw volume for a street engine; it makes the car much more "flickable" and fun to drive in real-world conditions.

Tip 2: Secure Your Set Screws. When installing these venturis, pay close attention to the set screws on the side of the carburetor body. These screws have a pointed end that seats into a small indentation or against the side of the venturi to hold it in place. If the venturi is loose, it can vibrate, leading to air leaks or even physical damage to the carburetor bore. I always recommend using a tiny drop of blue (medium strength) threadlocker on the set screw and ensuring the venturi is fully seated against the bottom ledge before tightening. Don''t over-torque them, as the carburetor bodies are made of soft alloy and can strip easily.

Tip 3: Re-Jetting is Mandatory. Changing your venturi size fundamentally changes the "signal" the carburetor sees. If you are stepping up from a 28mm venturi to this 32mm unit, your engine will now be drawing in more air, which means your existing main jets will likely be too lean. As a starting point, you generally multiply the venturi size by 4 to get your main jet size (32 x 4 = 128). You''ll likely want to start with a 130 or 135 main jet and a 180 to 200 air correction jet. Always use a wideband O2 sensor or check your spark plugs immediately after a venturi change to ensure you aren''t running dangerously lean under load.
