Weber IDF Air Jet 110

OVERVIEW

Precision tuning is the heartbeat of a high-performance air-cooled engine, and the EMPI Weber IDF Air Jet 110 is a critical component for those looking to achieve the perfect air-fuel stoichiometry. In the world of dual Weber IDF setups, the air jet acts as the fine-tuner for the high-speed circuit, governing exactly how much air is bled into the emulsion tube to atomize the fuel drawn through the main jet. If you have ever experienced a "flat spot" during hard acceleration or felt your Type 1 or Type 4 engine struggling to breathe at higher RPMs, your air jet selection is likely the culprit. This 110-sized jet provides the restrictive air bleed necessary for specific high-performance configurations, ensuring that your fuel curve remains stable even as manifold vacuum changes. Crafted from high-quality brass to exacting tolerances, these EMPI jets ensure that every cylinder is receiving a mirror-image mixture, which is vital for engine longevity and consistent power delivery.

Choosing the right air jet is often considered a "black art" by many VW enthusiasts, but it is actually a scientific necessity for anyone running a modified Beetle, Ghia, or Bus. The 110 air jet is specifically designed to work in conjunction with your main jets and emulsion tubes to prevent the mixture from becoming too lean or too rich as the engine speeds up. Because the Weber IDF is the gold standard for performance air-cooled Volkswagens, having a complete array of genuine-spec EMPI jets allows you to compensate for changes in altitude, ambient temperature, and engine displacement. Whether you are dialing in a daily-driven 1600cc or a track-ready 2276cc powerhouse, the 77401.110 air jet offers the precision you need to stop guessing and start winning. Don''t settle for "close enough" when it comes to your carburetor calibration; use the components that master engine builders trust to keep their cylinder head temperatures in check and their horsepower figures climbing.

FITMENT

This Weber IDF Air Jet is designed for use with genuine Weber IDF carburetors and EMPI HPMX series carburetors. It is a universal tuning component for the following air-cooled VW models equipped with these carburetor upgrades:

• Volkswagen Beetle: 1946-1977 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956-1974
• Volkswagen Bus / Transporter: 1950-1979 (Type 2)
• Volkswagen Type 3: 1961-1973 (Notchback, Squareback, Fastback)
• Volkswagen Thing: 1973-1974 (Type 181)
• Custom Applications: Sand rails, Dune buggies, and Trikes using Type 1, Type 2, or Type 4 upright engine configurations.

SPECS

The following technical specifications ensure compatibility with your Weber IDF tuning kit:

• Brand: EMPI
• Part Number: 77401.110
• Jet Size: 110 (.110mm)
• Carburetor Compatibility: Weber IDF / EMPI HPMX
• Material: High-Grade Machined Brass
• Application: High-speed air bleed circuit
• Quantity: Sold Individually
• Thread Type: Precision-tapered for secure seating within the jet stack

PRO TIPS

1. Understanding the Inverse Relationship

In the world of Weber tuning, it is vital to remember that the air jet works inversely compared to the main jet. While a larger main jet makes the mixture richer, a larger air jet actually makes the mixture leaner at high RPMs because it allows more air to enter the emulsion tube. If your engine is "blubbering" or puffing black smoke at the top of third gear, you might need to go to a larger air jet. Conversely, if you are running the 110 jet and finding a lean pop at high RPM, you may need to stay in this smaller range to keep the fuel density high. Always track your changes in a logbook so you don''t lose your baseline settings.

2. Never Use Wire Cleaners

When maintenance time rolls around, never, under any circumstances, use a metal wire or a welding tip cleaner to clear a clogged air jet. These brass components are machined to tolerances measured in microns. Even a tiny scratch from a steel wire can alter the flow characteristics of the jet, effectively changing its size and ruining your synchronization between carburetors. Instead, use a dedicated aerosol carburetor cleaner and high-pressure compressed air to blow out any debris. If the jet is physically damaged or corroded, it is always cheaper to buy a new EMPI jet than to risk a melted piston from a lean-running cylinder.

3. The Jet Stack Sequence

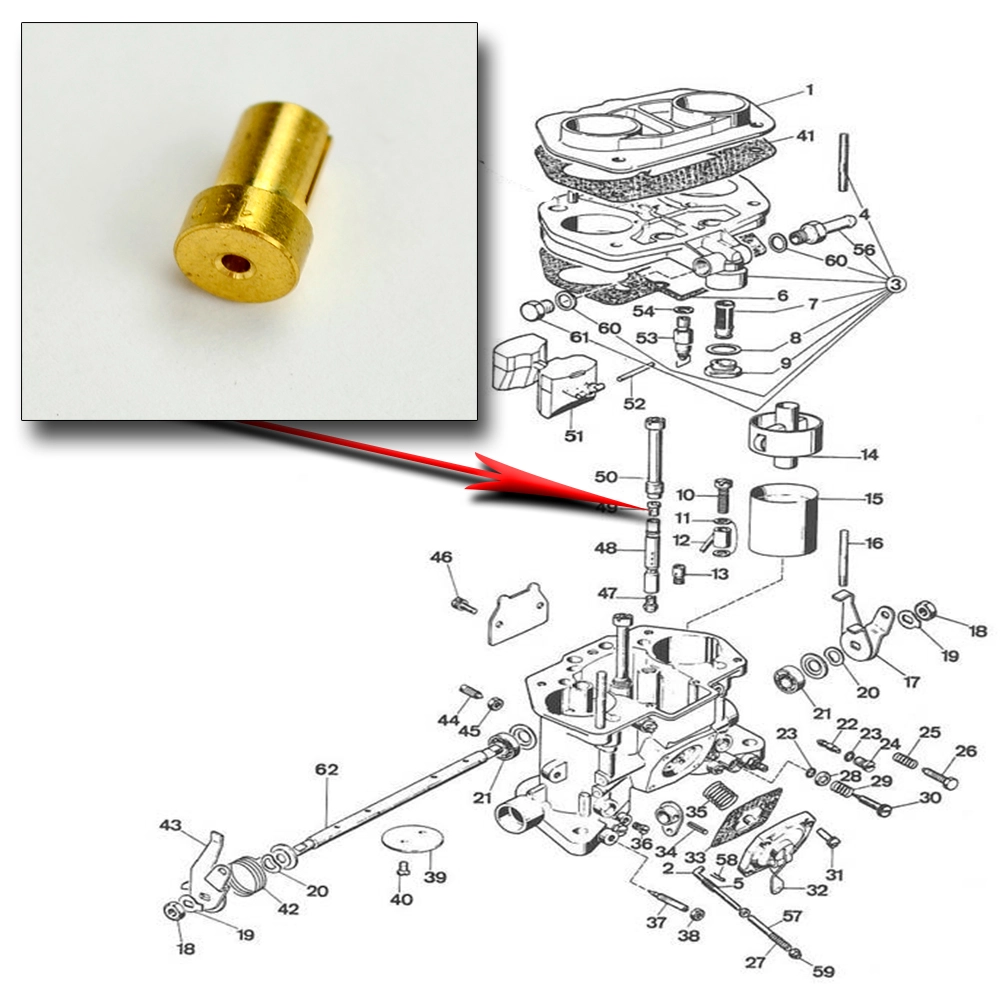

When installing your new 110 air jets, pay close attention to the assembly order of the jet stack. The air jet sits at the very top of the stack, locking the emulsion tube in place, which in turn sits on top of the main jet. Ensure that the seating surfaces are clean and that the stack is snug, but do not over-tighten. Over-tightening can distort the brass or lead to "galling" in the carburetor body, making future tuning sessions a nightmare. A drop of light oil on the threads can help if you are working with a brand-new carburetor body, but usually, a dry, clean installation is best for consistent performance.
