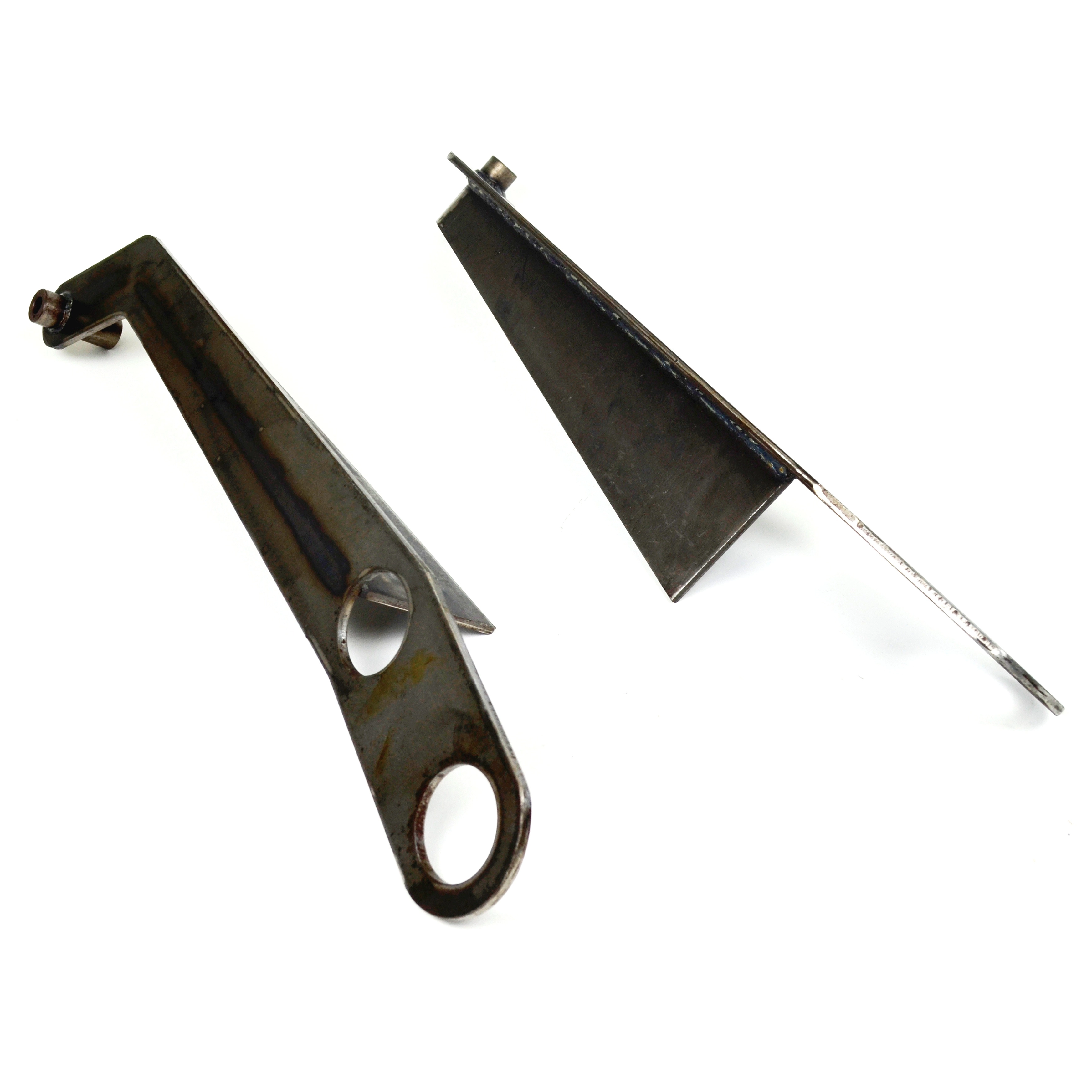

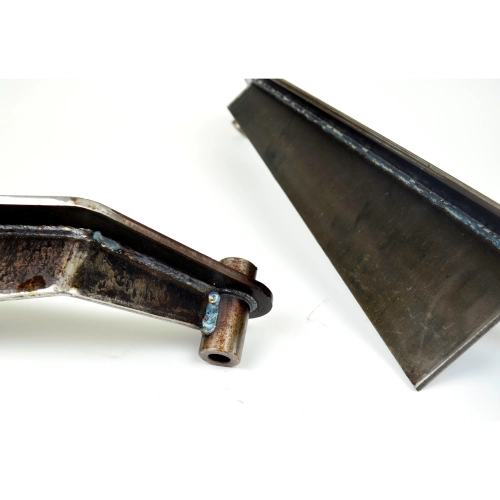

Shock Tower Kit, 10 Taller Shock Towers for Coil Shocks

OVERVIEW

Elevate your off-road performance to professional levels with the Latest Rage 10-Inch Taller Shock Tower Kit. Designed for the serious enthusiast who demands maximum suspension articulation, these towers are the definitive solution for integrating long-travel coilover shocks into your air-cooled Volkswagen front end. By moving the upper shock mounting point significantly higher than the factory position, you unlock the ability to run shocks with a much longer stroke. This is essential for soaking up harsh desert whoops, navigating technical rock sections, or simply ensuring your Baja Bug or Sand Rail maintains tire contact and stability over uneven terrain. These towers aren''t just about height; they are about providing the structural integrity needed to handle the increased leverage and force generated by high-performance coilover systems.

Constructed from heavy-duty, thick-gauge steel, these towers are engineered to be welded directly to your stock or aftermarket axle beam. This weld-on design ensures a rigid, permanent bond that can withstand the rigors of aggressive off-road driving without the flex or failure points associated with lesser bolt-on components. Whether you are building a dedicated woods buggy, a competition-ready Baja, or a high-speed sand rail, these 10-inch taller towers provide the necessary clearance for coil springs to cycle fully without binding. When you choose Latest Rage parts from Appletree Automotive, you are investing in decades of off-road racing heritage and proven durability that keeps your VW on the trail and out of the shop.

FITMENT

• VW Type 1 Beetle: 1950 through 1977 (Baja Conversions)
• VW Karmann Ghia: All years (Custom Off-Road Builds)
• Dune Buggies: All Manx-style and fiberglass bodies using a standard VW beam
• Sand Rails & Tube Chassis: Any custom frame utilizing a VW-style front axle beam
• Axle Beam Compatibility: Fits both King Pin and Ball Joint front axle beams

SPECS

• Product Name: Shock Tower Kit, 10 Inches Taller
• Brand: Latest Rage
• Part Number: AC430005-10
• Material: High-strength structural steel
• Finish: Raw steel (Requires painting or powder coating after welding)
• Height: 10 inches taller than the standard factory shock tower
• Installation Type: Weld-on (Requires removal of original towers)
• Application: Specifically designed for coilover shocks with extended travel
• Quantity: Sold as a pair (Includes left and right towers)

PRO TIPS

Pro Tip 1: Surface Preparation is Paramount. Before you even think about firing up the welder, you must strip the axle beam down to bare, shiny metal where the new towers will be attached. Use a flap disc or a wire wheel to remove all paint, rust, and grease. Because these towers support the entire weight of the front end when using coilovers, you need 100% weld penetration. Ensure your welding machine is set for the thickness of the steel to prevent "cold" welds that could crack under the stress of a hard landing.

Pro Tip 2: Cycle Your Suspension Before Final Welding. Always "tack weld" the towers in place first, then install your shocks and arms to cycle the suspension through its full range of motion. Check for any interference between the coil springs and the body, or the shocks and the trailing arms. You want to ensure that the shock doesn''t "bottom out" or "top out" before the suspension hits its physical limits. Adjust the angle of the towers during this tack-welded phase to optimize the shock geometry for the smoothest possible dampening.

Pro Tip 3: Don''t Forget the Reinforcement. While these 10-inch towers are incredibly stout, adding a "shock tower brace" or tying them into your roll cage is highly recommended for extreme off-roading. The added height of the tower increases the leverage applied to the axle beam tubes. By connecting the two towers with a cross-brace, you significantly reduce beam flex and prevent the towers from "walking" or bending inward during high-impact situations. This small addition will drastically extend the life of your front-end components and improve steering precision.
