Module Kit Series 9000

OVERVIEW

Precision is the lifeline of any high-performance air-cooled engine, especially when you are pushing the boundaries of physics in a high-revving drag bug or a dual-carbureted sand rail. The MSD Ignition Module Kit Series 9000 is engineered for the serious racer who demands absolute control over their engine''s RPM ceiling. In the world of Volkswagen performance, where a missed shift or a broken fan belt can lead to catastrophic internal failure in a matter of milliseconds, having a reliable rev limiter isn''t just an upgradeit is insurance for your investment. These modules provide the exact electrical resistance needed to signal your MSD ignition box to cut spark, ensuring that your expensive rotating assembly stays within its safe operating window even during the heat of competition.

This specific kit, the MSD8749, covers the elite 9,000 to 9,800 RPM range, making it the go-to choice for radical, small-displacement screamers or professional-grade competition engines. Each kit includes five individual modules spaced in 200 RPM increments, allowing you to fine-tune your launch or top-end limit with surgical precision. Unlike cheap dial-type limiters that can drift due to vibration or heat soak, these plug-in modules utilize high-quality internal resistors that offer a consistent, non-wavering signal. Whether you are running an MSD 6AL, 7AL-2, or a dedicated RPM-activated switch, these modules deliver the "snap-action" response that has made MSD the industry standard in the air-cooled community for decades.

FITMENT

While these modules are universal to MSD ignition systems, they are most commonly utilized in the following high-performance Volkswagen and off-road applications:

• Volkswagen Type 1: Beetle and Bug (Drag Racing and Pro-Street configurations).
• Volkswagen Type 2: Bus, Transporter, and Kombi (High-performance competition builds).
• Volkswagen Type 3: Fastback, Squareback, and Notchback (Performance-tuned engines).
• Karmann Ghia: Modified street and strip applications.
• Off-Road: Purpose-built Sand Rails, Dune Buggies, and Baja Bugs equipped with MSD boxes.
• Ignition Compatibility: Works with MSD 6-Series, 7-Series, 8-Series, and 10-Series Ignition Boxes, as well as RPM-activated switches and shift light controllers.

SPECS

• Product Brand: MSD Ignition.
• Part Number: MSD8749.
• RPM Range: 9,000 RPM to 9,800 RPM.
• Module Increments: 200 RPM steps.

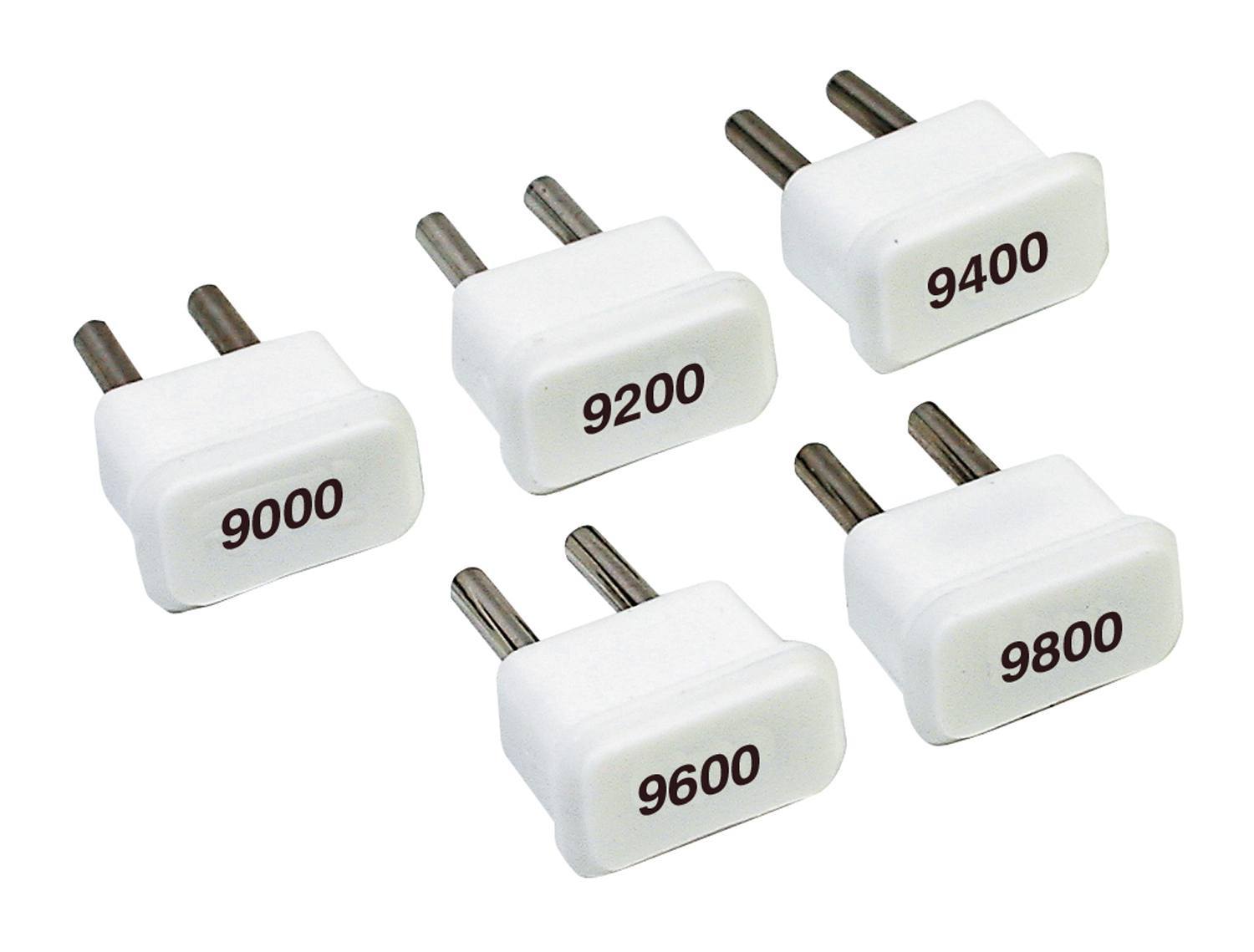

• Kit Contents: 9000, 9200, 9400, 9600, and 9800 RPM modules.
• Quantity: 5 Modules per kit.
• Connector Type: Standard MSD 2-pin plug-in design.
• Accuracy Tolerance: Within 1 percent of the rated RPM.
• Construction: Durable molded housing with corrosion-resistant pins.

PRO TIPS

1. Seat the Pins Properly for Vibration Resistance

In a vibrating air-cooled engine environment, especially in off-road or high-RPM drag racing, electrical connectivity is everything. When installing your 9000-series module, ensure that the pins are fully seated into the ignition box or RPM switch. We recommend applying a tiny amount of high-quality dielectric grease to the pins before insertion. This not only prevents moisture from corroding the contact points but also helps dampen the micro-vibrations that can lead to "intermittent rev-limiting" or "spark scatter" at high speeds. If the module feels loose, the female side of the connector may need to be gently tightened to maintain a robust mechanical and electrical bond.

2. Match Your Limiter to Your Valve Train Capabilities

Just because you have a 9,800 RPM module doesn''t mean your engine should see it. As an air-cooled specialist, I always tell customers to set their rev limit at least 200-300 RPM below the point of "valve float." If you are running heavy-duty dual valve springs and titanium retainers, you might be safe in the mid-9000s, but always verify your cam manufacturer''s specs first. Using the 200 RPM increments in this kit allows you to start low and "walk" the RPM up as you gain confidence in your engine''s harmonic balance and oiling system capability at high velocity.

3. Periodic Inspection of Module Integrity

While MSD modules are incredibly durable, they are subject to the harsh heat cycles found in a VW engine bay. Periodically inspect the plastic housing for signs of cracking or heat distortion. If you notice your engine is hitting the limiter earlier than it should, or if the engine "stumbles" before reaching the target RPM, swap the module with another one from the kit to test. Electrical resistance can change slightly over years of extreme heat exposure; keeping a spare set in your track-side toolbox ensures you are never sidelined by a simple component failure during an important race weekend.
