Module Kit Series 8000

OVERVIEW

When you are pushing a high-performance air-cooled Volkswagen engine into the stratosphere of 8,000+ RPM, precision isn''t just a luxuryit is a survival requirement. The MSD Ignition Module Kit Series 8000 (Part # MSD8748) is the gold standard for racers and performance enthusiasts who demand absolute control over their engine''s maximum rotational speed. These modules are designed to plug directly into your MSD ignition box, whether you are running a 6AL, 7AL-2, or a specialized rev control unit. In the world of air-cooled drag racing and high-output sand rails, a missed shift or a broken drivetrain component can lead to an instantaneous over-rev that destroys expensive cylinder heads and sends rods through the case. By installing these high-precision modules, you are providing your powerplant with a fail-safe electronic ceiling that reacts faster than any human foot ever could.

Each kit in the 8000 series is engineered with legendary MSD reliability, ensuring that the ignition cut-off is crisp, consistent, and accurate to within a fraction of a percent. This specific kit covers the critical 8,000 to 8,800 RPM range in 200 RPM increments, allowing you to fine-tune your engine''s limit based on your specific cam profile, valve spring tension, and rotating assembly balance. Whether you are dialing in a naturally aspirated 2332cc monster for the drag strip or ensuring your turbocharged Type 1 engine stays within its power band without floating the valves, these modules provide the peace of mind you need to keep your foot planted. At Appletree Automotive, we know that air-cooled engines are an investment of time and passion; don''t leave your engine''s safety to chance when you can have the industry''s most trusted rev-limiting technology at your fingertips.

FITMENT

This MSD Module Kit is a universal performance component designed for use with MSD Ignition Controls equipped with 2-pin RPM limit sockets. It is commonly utilized in the following air-cooled Volkswagen applications:

• VW Beetle (Type 1): All years equipped with MSD 6-Series, 7-Series, or 8-Series ignition boxes.
• VW Karmann Ghia: High-performance street and strip builds using MSD electronic ignitions.
• VW Bus / Type 2: Competition-spec Transporters and early split-window race builds.
• VW Type 3 (Squareback, Fastback, Notchback): Performance-tuned engines requiring precise RPM management.
• VW Thing (Type 181): Off-road and competition builds utilizing MSD rev-limiting hardware.
• Dune Buggies & Sand Rails: Essential for protecting high-revving engines in sand drag and recreational environments.
• Custom Air-Cooled Dragsters: Compatible with MSD 7AL, 8, and 10 series ignition units.

SPECS

• Manufacturer: MSD Ignition
• Part Number: 8748
• Series: 8000 Series RPM Module Kit
• RPM Range: 8,000 RPM to 8,800 RPM

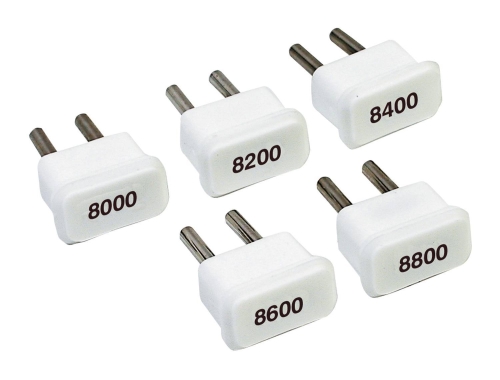

• Included Modules: 8,000, 8,200, 8,400, 8,600, and 8,800 RPM
• Increment Interval: 200 RPM steps for precise tuning
• Connector Type: Standard MSD 2-pin male plug
• Quantity: 5 Modules per individual kit
• Housing Material: Durable, vibration-resistant molded plastic
• Compatibility: MSD 6, 7, 8, and 10 Series Ignition Controls and RPM Activated Switches

PRO TIPS

Tip 1: Match Your Limit to Your Valve Train Capability

Before plugging in the 8,800 RPM module, you must ensure your air-cooled VW''s valve train is up to the task. Most street-performance dual valve springs begin to lose control (valve float) long before reaching 8,000 RPM. Always set your MSD rev limiter approximately 200-300 RPM below the point where your engine builder expects valve float to occur. This protects your titanium retainers and high-lift rockers from the catastrophic harmonic frequencies that occur when the valves no longer follow the cam profile. If you haven''t verified your spring seat pressure recently, start with the 8,000 RPM chip and work your way up only after verifying clean power delivery on a dyno.

Tip 2: Maintenance of the Module Pins and Sockets

In the harsh, vibrating environment of a VW engine bay or a sand rail chassis, the connection between the module and the ignition box is critical. Periodically remove the module and inspect the two pins for any signs of corrosion or "fretting"a type of wear caused by vibration. We recommend applying a tiny amount of high-quality dielectric grease to the pins before insertion. This prevents moisture intrusion and ensures a perfect electrical connection. A loose or dirty connection can cause "RPM fluttering," where the ignition box incorrectly senses the resistance and triggers the limiter prematurely, which can lead to frustrating diagnostic hurdles during a race.

Tip 3: Using Modules for Staged Rev Limiting

Many advanced MSD setups allow for multiple rev limits, such as a "Two-Step" for launching and a "High-Side" for engine protection. Use these 8000-series modules for your top-end safety net, but don''t forget that you can also use them in RPM-activated switches to trigger external components like shift lights or nitrous solenoids. When using these chips in a launch-control setting, remember that air-cooled engines heat up rapidly under a stutter-box limiter. Limit your time on the two-step to the absolute minimum required to stage the car, as the unburnt fuel and rapid ignition interruptions can significantly increase cylinder head temperatures in a matter of seconds.
