Module Kit Series 7000

OVERVIEW

Precision is the lifeblood of any high-performance air-cooled Volkswagen engine, especially when you are pushing the limits on the drag strip or through the dunes. The MSD Ignition Module Kit Series 7000 (MSD8747) is an absolute necessity for any enthusiast running an MSD ignition control box that utilizes plug-in RPM modules. In the world of VW performance, where we often build high-revving Type 1 or Type 4 engines with aggressive valve trains, an accidental over-rev can lead to catastrophic engine failure in a heartbeat. This kit provides a robust safety net, ensuring that your ignition system cuts out exactly when it should, protecting your investment from missed shifts, drivetrain breakage, or sudden losses of traction. These modules are built with high-tolerance components to ensure that the RPM limit you select is the exact limit you get, providing the peace of mind required to drive your Beetle or Sand Rail to its maximum potential.

The Series 7000 kit is specifically designed for engines operating in the upper echelons of the RPM band, covering a range from 7000 to 7800 RPM in 200 RPM increments. This level of granularity is perfect for fine-tuning your engine''s performance based on your specific cam profile, head flow characteristics, and spring pressure. At Appletree Auto, we have seen countless engines saved by these simple yet effective plug-in chips. Whether you are dialing in your launch control on a 6AL box or setting the top-end limit on a 7-Series ignition, these modules offer a plug-and-play solution that is far more reliable than old-school mechanical governors. Each module is color-coded and clearly marked, making it easy to swap them out in the staging lanes or out in the field when conditions change. Don''t leave your engine''s survival to chance; equip your ignition system with the professional-grade accuracy that only MSD can provide.

FITMENT

This MSD RPM Module Kit is compatible with any MSD Ignition Control or RPM Switch that accepts standard 2-pin plug-in modules. This includes, but is not limited to, the following applications commonly found in the air-cooled VW community:

• Volkswagen Beetle (All Years): Equipped with MSD 6AL, 6AL-2, 7AL-2, or 8-Series ignition boxes.
• Volkswagen Karmann Ghia: High-performance street and strip builds using MSD RPM-activated switches.
• Volkswagen Bus / Transporter (Type 2): Modified engines requiring precise rev-limiting during spirited driving.
• Volkswagen Type 3 (Squareback, Fastback, Notchback): Performance builds utilizing aftermarket MSD electronic ignitions.
• Dune Buggies & Sand Rails: Essential for off-road racing where wheel spin can cause sudden RPM spikes.
• Custom VW Drag Rails: Perfect for setting precise shift points and over-rev protection in competition environments.
• MSD Components: Fits MSD 6, 7, and 8 Series Ignition Controls, and all MSD RPM Activated Switches.

SPECS

• Product Brand: MSD Ignition
• Part Number: 8747
• Module Series: 7000 Series
• RPM Range: 7000 RPM to 7800 RPM
• Incremental Steps: 200 RPM per module

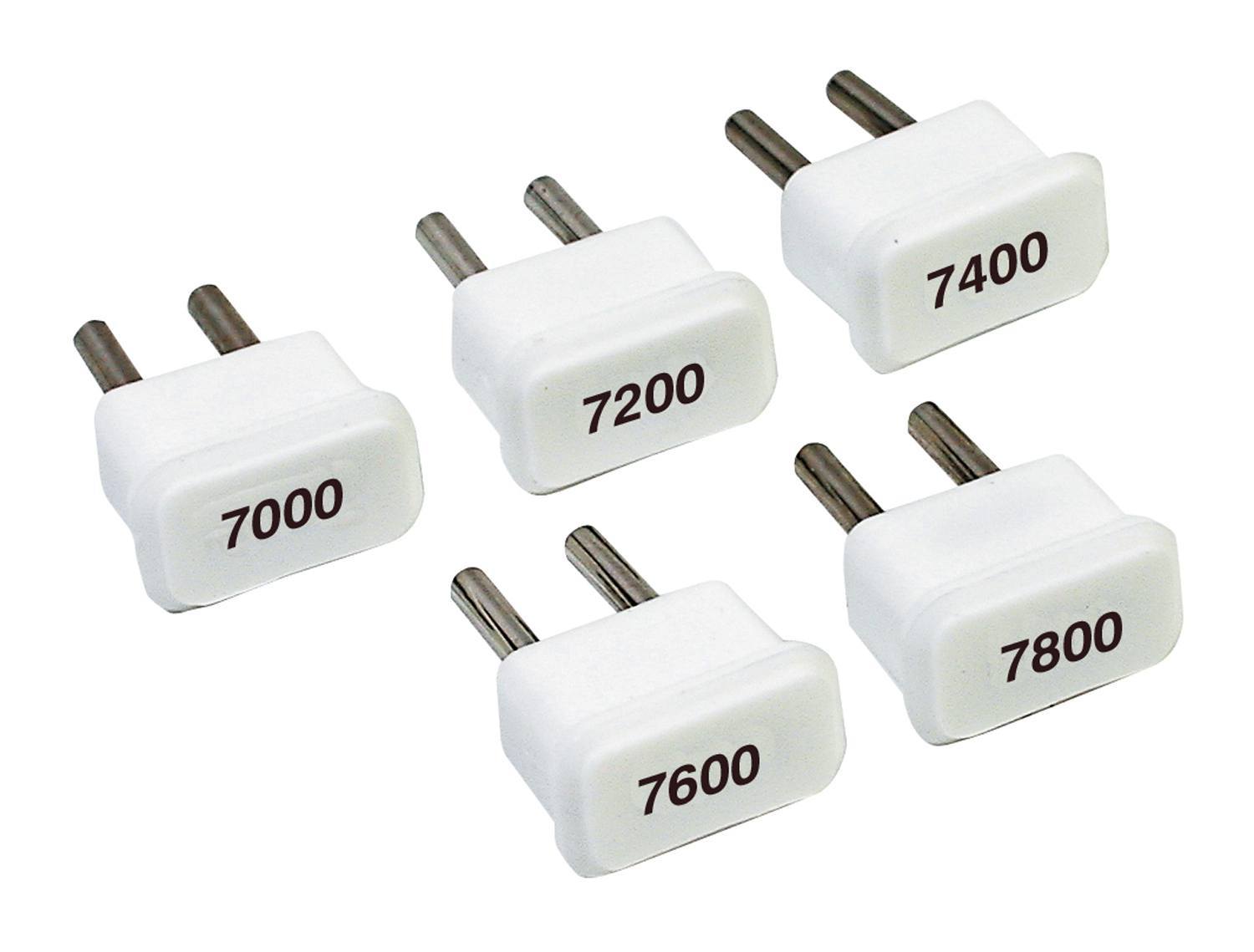

• Total Modules Included: 5 Individual Modules
• Specific RPM Values: 7000, 7200, 7400, 7600, 7800 RPM
• Connector Type: Standard MSD 2-Pin Male Plug
• Accuracy Rating: Within +/- 1% of the rated RPM value
• Housing Material: High-impact molded plastic for vibration resistance
• Internal Components: Precision-calibrated resistors for consistent signal interruption

PRO TIPS

1. Protect Your Pins and Ports

When swapping modules in and out of your ignition box, it is vital to ensure the pins stay straight and the port remains clean. In the dusty environments where many air-cooled Volkswagens livelike the Mojave or at the local dirt trackfine grit can get inside the female receiver of the ignition box. Before installing a new module from the 7000 series kit, give the port a quick blast of compressed air or electronic contact cleaner. We also recommend a very light coating of dielectric grease on the module pins to prevent corrosion and ensure a perfect electrical connection, which prevents "RPM flutter" or inconsistent limiting.

2. Always Build in a Safety Buffer

One of the biggest mistakes we see in the shop is a builder setting the rev limit exactly at the engine''s mechanical breaking point. If your valve springs are rated for a maximum of 7500 RPM before valve float occurs, do not use the 7600 or 7800 RPM modules. Instead, use the 7200 or 7400 RPM chip. This "buffer zone" accounts for the split-second latency in the ignition system and the momentum of the rotating assembly. By setting your MSD limit slightly below your engine''s absolute physical ceiling, you ensure that the ignition cut happens in time to save the valves from meeting the pistons during a hard pull.

3. Use with an RPM Switch for Advanced Features

While these modules are most commonly used in the rev-limiter port of a 6AL box, they are also incredibly useful when paired with an MSD RPM Activated Switch. For high-performance VW engines, you can use these chips to trigger external accessories like a shift light, an electric cooling fan, or even a nitrous solenoid. For example, if you want your shift light to trigger exactly at 7400 RPM, simply plug the 7400 module into your RPM switch. This allows you to keep your eyes on the track while the MSD electronics handle the precision timing of your gear changes, making you
