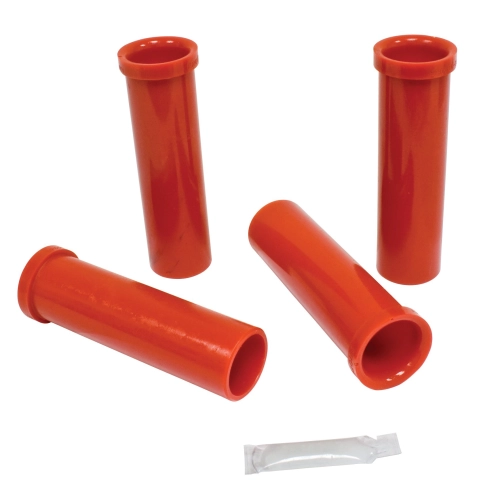

King Pin Aluminum Beam Bushing Kit, 4 Pack

OVERVIEW

When you are building a high-performance front end for your air-cooled Volkswagen, the interface between the torsion arms and the beam is absolutely critical to your vehicle''s handling characteristics. Traditional needle bearings were the factory standard for decades, but when you transition to a lightweight, high-strength aftermarket aluminum beam, you need a bushing solution that can withstand the unique demands of off-road racing or precision street driving. This BUGPACK King Pin Aluminum Beam Bushing Kit is manufactured by Prothane, the undisputed industry leader in high-durometer polyurethane components. These bushings are engineered specifically to replace the fragile needle bearings found in 45mm aluminum beams, providing a significantly larger surface area for load distribution. This results in a front end that feels remarkably tighter, tracks straighter, and eliminates the annoying "slop" and vibration often associated with worn-out factory-style components.

Whether you are piloting a dedicated sand rail through the dunes or restoring a classic King Pin Beetle with modern performance upgrades, these bushings offer unparalleled longevity and resilience. Unlike metal needle bearings that can pit, rust, or even shatter under the heavy impact of off-road terrain, these Prothane bushings are virtually indestructible and impervious to most automotive chemicals, oils, and road grime. This comprehensive 4-pack kit includes all the components necessary to service both the upper and lower tubes on both sides of your front beam, ensuring a complete and professional refresh of your suspension geometry. By choosing the original BUGPACK brand, you are investing in decades of VW off-road heritage and engineering excellence, ensuring that your torsion arms rotate smoothly while maintaining the rigid alignment necessary for high-speed stability and safety.

FITMENT

This bushing kit is designed specifically for King Pin front ends utilizing 45mm aftermarket aluminum beams. Please verify your beam tube diameter before ordering.

• VW Beetle: 1949 through 1965 (equipped with 45mm Aluminum King Pin Beam)
• VW Karmann Ghia: 1956 through 1965 (equipped with 45mm Aluminum King Pin Beam)
• Custom Sand Rails: All models using a 45mm Aluminum King Pin front beam
• Dune Buggies & Manx Styles: All models using a 45mm Aluminum King Pin front beam
• Note: Does NOT fit standard steel beams or Ball Joint style front ends

SPECS

• Brand: BUGPACK (Original PROTHANE Manufacture)
• Part Number: B658410
• Material: High-Durometer Performance Polyurethane
• Application: King Pin Suspension Systems
• Beam Type: Aluminum Beams Only
• Tube Diameter: 45mm
• Quantity: 4-Piece Kit (Complete for one front beam)
• Function: Replaces both Inner and Outer Needle Bearings
• Color: Red Performance Finish
• Resistance: Resistant to oil, grease, and environmental degradation

PRO TIPS

1. Proper Lubrication is Non-Negotiable

When installing these Prothane bushings, you must use a high-quality, water-resistant synthetic grease. Polyurethane bushings are famous for their performance, but if they are installed dry, they will squeak and cause premature wear on your torsion arm surfaces. We recommend a silicone-based grease specifically designed for urethane. Apply a generous coating to the inner diameter of the bushing and the outer surface of the torsion arm where it makes contact. Don''t rely on the grease fittings alone during the initial press-fit; manual pre-lubrication ensures that the entire contact patch is protected from the very first mile.

2. Prepare Your Torsion Arm Surfaces

Before you slide your torsion arms into these new BUGPACK bushings, take the time to inspect the bearing surfaces of the arms themselves. Over years of use with old needle bearings, the arms can develop pits, scoring, or "races" where the old rollers sat. Use a fine-grit emery cloth or sandpaper to polish these surfaces until they are smooth to the touch. If the arms are deeply grooved, they may need to be replaced. Installing new bushings on a rough or damaged torsion arm will significantly reduce the lifespan of the polyurethane and can lead to binding in the suspension travel.

3. The Secret to a Perfect Press-Fit

Installing bushings into an aluminum beam requires a steady hand and the right tools. You should never use a metal hammer directly on the bushing, as this can deform the edges and make torsion arm insertion impossible. Use a bushing driver or a large socket that matches the outer diameter of the bushing to ensure it is driven in perfectly straight. If the bushing starts to cock to one side, stop immediately, remove it, and start over. Ensuring they are seated fully against the internal shoulder of the beam tube is critical for maintaining the correct track width and preventing side-to-side play in your front suspension assembly.
