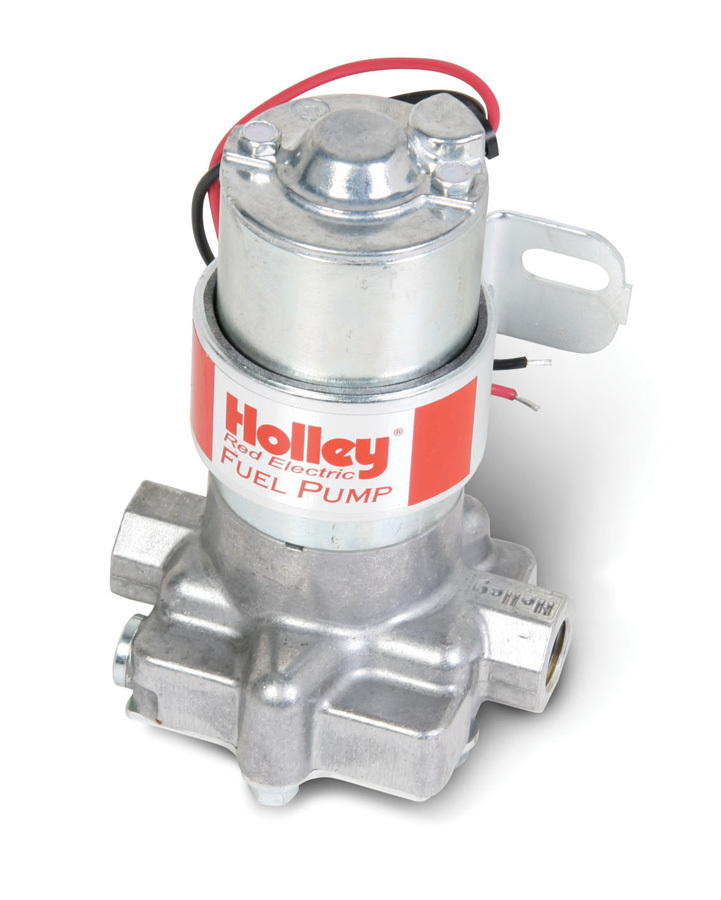

Holley Red Electric Fuel Pump, 7 Lb

OVERVIEW

When you''re pushing a high-performance air-cooled engine to its limits, the last thing you want to worry about is fuel starvation. The Holley Red Electric Fuel Pump is a legendary staple in the VW community for a reason. Designed to provide a constant, pulsation-free fuel flow, this pump is the ultimate upgrade for Beetle, Ghia, and Bus owners who have moved beyond the capabilities of a stock mechanical pump. Whether you are running dual Weber 44 IDFs or a high-flow Kadron setup, the Holley Red ensures that your float bowls stay full even under hard acceleration. Its tumble-polished billet look doesn''t just perform; it adds a professional, high-end aesthetic to your engine bay or chassis mounting location, making it a favorite for both street-strip Volkswagens and show-winning dune buggies.

One of the standout features of the Holley Red 12-801-1 is its "set it and forget it" simplicity. Because it is internally regulated to a maximum of 7 PSI, most carbureted applications will not require an external fuel pressure regulator, reducing complexity and potential leak points in your fuel system. The motor is remarkably efficient, drawing only 2 amps of current, and the rotor/vane design is famously resilient against minor fuel contaminants. This pump is engineered for longevity and serviceability; unlike cheaper "throwaway" pumps, the Holley Red can be completely rebuilt with readily available kits, ensuring your investment stays on the road for decades. If you are tired of vapor lock or the inconsistent pressure of mechanical pumps, this is the robust solution your Volkswagen deserves.

FITMENT

This universal high-performance fuel pump is ideal for the following air-cooled Volkswagen applications and custom builds:

• Volkswagen Type 1 Beetle: 1950 through 1979 (Sedan and Convertible)
• Volkswagen Type 2 Bus/Transporter: 1950 through 1979 (Split Window and Bay Window)
• Volkswagen Type 3: 1961 through 1973 (Squareback, Fastback, Notchback)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 181 Thing: 1973 through 1974
• Custom VW Builds: Dune Buggies, Sand Rails, Meyers Manx, and Trikes
• Engine Compatibility: Optimized for 1600cc to 2332cc+ engines running single or dual carburetors.

SPECS

• Maximum Pressure: 7 PSI (Internally Regulated)
• Free Flow Rate: 97 GPH (Gallons Per Hour)
• Flow Rate at 4 PSI: 71 GPH
• Inlet/Outlet Size: 3/8 inch NPT
• Current Draw: 2.0 Amps
• Recommended Fuse: 7.5 Amp
• Pump Design: Heavy-duty Rotor and Vane
• Finish: Tumble Polished Billet Appearance
• Weight: 2.88 lbs
• Fuel Type: Gasoline only (Not compatible with Alcohol or Methanol)
• Mounting: Includes heavy-duty vibration-dampening mounting bracket
• Serviceability: Fully rebuildable from either the pump end or brush cap end

PRO TIPS

1. Gravity is Your Friend: Mount it Low

Electric fuel pumps are designed to be "pushers," not "pullers." Unlike the stock mechanical pump on your VW engine that has to suck fuel from the tank all the way through the chassis, the Holley Red should be mounted as low as possible and as close to the fuel tank as the application allows. In a Beetle, this usually means mounting it on the front frame head or just behind the front beam. Keeping the pump below the fuel level ensures it stays primed and prevents the motor from overworking, which significantly extends the life of the unit and prevents vapor lock during hot summer cruises.

2. Safety First: Use a Relay and Safety Switch

Never wire an electric fuel pump directly to your ignition switch. For a professional and safe installation, always use a 30-amp relay to ensure the pump gets full battery voltage for maximum efficiency. Furthermore, we strongly recommend installing a Holley Safety Shut-off Switch (Part #12-810). This switch senses oil pressure; if your engine stalls or you are involved in an accident where the engine stops, the switch will automatically cut power to the fuel pump. Without this, the pump could continue to spray fuel in a crash as long as the ignition is on, creating a massive fire hazard.

3. Filtration and Port Sealing

To protect the precision rotor and vane mechanism inside the Holley Red, you must run a high-quality pre-filter (100 micron) between the tank and the pump. This catches tank scale or debris before it can jam the pump. When installing your 3/8 NPT fittings into the pump housing, use a dedicated fuel-rated thread sealant paste rather than Teflon tape. Bits of Teflon tape can easily shred off during installation, find their way into the pump vanes or your carburetor needles, and cause immediate performance issues. Double-check that your fuel lines are at least 5/16" or 3/8" to ensure you aren''t restricting the high-volume flow this pump is capable of delivering.
